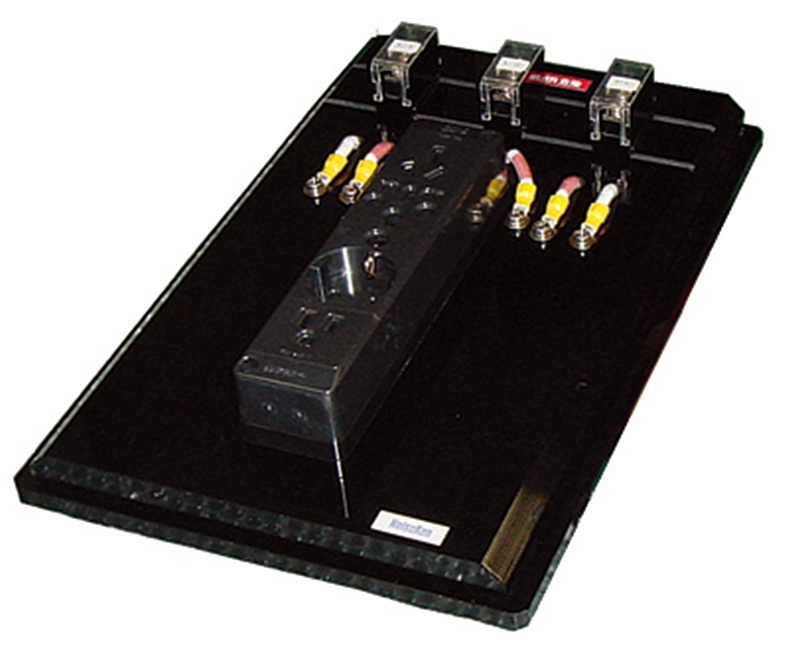

Lightning Surge Simulator (LSS) Terminal Connection Board with Multi-Outlet(3P/5P) MODEL : 18-00048B/18-00058B
A relay terminal board for connecting the output of the LSS-6330 series to the EUT.
By wiring to the included multi-outlet, you can directly connect a power plug that supports the standards of each country.
● Compatible models : LSS-F03 series, LSS-6330 series
Specifications
| MODEL | ||
|---|---|---|
| 18-00048B | single phase 3 lines (withstand voltage 4.5kV) | *Conversion cable (model: 05-00166A) is required for connection with LSS-6330. |
| 18-00058B | three phase 5 lines (withstand voltage 4.5kV) | *Multi-outlet is for single phase. *Conversion cable (model: 05-00167A) is required for connection with LSS-6330. |
