Damped Oscillatory Wave Simulator (SWCS) High Frequency Surge Test
(Burst Waveform) SWCS-931SD
A damped oscillatory wave simulator simulates the fast-repeating, high-frequency noise that occurs when switches turn on and off, and evaluates the resistance of electronic and electrical equipment.
- A maximum output voltage of 1.5 kV
- Repetition frequency variable from 0.4 Hz to 400 Hz
- Output resistance variable from 50 to 200 Ω (10Ω step)

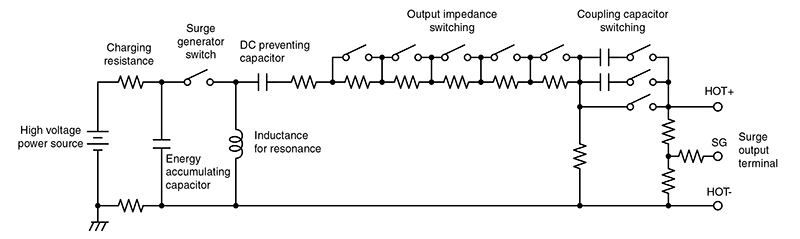

■ Internal Circuit
■ Output Waveform

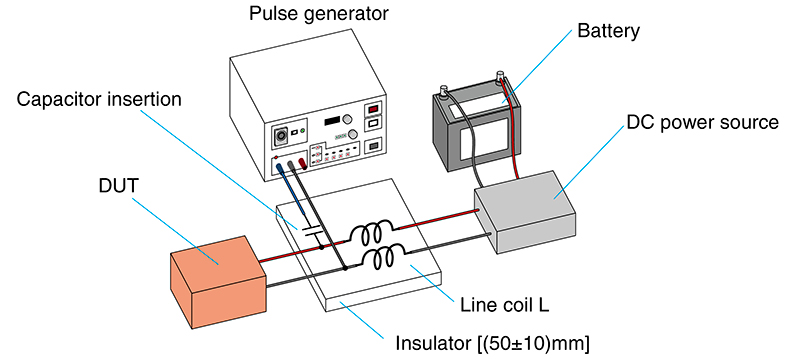

■ Test Setup
Test procedure example using the damped oscillatory wave simulator
① Place the main simulator unit (hereinafter referred to as Main unit) onto the outside of the ground reference plane.
② Connect the standard attached power supply cable to AC in on the backside of Main unit.
③ Connect the connection cables for DUT to HOT terminal and ground terminal on Main unit (insert a capacitor to HOT side), and do the other side of the cables to the testing harnesses. * The connection cables to be prepared by the users.
④ Set the parameters on the controller on the front panel of Main unit and start the test.
Parameter Specification Output waveform Damped oscillatory wave Output voltage 100 V 〜 1500 V Polarity Positive (1st wave) or negative (short bar switching) Oscillatory frequency 1.5 MHz ± 0.2 MHz Time to half-value peak 10μs ± 20 % (0.1 kV 〜 1.0 kV) 10μs ± 40 % (1.0 kV 〜 1.5 kV) Output impedance 50 〜 200 Ω (10 Ω pitch set possible) Repetition cycle 0.4 〜 400 Hz (3-stage switching, continuously variable) Injection time 1s 〜 10min. or continuous Coupling capacitor 100 pF / 470 pF EUT power capacity – Power supply AC 100 〜 240 V 50 / 60Hz Dimensions (W) 430 x (H)200 x (D)400 mm Weight Approx. 7 kg
Item Q’ty Accessories bag 1 pc. Instruction manual 1 volume Power cable 1 pc. Short bar 1 pc.
