Fast Transient Burst Simulator(FNS) EMS Probes Kit MODEL : H2-B

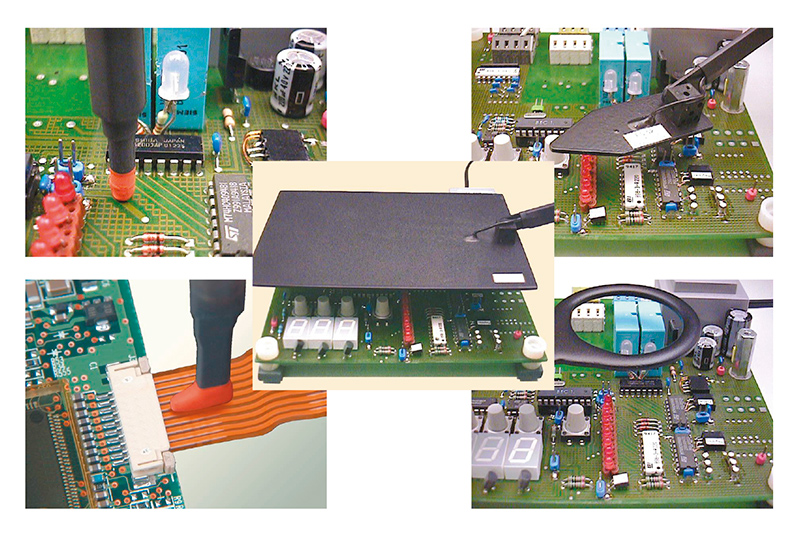

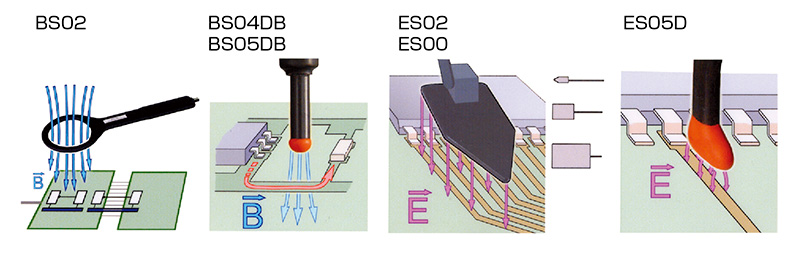

Probes kit to enable the noise injection onto PCB patterns, flat cables, etc. The probes can be selected to use for either electric fields or magnetic fields in order to irradiate in the near field.
Features
○Choose noise radiation points at will on PCB or harness.
○Inject noise either electrically or magnetically by choosing probes.
○Provides 3 each pieces of electric field probe or magnetic field probe in different form and size.
○Weak noise tolerance points can be found with granularity of mm of injection scope.
Contact
Repair, Inspection and Calibration
Customer Service CenterNew Purchase Consultation, Materials Request
Product Inquiry Form
Fast Transient Burst Simulator(FNS) Options
-
Coupling unit (DC600V / 200A for high power capacity)
This tester can be combined with the Fast transient / burst simulator to do the noise coupling test on 3 wires (+ /-/ PE) up to DC600V / 200A.
In combination with FNS-AX4, it is possible to test by switching the discharged phase or setting the sweep discharged phase.
It is possible to evaluate the burst noise immunity when charging EV / PHV vehicles, which is required with ECE R10-05 / 05. (Supports CHAdeMO)
※When using this coupling unit, it needs to modify the tester. For details, please contact us.
Applicable product: FNS-AX4 series -
Coupling Fixture for High Frequency Surge Test
Coupling fixture provided to inject noise to harness in combination with Fast Transient Burst simulator.
The varieties of coupling capacity are lined up. Please contact us for details. -
Warning Lamp MODEL : 11-00008B
Alarm lamp for FNS-AX4 series. Alarm lamp illuminated when high voltage is generated at the time of test. -
Optical USB module MODEL : 07-00022A
Conversion adapter to interface with PC for the remote control of FNS
USB to optical interface. Fiber cable 5m included. -
High power Coupling Decoupling Network
High power Coupling Decoupling Network (CDN) can be provided for customers’ requirements.
Please consult with us for details. -
Coupling Adaptor MODEL:15-00007A (CA-806)
15-00007A (CA-806) makes testing for noise tolerance possible by just clamping interconnection cable of electrical equipment in combination with FNS series. -
Tri-color pilot light MODEL:11-00015A
The light is for FNS-AX4 series. Three colors indicate corresponding simulator's test status change. -
Coupling Adaptor MODEL:CA-805B
CA-805B makes testing for noise tolerance possible by just clamping interconnection cable of electrical equipment in combination with FNS series. -
Coupling Clamp MODEL:15-00018A
Coupling clamp for capacitive coupling test on interconnection lines complying to IEC61000-4-4 Ed.3. In addition, calibration fixture for coupling clamp is available. -
Coupling Clamp MODEL:15-00012A
Coupling clamp for capacitive coupling test on interconnection lines complying to IEC61000-4-4 Ed.3. In addition, calibration fixture for coupling clamp is available. -
Radiation Probes MODELS:01-00006A/7A/8A/9A/10A/31A/50A
Probes for irradiation of noise at wiring on PCB of electronic equipment. Weak noise tolerance points can be detected using the probe. -
Noise Injection Probe MODEL: 01-00034A
○Direct noise injection on a LSI pin makes the board level noise tolerance testing possible.
○Maximum injection voltage up to 500 V.
○Optional coupling capacitor available (Option) -
SG terminal connection plate
A metal plate that connects the tester body SG and the ground plane.
Since it doesn't need to screw it to the ground plane, it is easy to move the tester. -
Normal mode coupling balun MODEL:15-00013A
The product allows injection of test voltage on EUT with Normal mode.
5 kV Max. -
OUTLET BOX (terminal block type)
OUTLET BOX converts LINE output socket. -
OUTLET BOX MODEL:18-00081A/82A/83A
OUTLET BOX converts LINE output socket.
-
Insulating support MODEL : 03-00024A
Keep the EUT and its wirings 10cm afloat above the ground plane
Size: W1200 x D1200 x H100 mm
Material: Wood
Withstanding load: 500 kg -
Cubic insulator block MODEL : 03-00029A
Keep the EUT and its wirings 10cm afloat above the ground plane
Size: W100 x D100 x H100 mm
Material: Wood
4 pcs per set -
Test Environment MODEL : 03-00020A/39A/7A
-
Insulating block MODEL : 03-00054A
Keep the EUT and its wirings afloat above the ground plane
Size: W300 x D300 x H50 mm
Material: foamed polyethylene
5 pcs per set -
SG cable MODEL : 05-00103A
Braided wire cable to connect between SG terminal of the main unit and the ground reference plane.
Length: 0.1 m
-
Connector for Waveform Observation of CDN MODEL : 02-00131A
●This is used to measure the output waveform in the CDN part.
●Target model: FNS-AX3 series -
Attenuator for waveform check MODEL : 00-00017A
Attenuator for measuring high voltage pulse. -
Attenuator for waveform check MODEL : 00-00018A
Attenuator for measuring high voltage pulse.
