Voltage Dip and Swell Simulator / Other Simulators Voltage Dip & Swell Simulator VDS-2002

Used to evaluate performance such as malfunctions and functional deterioration due to power supply voltage fluctuations in electronic and electrical equipment.
Simulates the phenomenon of voltage fluctuations and momentary power failures in commercial power supplies (AC100/200V) and evaluates the resistance of electronic equipment.
In addition to the requirements of the international standard IEC61000-4-11, it is tested in all industries as a tolerance evaluation against voltage fluctuations and instantaneous interruptions for electronic equipment.

Voltage Dip & Swell Simulator VDS-2002 product image

EMC Testing

Features

- Voltage dip & swell simulator conforming to EN/IEC61000-4-11 Ed.3 (2020) Standard
- Multiple types AC plug receptacle on the front panel for easy connection of the EUT
- Easy settings for the test parameters on the front panel (Voltage fluctuation test is performed by software.)
- Realize flexible test conditions setting beyond the Standard with a PC remote control
- Allows to conduct the interruption test in DC (DC 125 V / 16 A max)

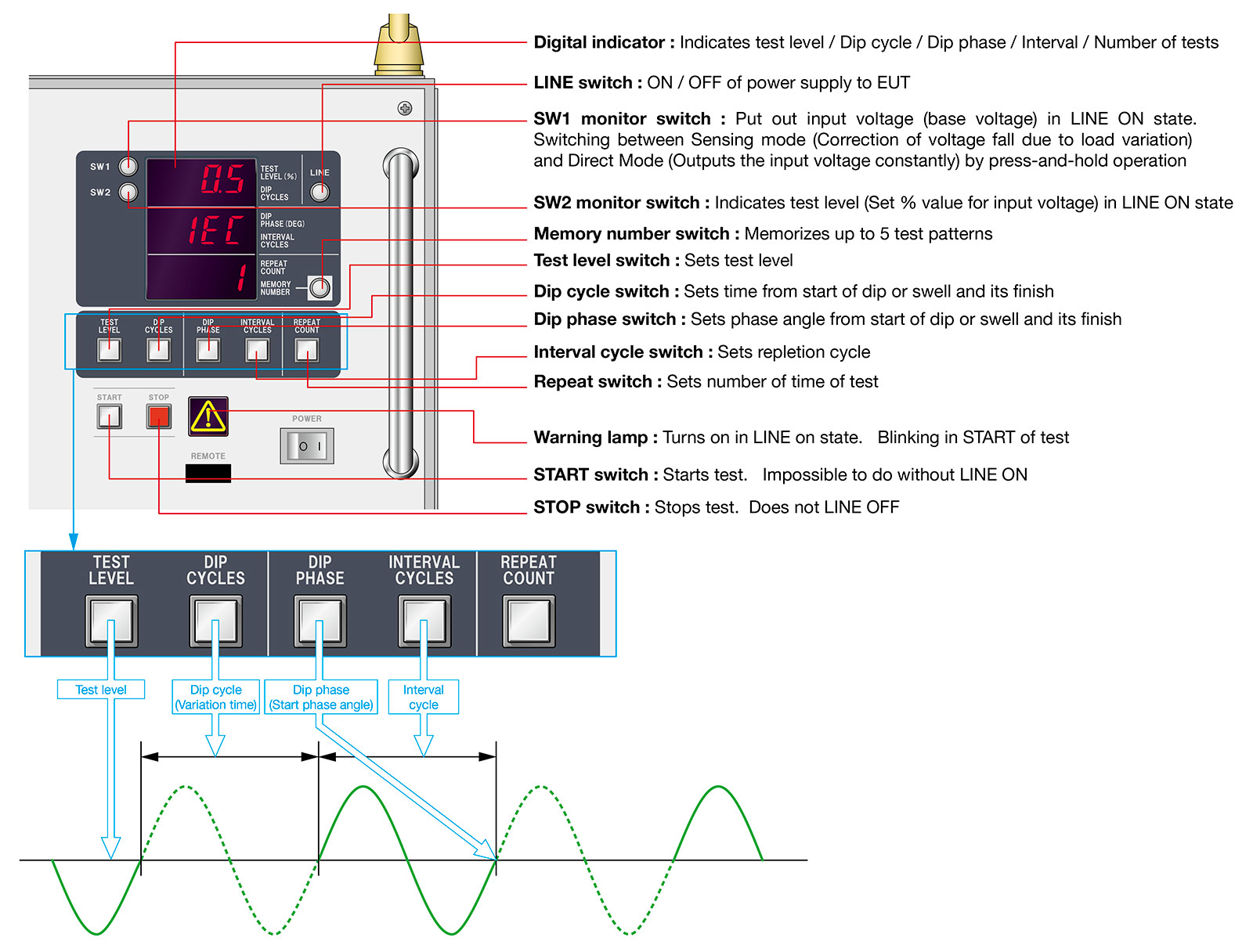

■Front Panel

Specifications

Parameter			Specification
Compliant Standard			IEC 61000-4-11 (1994) 、IEC 61000-4-11 (2004)　at Output voltage 0 to 100%
Number of Phases			Single Phase
Test Modes	AC/DC Voltage Interruption test Sensing, direct mode		Cycle synchronous/asynchronous setting	PC setting	Short/Open modes selection during interruption
	AC/DC Voltage Interruption test Sensing, direct mode		Cycle synchronous setting	Main Unit setting	Short mode during interruption
	AC voltage dip and swell test Cycle synchronous/asynchronous setting		Cycle synchronous/asynchronous setting	PC setting
			Cycle synchronous setting	Main Unit setting
	AC voltage variations test Sensing mode		Cycle asynchronous setting	PC setting Main Unit setting (2s, 1s, 2s setting only)
EUT	Input voltage range		AC90〜264V 50/60Hz, DC0〜125V　※3
EUT	Output voltage range		AC0V〜input voltage+20%, DC0V〜input voltage　AC290Vmax ※2
Output VA rating			4.224kVA　(continuous)
Output current capability	AC	100% of input voltage	16Arms　(continuous)
		80% of input voltage	20Arms　（<5S）
		70% of input voltage	23Arms　（<5S）
		40% of input voltage	40Arms　（<5S）
	DC		16A　(continuous)
MAX Output current capability		AC100〜120V	250A peak Output voltage 100%, <10ms in direct mode
MAX Output current capability		AC220〜240V	500A peak Output voltage 100%, <10ms in direct mode
Load regulated Output voltage variation		100% of input voltage 0 –16 Arms	<5%
		70% of input voltage 0 –23 Arms	<5%
		70% of input voltage 0 –23 Arms	<5%
		100% of input voltage 0 –40 Arms	<5%
Overshoot / undershoot			<5%　100 ohm loaded in the Sensing Mode
Rise time / fall time			1〜5μs　100 ohm loaded

Parameter				Specification
BASE VOLTAGE	Percent Setting	PC setting		(4%)〜120%　percentage with a minimum value of 10V ※1 ※2
	Percent Setting	main unit setting		100%　※1
	Voltage Setting	PC setting		10〜290V　(0V〜input voltage+20%)　5Vstep　※2 arbitrary setting 1V step
	Accuracy			±5V　Output current 0 to 16A
TEST LEVEL	Percent Setting	PC setting	Short/Open selectable for 0%	0〜120%　※1
	Percent Setting	main unit setting	Short/Open selectable for 0%	0, 40, 70, 80, 120%　5V step ※1
	Voltage Setting	PC setting	Short/Open selectable for 0%	0〜290V (0V〜5V step+20%)　5V step　※2　5V step
	Accuracy			±5V　Output current 0 to 16A
REPEAT COUNT	No. of Events setting	PC setting		Output current 0 to 16A
REPEAT COUNT	No. of Events setting	main unit setting		1, 3, 5, 10, 30, 50, 100、or continuous(Cnt)　8 steps
INTERVAL CYCLES	CYCLE Setting	Synchronous	PC setting	0.5〜5000.5 CYCLE　0.5 CYCLE steps
	CYCLE Setting	Synchronous	main unit setting	1, 3, 5, 10, 30, 50, 100, 300, 500 CYCLE、and 10s　10 steps
	s Setting	Synchronous	PC setting	1〜100s　1s steps
	ms Setting	Asynchronous		8.3〜100000.0ms(100s)　0.1ms steps
	s Setting	Asynchronous		1〜36000s(10h)　1s steps
DIP CYCLES	CYCLE Setting	Synchronous	PC setting	0.01〜5000 CYCLE　0.01 CYCLE steps
	CYCLE Setting	Synchronous	main unit setting	0.5, 1, 5, 10, 12, 25, 30, 50, 250, 300 CYCLE　10steps
	ms Setting	Synchronous	PC setting	0.1〜100000.0ms (100s)　0.1ms steps
	ms Setting	Asynchronous		0.1〜100000.0ms (100s)　0.1ms steps
	s Setting	Asynchronous		1〜36000s(10h)　1s steps

Parameter				Specification
DIP PHASE (voltage interruptions, dip starting phase)	PC setting	Synchronous	PC setting	0〜360°　1° steps
	PC setting		main unit setting	0, 45, 90, 135, 180, 225, 270, 315, 360°　9 steps　(45° steps)
	PC setting		PC setting	0〜19.9ms　0.1ms steps　50Hz
	PC setting		PC setting	0〜16.6ms　0.1ms steps　60Hz
Voltage Variations Test	PC setting	Asynchronous	PC setting	0.1s〜10s　0.1s steps　output voltage 0〜120%
Memory capacity			PC setting	Up to 10 tests can be programmed and stored as long as the recording media such as PC HD, FD, etc. allow.
Memory capacity			main unit setting	5 tests
Input voltage from EUT				AC100〜240V±10% 50/60Hz
Interface				Optical interface Optional optical converter RS-232 or USB selection
Operating temperature				15〜35℃
Operating humidity				25〜75%R.H.
External dimensions / Weight				(W)430 x (H)745 x (D)600mm(excluding protrusions) / approx.150kg
Power consumption				120VA　(AC100〜240V 50/60Hz)

※1 : percent against input voltage
※2 : not compliant to IEC 61000-4-11(1994) and IEC 61000-4-11 Ed2 (2004) , ed.3 (2020) Standards when voltage output is >100%
※3 : The input voltage must be free of distortion and voltage variations.
