Electrostatic Discharge Simulator (ESS series) Electrostatic Discharge Fixture
This product is a Fixture for creating and discharging minimum gaps in the contact discharge of an electrostatic test.

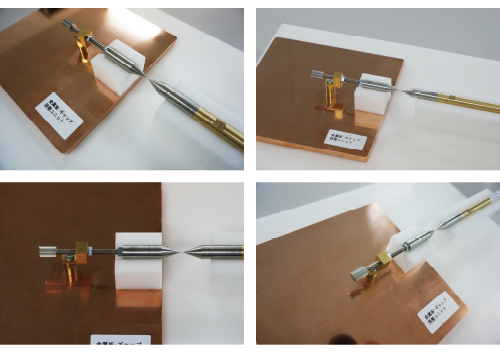

The Fixture consists of a metal parallel board, an insulation plate, a destination discharge tip° (2 pcs.), a discharge tip pedestal (2 pcs.), a metal parallel board connecting rod, and an EUT connecting rod.
The adjustment of the clearance of 7mm between the two conical discharge tips can be adjusted by the user using screws.
