Electrostatic Discharge Simulator (ESS series) Micro-gap Discharge Tip MODEL : 12-00010A
Enabling a more stringent evaluation for the real world ESD immunity

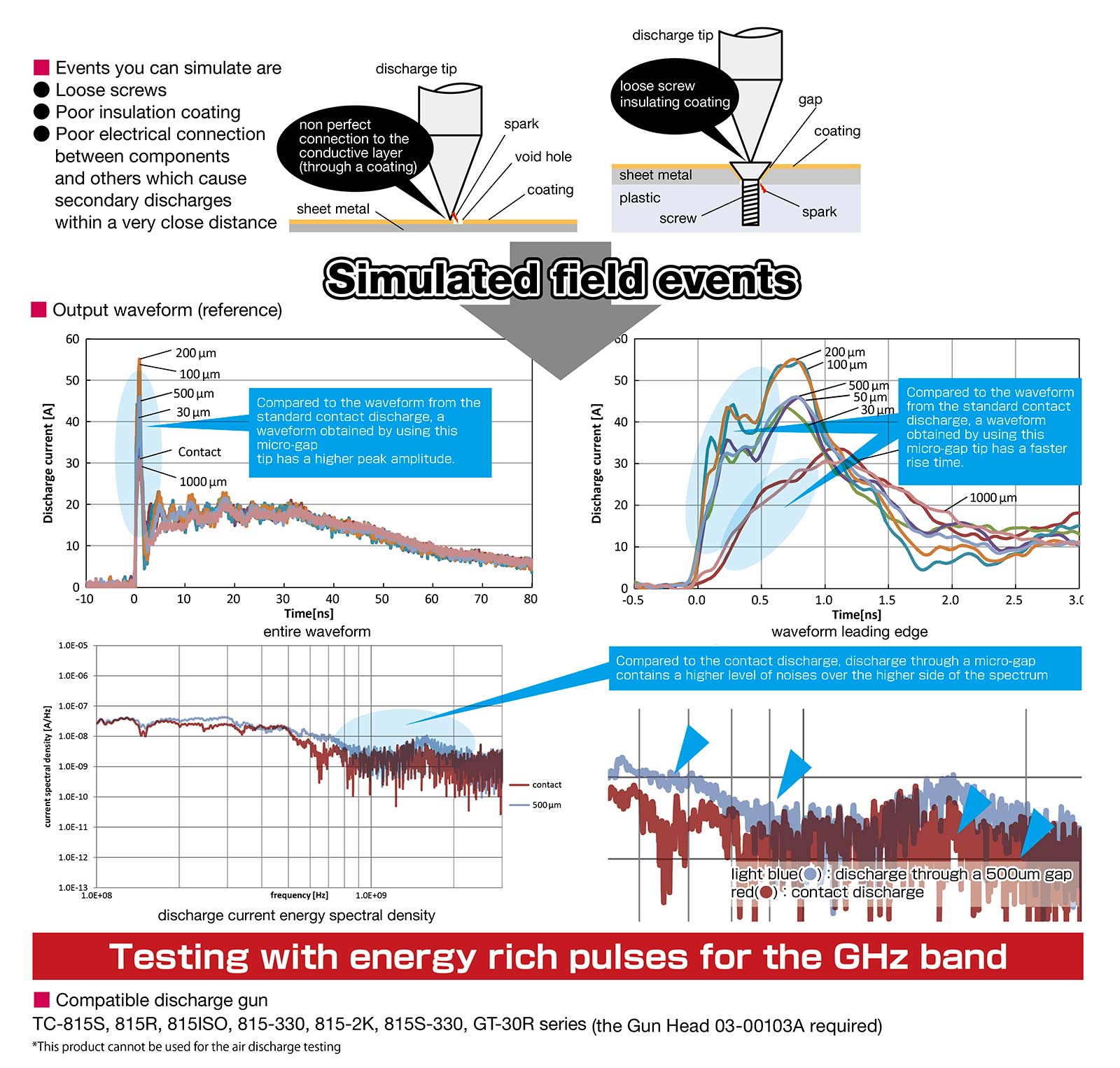

Connected to the NoiseKen ESD gun, this tip allows for a waveform with higher peak amplitude and a faster rise time. It is a common view that ESD immunity testing is the most challenging and passing the standard test does not always assure real world immunity. This tip is helpful for more extensive testing against non-standardized field events
Features
