“Infra-red Remote Controller” standard attached to realize the setting remotely from the generator

Optical conversion adaptor Used for remote control with PC. 5 m of optical fiber cable with USB interface attached.

● Compatible model : ESS-S3011A

Enable to connect warning lamp, automated ESD
eliminator and external trigger simultaneously
● Compatible model : ESS-S3011A

Warning light used for alerting and calling for attention
during the test.
● Compatible model : ESS-S3011A
* The connection is done with DSUB connector.

Holder for discharge gun during the test.
Also, can be the pre-checking fixture in combination between ESS-S3011A and GT-30R series.

● Compatible discharge gun : GT-30R series

This is a holder for holding the discharge gun during testing. When used in combination with the ESS-S3011A, it can also be used as a check fixture for the tester.

● Applicable models: GT-30R series

A magnetic field loop adapter compliant with U.S. Ford standards.
It is used together with an ESD tester and a discharge gun.

Extension cable in connection between ESD simulator main unit and its discharge gun. The length is 3 m
* not compliant with the IEC standard

Adaptor for simulating static induction as one of noise inductive mode with attachment to the discharge gun (Not standardized in the IEC Standard)
●Compatible discharge gun :GT-30R series

Adaptor for simulating electromagnetic induction as one of noise inductive mode with attachment to the discharge gun (Not standardized in the IEC Standard)
● Compatible discharge gun :GT-30R series

This is a CR unit used with the Discharge Gun GT-30R series.

● Compatible models: GT-30R series

* For constants other than those listed, please contact us separately.
* The size of the unit varies depending on the constant of the capacitor (C).

This product is a CR unit without internal capacitors and resistors (dummy type) used in the Discharge Gun GT-30R series.
It provides output with only the first peak and no second peak during electrostatic testing. It can be used for isolating and evaluating countermeasures against malfunction during electrostatic testing.
● Compatible models: GT-30R series

This is the tip cup of a discharge gun used to form the current waveform defined by ISO standards.

We have versions available for the 330Ω test (03-00071A) and the 2kΩ test (03-00072A).

It allows for a more rigorous ESD (electrostatic discharge) resistance evaluation.

This discharge chip has a higher peak discharge current and a faster rise time for contact discharge. ESD testing is said to be one of the most demanding immunity tests, but it can be used as an accelerated test to further improve product quality and to verify the reproduction of unusual ESD phenomena that occur in the field.

This is a case that can hold 8 standard size CR units used with the Discharge Gun GT-3OR series and 4 CR units for 500pF.

● Applicable models: GT-30R series

* This product is a custom specification. Please contact us for details.

This is a case for storing the Discharge Gun GT-30R series.

Realize a faster rise time of the discharge current than IEC 61000-4-2 standard value (0.6 ～ 1.0 ns) around 0.2 x 0.3 ns with attachment to the discharge gun.
(Not standardized in the IEC Standard)

● Compatible discharge gun : GT-30R series

Gun discharge tips

Custom-designed discharge tips are avairable.Please contact us for details.
* Products not subject to IEC standards

Gun discharge tips

Case for storing the GT-31S discharge gun.
Can also store the GT-31S accessory set (GT-ISOSET-A) for performing testing complying with ISO Standard.

A magnetic field loop adaptor, in accordance with U.S. Ford standard, used in combination with an electrostatic tester and a discharge gun.

Adaptor for simulating magnetic field induction, an inductive mode of noise, and is used in combination with an electrostatic tester and a discharge gun.

Adaptor for simulating electrostatic induction, an inductive mode of noise, and is used in combination with an ESD Simulator and a discharge gun.

Conventional discharge guns had a CR unit and a discharge cup attached, but in the GT-31S discharge gun, the CR unit and the discharge cup are integrated in 1 piece as a discharge module.
By replacing the discharge module, testing to IEC 61000-4-2 and ISO 10605 standards is possible.

This case can store the ESS-PS1 static tester and the GT-31S discharge gun.
Can also store the GT-31S accessory set (GT-ISOSET-A) for performing testing complying with ISO Standard.

A stand to fix the discharge gun for testing.
Also used during the pre-check (pre-start inspection).
03-00127A is included in the main unit ESS-PS1 package.

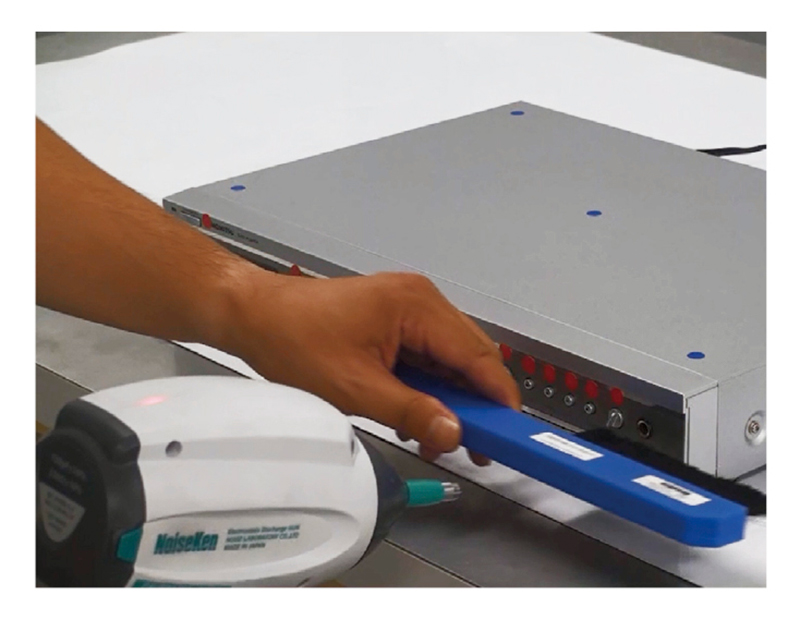

This product is a bendable and flexible attachment for discharge tips.
It enables the application of electrostatic discharge to deep and hard-to-reach locations during static electricity testing.

*Not regulated by IEC standard
*This product is a custom specification product. Please contact us for details.

Custom-designed discharge tips are avairable.Please contact us for details.
* Products not subject to IEC standards

Enabling a more stringent evaluation for the real world ESD immunity
Connected to the NoiseKen ESD gun, this tip allows for a waveform with higher peak amplitude and a faster rise time. It is a common view that ESD immunity testing is the most challenging and passing the standard test does not always assure real world immunity. This tip is helpful for more extensive testing against non-standardized field events

Discharge resistor cable connecting between the vertical coupling plane and the ground plane.

Length: 3m * Includes 2 x 470kΩ.
* IEC 61000-4-2 Ed.2/Ed.3, ISO 10605 Ed.2/Ed.3 compliant

Discharge resistor cable connecting between the horizontal coupling plane and the ground plane.

Length: 1.5m * Includes 2pcs of 470kΩ resistors.
* IEC 61000-4-2 Ed.2/Ed.3, ISO 10605 Ed.2/Ed.3 compliant

Adapter for mounting the discharge gun GT-31S on a free arm probe stand.

Used to fix a discharge gun during ESD testing. The articulated type allows the discharge gun to be oriented and fixed in any desired direction.

*Not standardized in the Standard
Probe stand exclusively for use with the GT-31S discharge gun.

This product is a Fixture for creating and discharging minimum gaps in the contact discharge of an electrostatic test.
The Fixture consists of a metal parallel board, an insulation plate, a destination discharge tip° (2 pcs.), a discharge tip pedestal (2 pcs.), a metal parallel board connecting rod, and an EUT connecting rod.
The adjustment of the clearance of 7mm between the two conical discharge tips can be adjusted by the user using screws.

Metal plane to be placed onto the table in case of the testing to table top devices.
W1600 x D800 x t1.5mm x 1 pc. (Made of aluminum)

Wooden table to be used for the test to devices under test (DUT).
W1600 x H800 x D800 mm

Ground plane to be placed just under the wooden table.
W1800 x D1000 x t1.5 mm x 3 pcs. in 1 set (Made of aluminum)

When doing the electrostatic discharge test to fl oorstanding
equipment, to be used for fl oating the equipment
10cm higher than the ground reference plane.

Size : W 1200 x D 1200 x H 100 mm
Material : Wooden
Withstanding load : 500 kg

Used for floating EUT 10cm upper than the ground plane in case of testing to floor-standing EUT

Size : W100 x D100 x H100 mm
Material : Wood
Withstanding load: 500 kg

These series have excellent attenuation characteristics for impulse noises.
Used for line input insulation during impulse noise testing.

Enable to eliminate electric charge which has been charged to EUT automatically with connection to ESS-S3011A. (Not standardized in the IEC Standard)

● Compatible model : ESS-S3011A

Probe stand to move and fix the discharge gun of ESD Simulator to a desired position, up and down, left or right.
*Not standardized in the Standard
When using discharge gun GT-31S, stand conversion adapter
MODEL: 03-00131A is separately required.

A probe stand used to fix the discharge gun for ESD Simulator. (Not standardized in the IEC Standard) Because of the articulated type, the discharge gun fixes in any direction.

Dimensions : (W) 1450 x (D)650 x (t) 0.5 mm

Dimensions : (W) 540 x (H)1540 x (D) 500mm

Dimensions : (W) 500 x (H)500 x (t) 1.5 mm

Cable to be used for eliminating the ESD on DUT and connect between HCP and GRP
470 kΩ x 2 pcs./1 set.

Sheet to be laid out in between DUT and GRP for the test to automotive electronics devices.

W1450 x D650 x t2 mm
Material: PVC (vinyl chloride) transparent

Blocks to float (isolate) wirings of DUT from GRP.
W300 x D300 x H50 mm, 5 pcs. in 1 set

Plate to be laid out under tires for the vehicle test
W500 x D500 x t1.5 mm

Cable to be used for grounding connection required in ISO 10605 (2001). L2000 x W50 mm
* Not required in ISO 10605 Ed.2 (2008)

Coupling plane used for the optional test in ISO 10605 Ed.2 (2008). It consists of a coupling plane (made of copper) and an insulation block.
* Ground reference plane is not included.

Mat to be laid out in between DUT and GRP for the ESD susceptibility test in the packaging and handling.
Surface resistance 10⁷ x 10⁹ Ω
W1000 x D500 x t2 mm

Adaptor for connecting between Free Arm Gun Stand 03-00022B and discharge gun GT-30R series.

● Compatible discharge gun : GT-30R series

ISO 10605 standard compliant discharge gun package available
By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
Since it is easily replaced the discharge cups and CR units, various CR constants can be tested with a single discharge gun.

ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc.

ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc.

Jig for fixing the discharge gun during waveform verification using a Faraday cage and ESD current target mounting board (03-00052B/03-00118A).

Compatible guns: GT-31S, GT-30R(A), TC-815R, TC-815S

A stand for pulling the ground cable of a discharge gun when observing the ESD discharge current waveform.

(H)700mm

A board and dedicated ground plane for mounting current target in a discharge current waveform measurement environment.

Faraday cage for checking current waveforms as defined in the IEC 61000-4-2 / ISO 10605 standards. Easy to move with the attached casters.

The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard

Dimensions : 1.2 m x 1.2 m

The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for simple measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard. (not conforming to the standard)

Dimensions : 0.6 m x 0.6 m

Load resistor to measure, verify and calibrate ESD current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard

Faraday cage which is defined in IIEC61000-4-2 Standard and ISO 10605 Ed.2 Standard to verify the discharge current waveform. Easy to move with casters equipped to the bottom.

Attenuator to protect measurement equipment for ESD current waveform.
Attenuation ratio 20 dB

High frequency responsible cable to connect ESD target and oscilloscope
BNC-SMA connector (02-00133A) is also available as an option

Set to calibrate the ESD target (06-00094A) in conformance with IEC61000-4-2 Ed.2.0 (2008).

Fixture to load and fix the discharge gun to the Faraday cage (FC-200) or current target mounting board (03-00052B)

Stand to pull and fix the ground cable of discharge gun 0.5 m backwards at the middle of the cable when calibrating the ESD current.

For measuring the hold time and output voltage of electrostatic testers
