Impulse Noise Simulator (INS Series)   Radiation Probes MODEL : 01-00006A / 7A / 8A / 9A / 10A / 31A / 50A

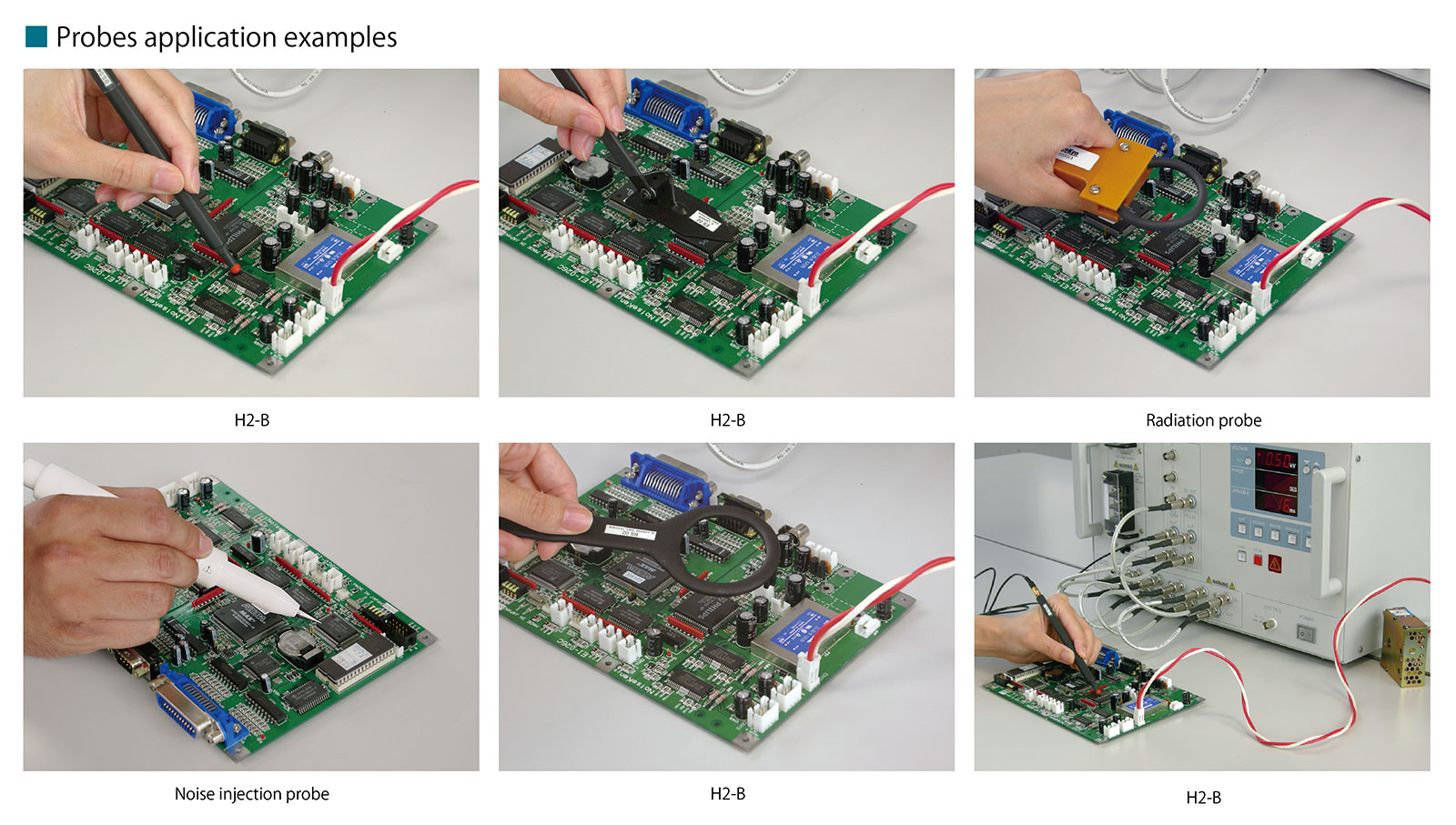

These probes, in combination with Impulse Noise Simulator allows to emit electromagnetic field radiation noise
to the wiring of PCB inside electronic equipment, and is used to search for areas vulnerable to radiation noise.
Features
Specifications
Parameter Specifications Input voltage 4000V Max Input pulse width 50~1000ns (1μs) Loop diameter 01-00006A : φ50mm, 01-00007A : φ75mm, 01-00008A : φ100mm, 01-00009A : φ150mm,
01-00010A : φ200mm, 01-00031A : 250mm, 01-00050A : 30mmCable length Approx.2m Weight Approx.180g~220g Termination Resistance N/A Contact
