Impulse Noise Simulator (INS Series) Automatic CDN for Impulse Noise Simulator IJ-AT450

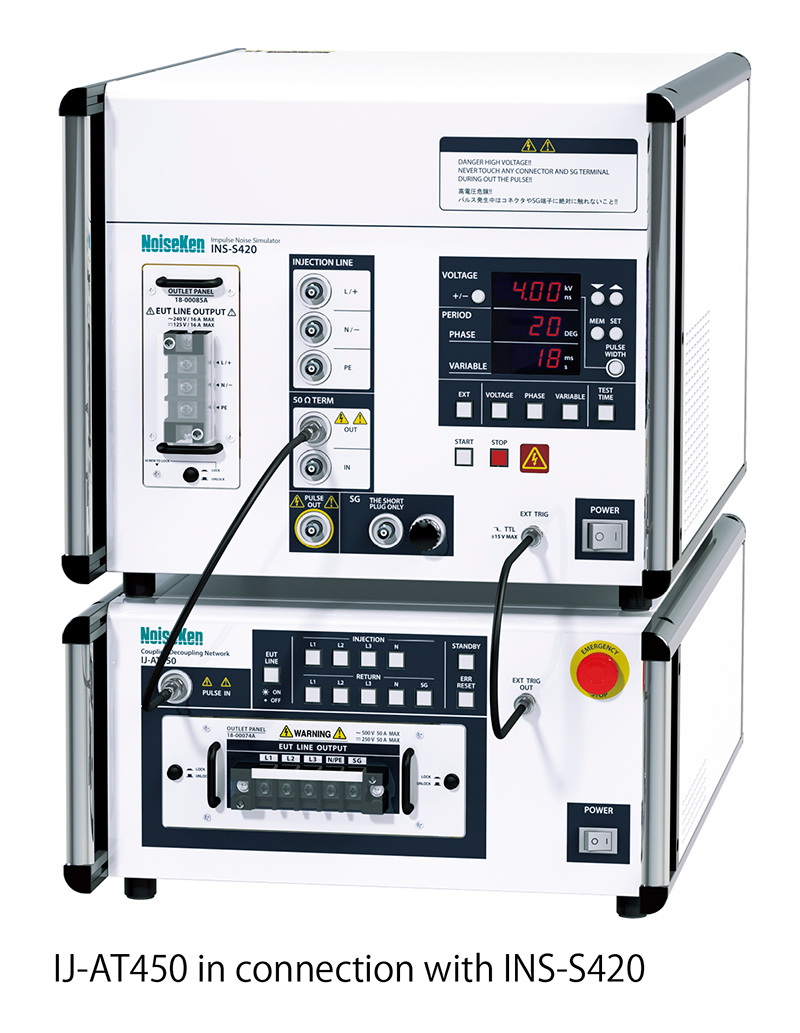

Automatic CDN for Impulse Noise Simulator (Model:IJ-AT450) is a superposition unit allowing testing to 3-phase AC lines and high-voltage DC lines by combining with the Impulse Noise Simulator. By performing remote control from Windows PC using dedicated software, the tester can automatically perform the test such as setting of voltages and applied phase, as well as sequence control.
Features
Features
read more
- Tests can be performed on three-phase four-wire lines up to AC500V/50A.
- Testing to DC-lines up to DC250V/50A is also possible.
- EUT line switch allows the AC/DC line to be shut off.
- Emergency stop switch to stop the test in case of emergency.
Easy switching of application phase / Setting time reduced

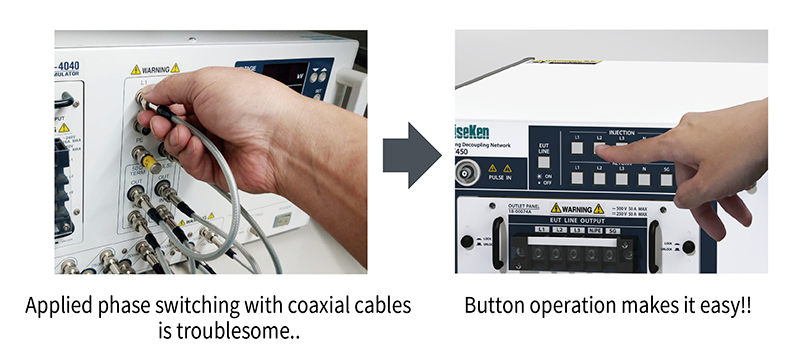

read moreIn the old model, setting the applied phase was troublesome requiring manual switching using the dedicated coaxial cables and short-plug.
In the old model, setting the applied phase was troublesome requiring manual switching using the dedicated coaxial cables and short-plug. IJ-AT450 simplifies switching and reduces setting time and helps avoid connection errors.
Connection simplified / Connection time reduced
read more

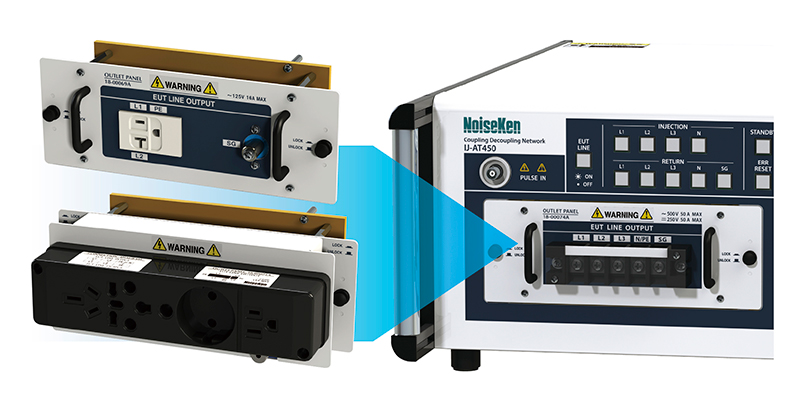

Outlet panel was adopted for easier EUT connection and conducting the test.
Remote control / Testing automation reduces testing time and man-hours

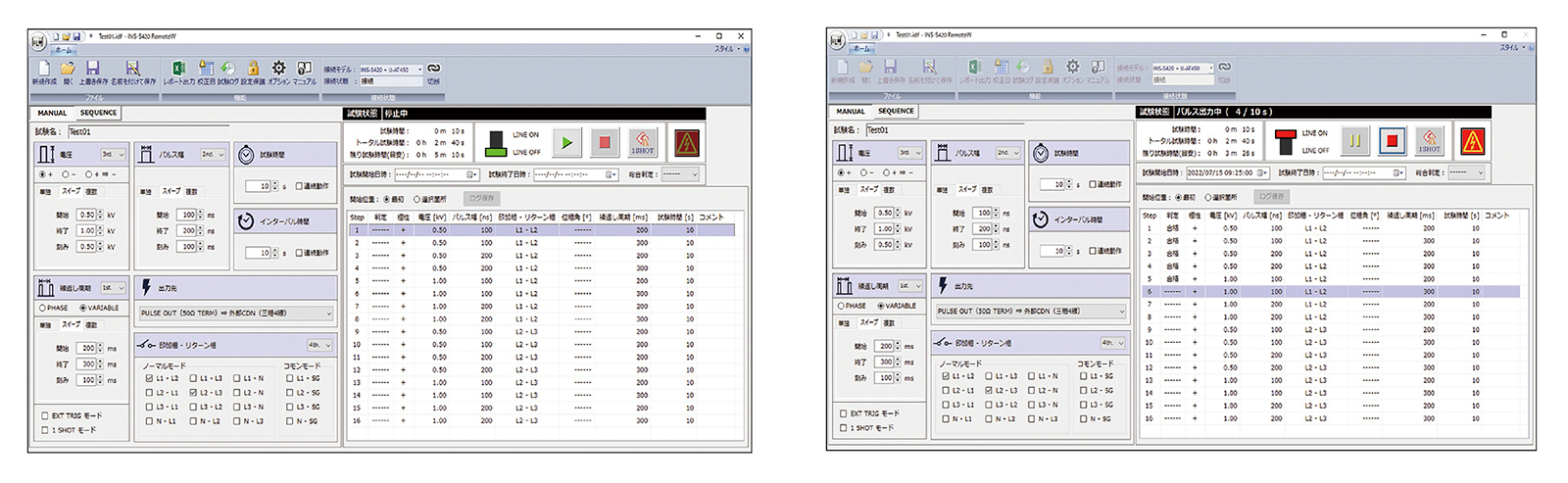

read moreUsing remote control software, in addition to test parameters such as pulse output voltage, pulse width, polarity, and repetition period, the application mode (common/normal) and applied phase can be set, and the test conditions can be controlled in sequence.
Using remote control software, in addition to test parameters such as pulse output voltage, pulse width, polarity, and repetition period, the application mode (common/normal) and applied phase can be set, and the test conditions can be controlled in sequence. This reduces the time and effort required to change the wiring during testing and contributes to shortening the testing time and reducing the number of man-hours.
ポップアップタイトル
closeSpecifications
| Parameter | Specifications |
|---|---|
| Input pulse voltage | 4kV terminating resistance 50 Ω is connected |
| EUT power capacity | AC: 3-phase, 4-wire (L1, L2, L3, N) 500V / 50A DC:250V / 50A |
| Input and output terminals | Input terminal: Terminal block Output terminal: Terminal block panel |
| High voltage coaxial connector | NMHV type *Noiseken custom |
| Superimposed phase switching | Switching by selection operation *Switching by the front switch of the main unit or remote software. |
| Zero Cross Detection | Detected from between L1-L2 |
| Line protection circuit | Mounted with shut-off circuit device *Connectable/releasable input and output |
| Emergency stop | Built-in mushroom-type switch for push-lock and rotation-release |
| External control | Remote control from PC with optical I/F circuit |
| Power supply | AC100～240V 50Hz/60Hz |
| Operating temperature /humidity | Temperature: 15 to 35° Humidity: 25 to 75% |
| Dimensions/weight | (W)430 x (H)199 x (D)540mm (protrusions excluded) / Approx. 24kg |
| Accessories | BNC coaxial cable (02-00159A): 1pc, high-voltage coaxial cable (02-00160A): 1pc, AC cable: 1pc, SG cable (05-00172A): 1pc, outlet panel (18-00074A): 1pc, instruction manual: 1 volume, accessories bag: 1pc. |
