INS-S420 Remote Control Software INS-S420 RemoteW MODEL : 14-00062A

Impulse Noise Simulator (INS Series) INS-S420 Remote Control Software INS-S420 RemoteW MODEL : 14-00062A

INS-S420 RemoteW（Model：14-00062A）is a dedicated software for remote control of INS-S420 or INS-S420 & IJ-AT450.
Using this software, you can set the application mode as well as test parameters such as pulse output voltage, pulse width, phase angle and repetition period. Test conditions can be controlled in sequences, which contributes to reducing the test time and man-hours.

EMC Testing

Features

Features
read more
Features
- Manual tests can be performed by setting test parameters such as pulse output voltage, pulse width, phase angle, repetition period, and test time.

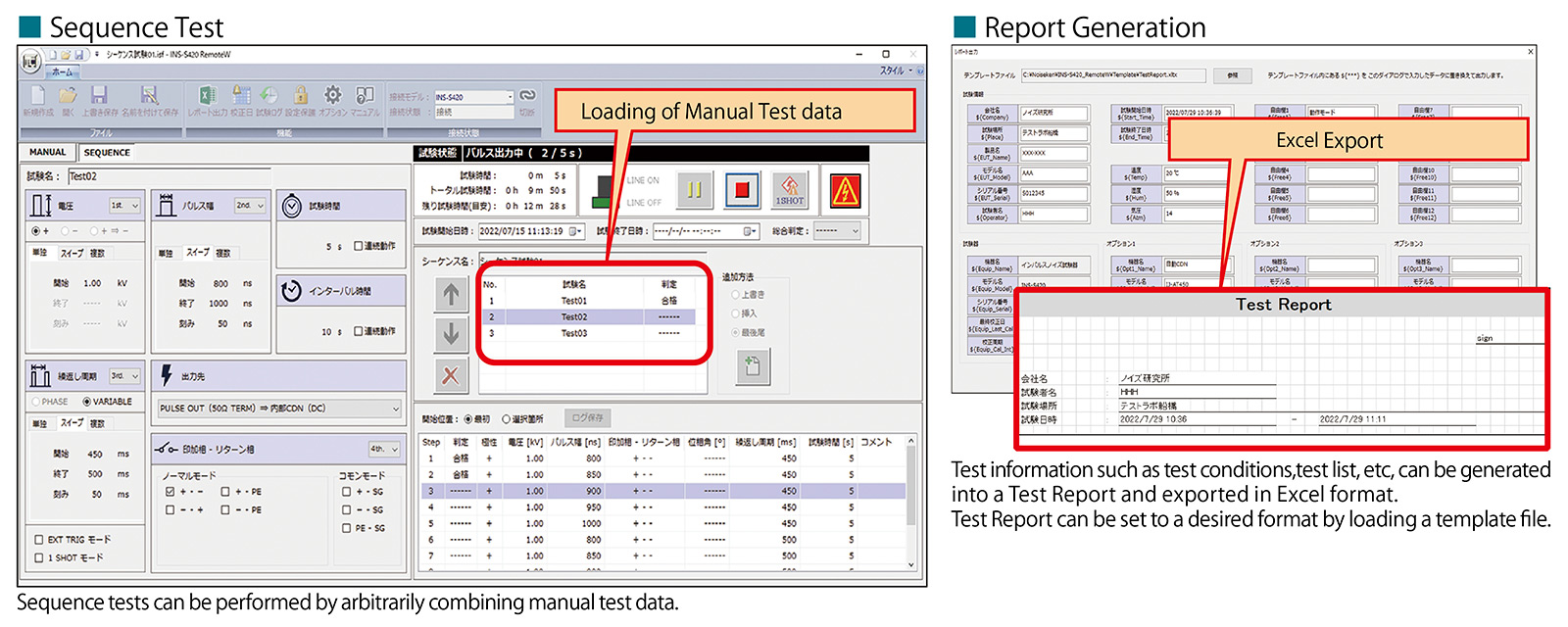

- Sequence tests can be performed by arbitrarily combining manual test data.
- Test information such as test conditions, test list, etc, can be generated into a Test Report and exported in Excel format.

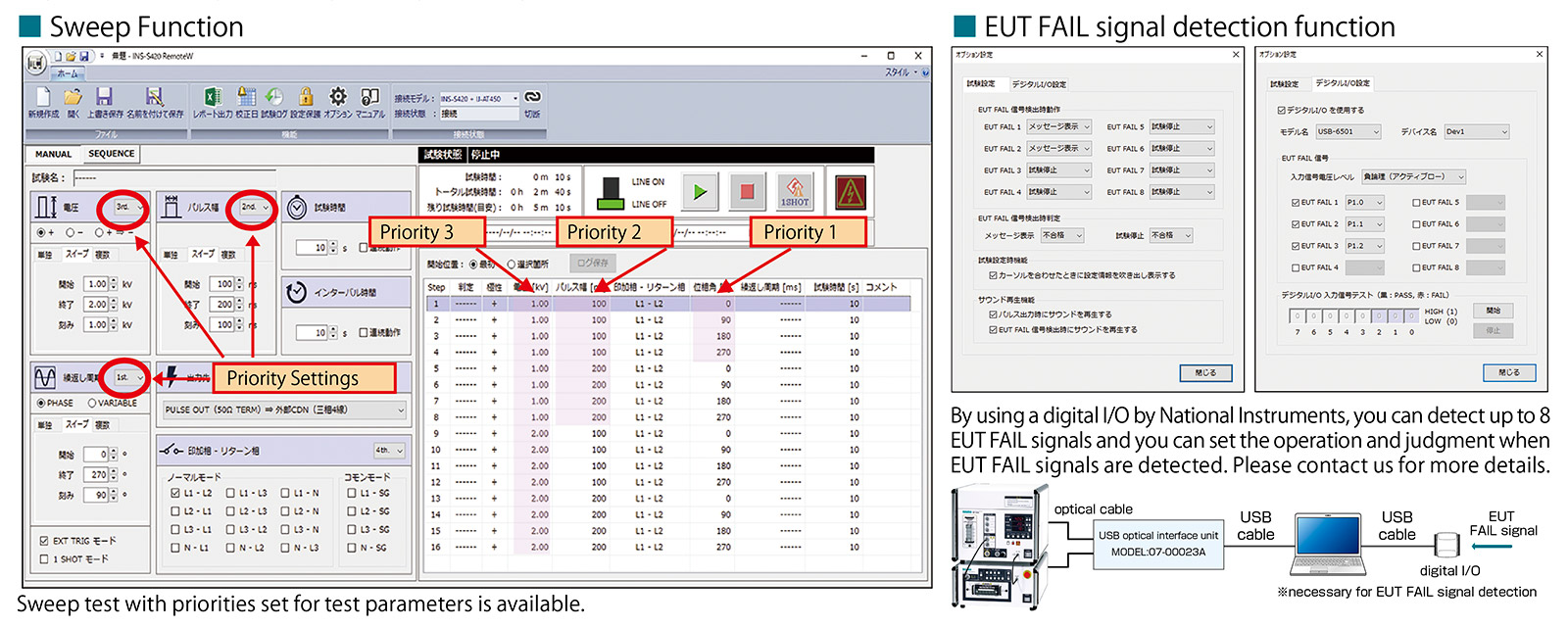

- EUT FAIL signal detected using digital I/O.
- Compatible with Windows 10,11 64 bit versions with English and Japanese supported languages.
- Various settings data can be protected by the “Settings Protection” function.
Hardware Configuration

read more
Hardware Configuration
【PC Remote control of INS-S420】
Allows controlling the pulse output voltage, pulse width, phase angle and repetition period of the Simulator’s main unit, however application phase and return phase switch control is not available.

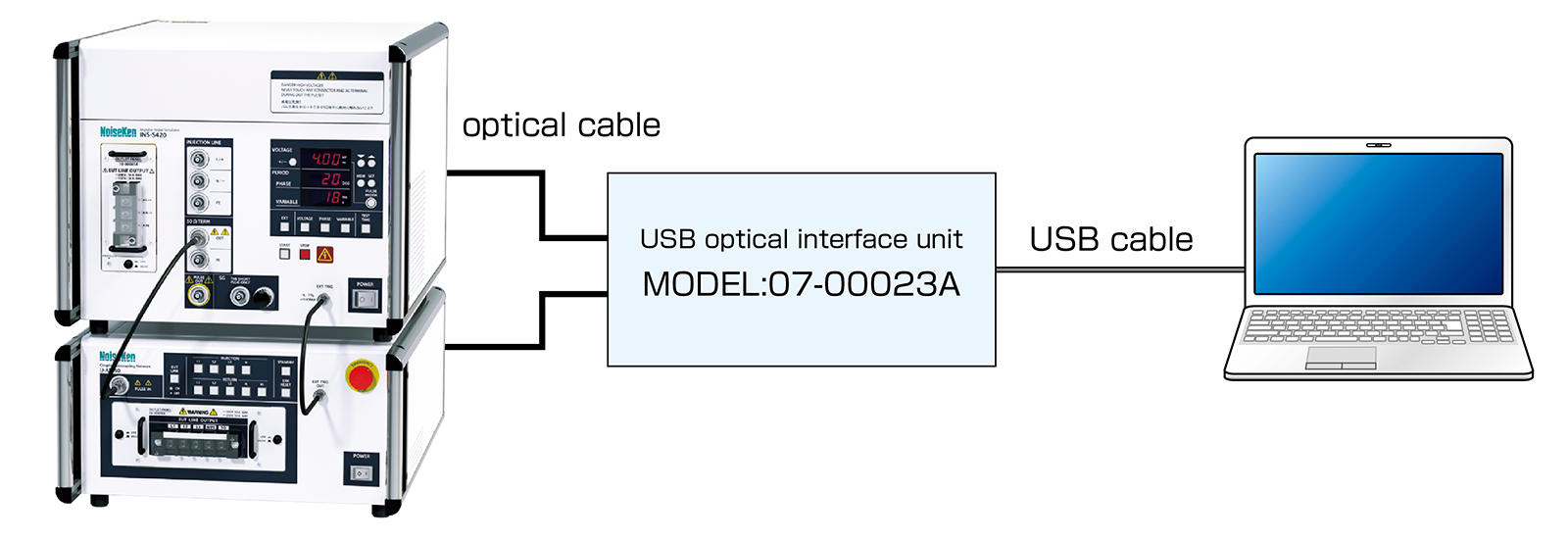

【PC Remote control of INS-S420 & IJ-AT450】
Allows controlling the pulse output voltage, pulse width, phase angle and repetition period of the Simulator’s main unit, and also application phase and return phase switching and EUT LINE ON/OFF control is available.

Software System Requirements

Parameter	Specifications
OS	Windows 10, 64bit（English or Japanese ver.） Windows 11, 64bit（English or Japanese ver.）
CPU	Dual-Core over 2.4GHz or better recommended
RAM	8GB or more recommended
Storage	5GB available free space
Display	1920×1080 pixels (FullHD) or more recommended

【Attention】

〇 Operation is not guaranteed when using software on cloud services or using online storages.
〇 For correct “Report Export” function, be sure to have installed Microsoft Excel compatible with the OS and within the support period. (Please use the Desktop version, not the Store App version.)
〇 Optical USB Interface unit is required (models 07-00022A or 07-00023A).
〇 Available USB ports required.
(2 USB ports required. In case of using Digital I/O – 3 USB ports required.)
〇 CD-ROM or DVD-ROM drive required for installing drivers for the Optical USB Interface.
