Impulse Noise Simulator (INS Series) Attenuator for waveform check MODEL：00-00017A
Attenuator for measuring high voltage pulse.
Specifications
| Parameter | Specifications |
|---|---|
| Attenuation rate | DC～2GHz：40dB（100：1） |
| Input pulse peak voltage | 4000V MAX |
| Tolerable continuous pulse examples | Pulse width : 50ns~1000ns Pulse repetition frequency : Max. 60Hz at 4000V output; Max. 100Hz at 2000V 1 hour continuous use |
| Input impedance | 50Ω (50Ω±1% at DC) |
| Output impedance | 50Ω (50Ω±1% at DC) *If using an oscilloscope with high input impedance (1 MΩ), a 50 Ω termination is required. |
| Interface connectors | INPUT：HN(F) OUTPUT：N(F) |
| Dimensions/ Weight | (W)154.5mm x (D)105mm x (H)37mm / Approx 1350g |

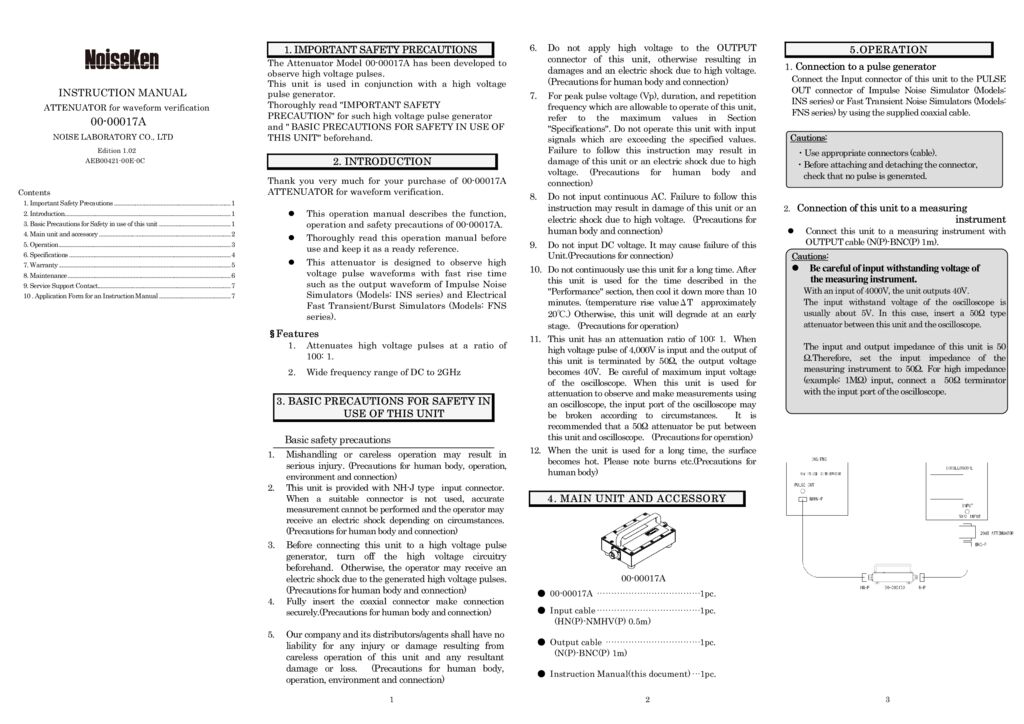

| Accessories | Input cable (HN(P)-NMHV(P) 0.5m) 1pc., Output cable (N(P)-BNC(P) 1m) 1pc., Instruction Manual 1pc. |
