Automotive Transient Surge Simulator(ISS/JSS) Pulse 2b / 4 Generator BP4610
Pulse 2b : Simulates transients from DC. motors acting as generators after the ignition is switched off.
Pulse 4 : Simulates supply voltage reduction caused by energizing the starter-motor circuits of internal combustion engines, excluding spikes associated with starting.
Features
- Compliant tests to ISO 7637-2 (2011) Standard (Pulse 2b generator)
- Compliant to ISO 7637-2 (2004) Standard pulse 4 generator
- ± 60 V 10 A DC – 150 kHz bipolar amplifier built-in.
- Works as a power source replacing an external battery for testing with the other pulses.
- Expandable to be 15 A or 30 A upon addition of an optional external power supply.
* Requirement of 100 A / 200 A can be responded upon request.

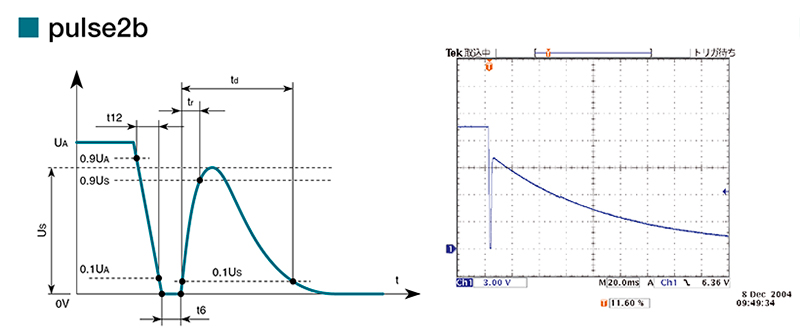

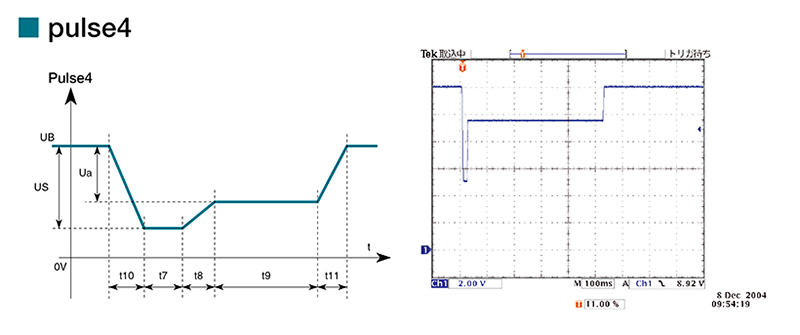

* Optional software shall be necessary for putting Pulse 2b / 4 out.■Output Waveform
Specifications
Parameter Specification Pulse 2b UA, Us* 0 V 〜 60.0V ± 10% ± 0.5 V 0.1 V step Ri 0 Ω 〜 0.05 Ω Td 0.1s, 0.2s ,0.5s ,1s ,2s ,4s ±20% t12, tr, t6* 1ms ,2ms ,5ms ±50% Pulse 4 UB 0 V 〜 60.0 V ± 10% ± 0.5 V 0.1 V step Us, Ua 0 V 〜 -UB ± 10% ± 0.5 V -0.1 V step Ri 0Ω 〜 0.02 Ω (at shipment) t7, t8 ,t10 ,t11* 1ms 〜 999ms ± 10% 1ms step t9 0.1s 〜 99.9s ±1 0% 0.1s step Dimensions (W)430 x (H) 177 x (D)550 mm Weight Approx. 26 kg
Power consumption 1200 VA*Each parameter can be set individually.
