FORD Standard Transient Pulse Generator ISS-T1321

Automotive Transient Surge Simulator(ISS/JSS) FORD Standard Transient Pulse Generator ISS-T1321

Simulator to generate Transient Pulse as required in FORD's EMC standard (EMC-CS-2009) for surge test onto automotive electronic devices. The generation waveforms are Pulse A1 / A2-1 / A2-2 / C1 / C2 surges standardized as RI130 & CI220, and Waveform F fluctuation standardized as CI260.

FORD Standard Transient Pulse Generator ISS-T1321 product image

EMC Testing

Features

Specifications

■Basic specifications

Parameter	Specification
DC Max Input Voltage	DC 13.5 V
DC Max Output Current	10 A・50 A (depends on waveform selection)
DC Input Breaker	50 A
Test Timer	1 〜 999S (memorizes last test settings for up to 3 months)
Switching Relay	KUP-1415-12 (by Potter & Brumfield) displays the relaying accumulation * replacement recommended after 100 hours.
Emergency Stop	Red colored mushroom shape type. (push-lock-turn-reset type) Pulse output stop / DC output stop.
Power supply	AC 100 V–AC 240 V ± 10 % 50 VA
Dimensions	Approx. W430 mm x D322 mm x H 200 mm (protrusion excluded)
Weight	Approx. 12 kg

■Output waveform and Current value

Test item	Output waveform	Mode	Required injection time *1	Max output current	Output termina
RI130	A2-1	2	60s	*2	C, D terminals(BNC terminals)
	A2-1	3
	A2-2	2
	A2-2	3

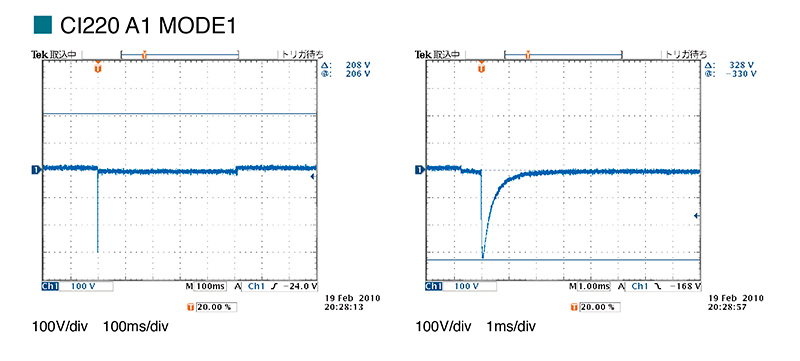

CI220	A1	1	120s	10	DC LINE OUT (C, D terminals are short circuited)
	A1	2	20s

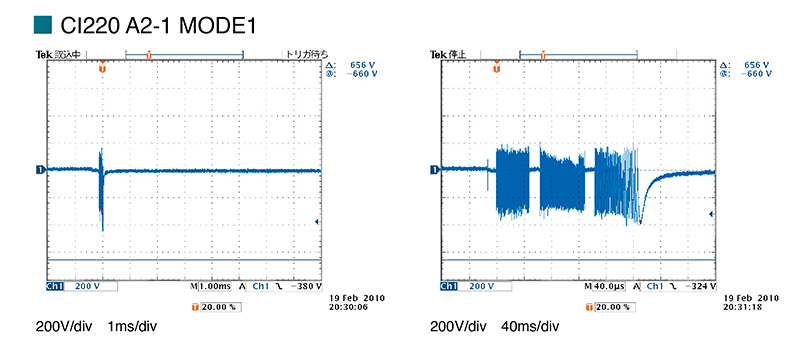

	A2-1	1	20s
		2

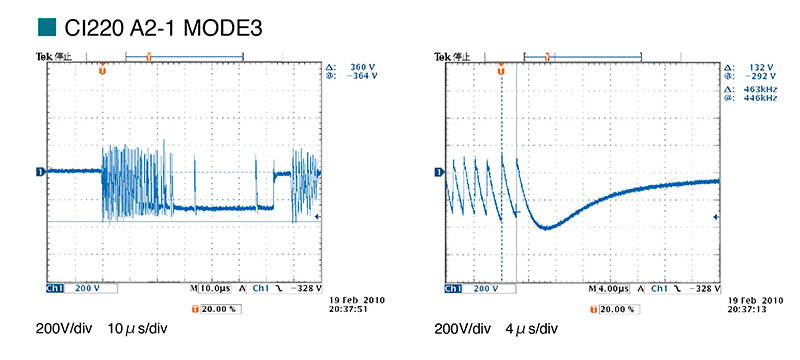

		3

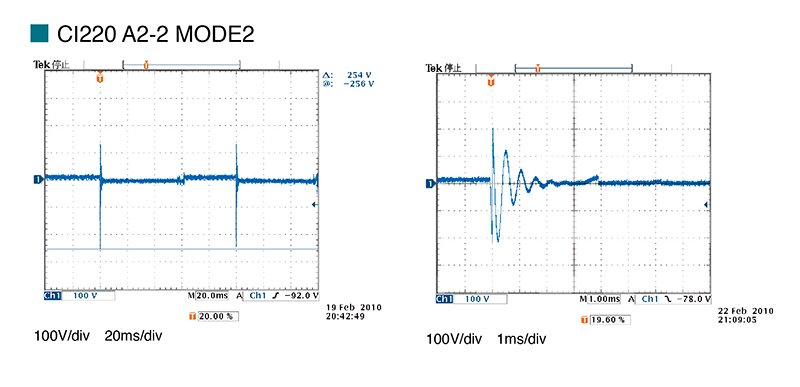

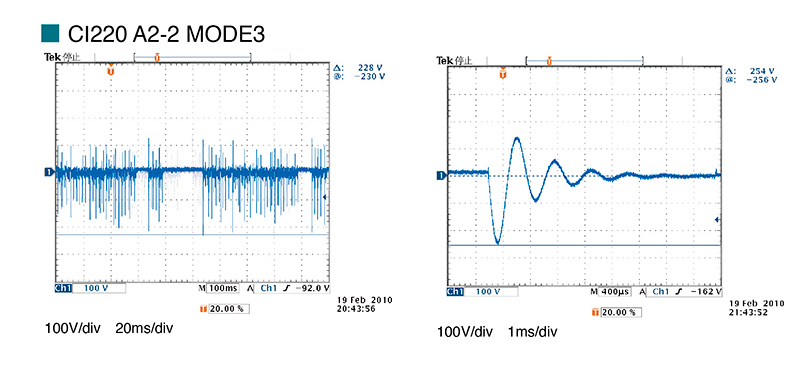

	A2-2	2
	A2-2	3

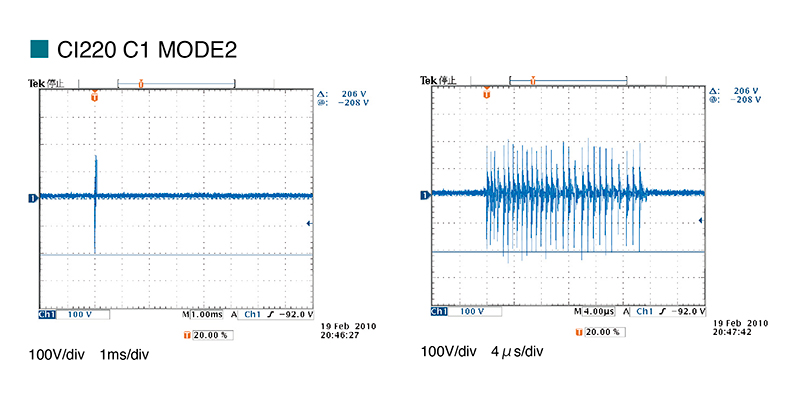

	C-1	2	20s	50

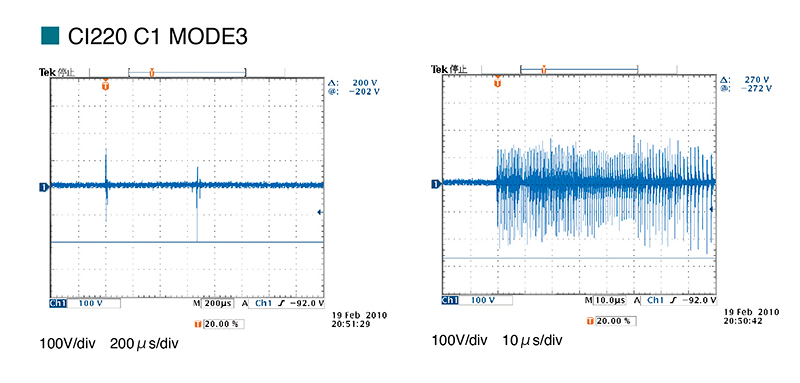

	C-1	3

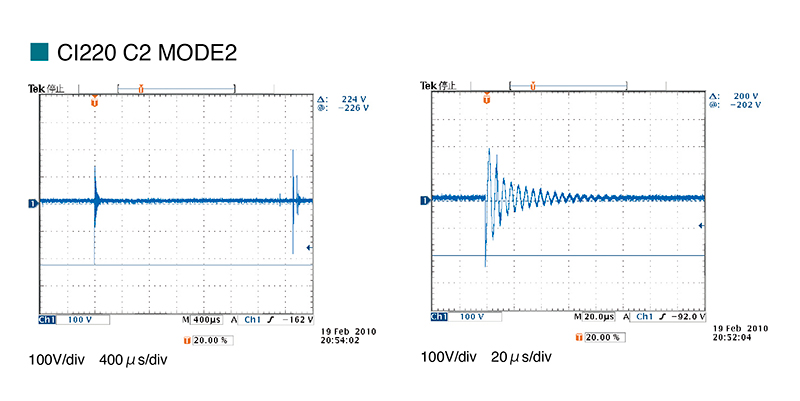

	C-2	2

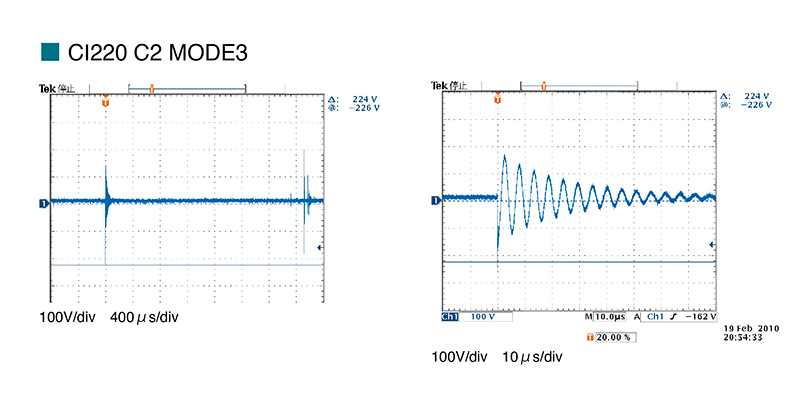

	C-2	3

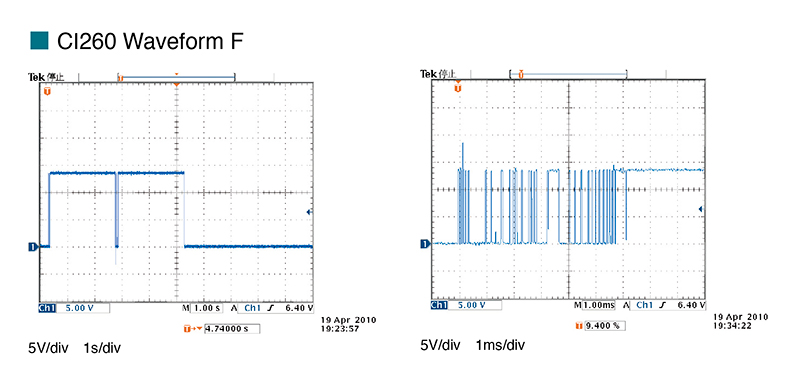

CI260	Waveform F	—	60s	10	DC LINE OUT (C, D terminals are open)
