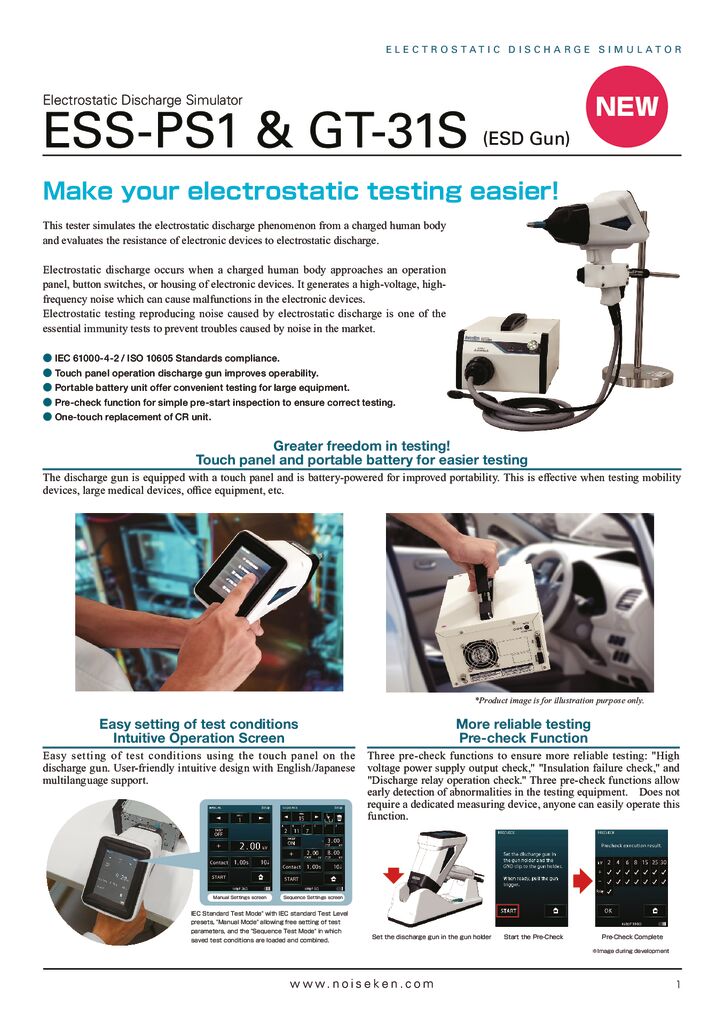

Electrostatic Discharge Simulator (ESS series) ESD Simulator ESS-PS1 & GT-31S

Make your electrostatic testing easier!

This tester simulates the electrostatic discharge phenomenon from a charged human body and evaluates the resistance of electronic devices to electrostatic discharge.
Electrostatic discharge occurs when a charged human body approaches an operation panel, button switches, or housing of electronic devices. It generates a high-voltage, highfrequency noise which can cause malfunctions in the electronic devices.
Electrostatic testing reproducing noise caused by electrostatic discharge is one of the essential immunity tests to prevent troubles caused by noise in the market.

ESD Simulator ESS-PS1 & GT-31S product image

EMC Testing

Features

Features
● IEC 61000-4-2 / ISO 10605 Standards compliance. ● Touch panel operation discharge gun improves operability. ● Portable battery unit offer convenient testing for large equipment.
read more
● IEC 61000-4-2 / ISO 10605 Standards compliance.
● Touch panel operation discharge gun improves operability.
● Portable battery unit offer convenient testing for large equipment.
● Pre-check function for simple pre-start inspection to ensure correct testing.

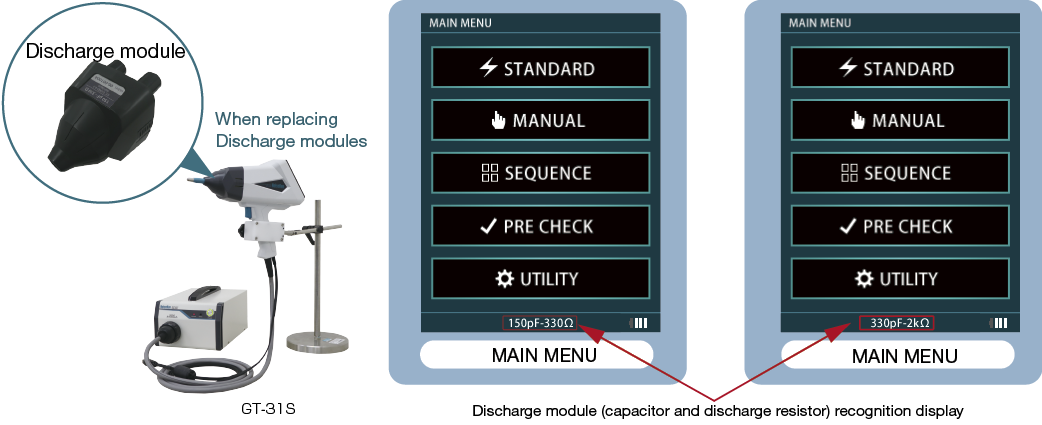

● One-touch replacement of CR unit.
Greater freedom in testing！

Touch panel and portable battery for easier testing
read more

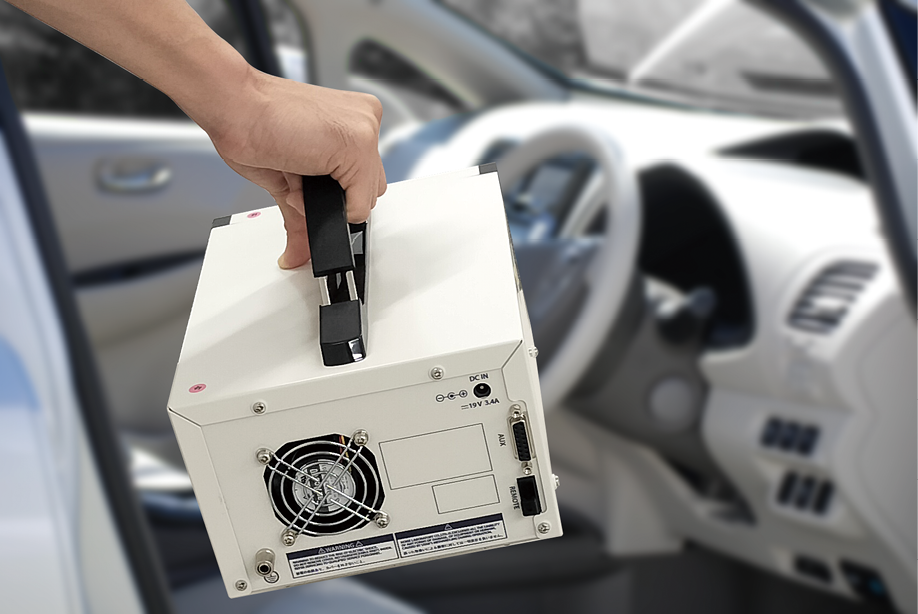

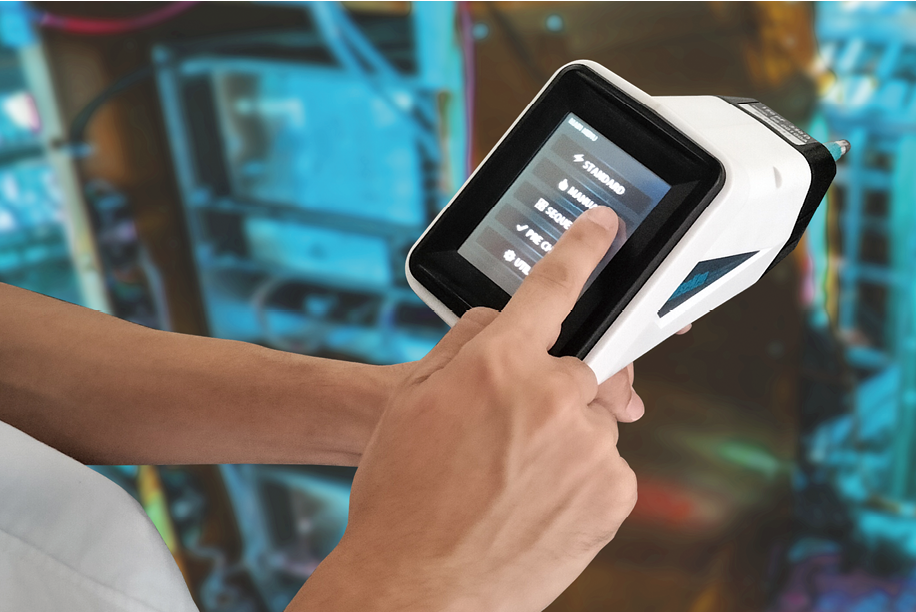

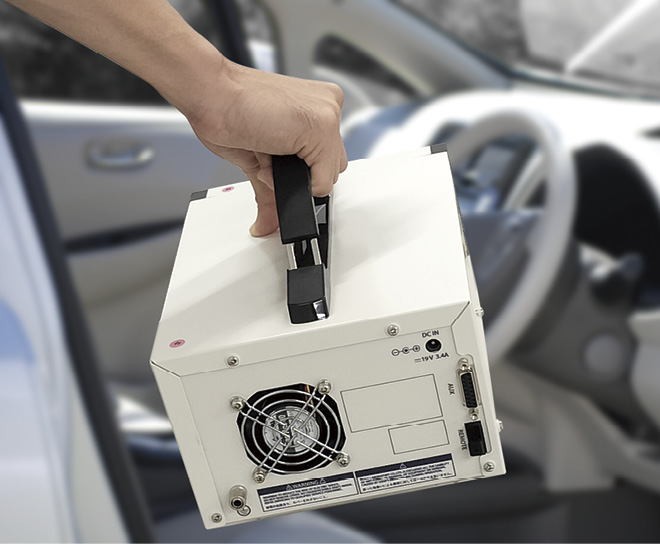

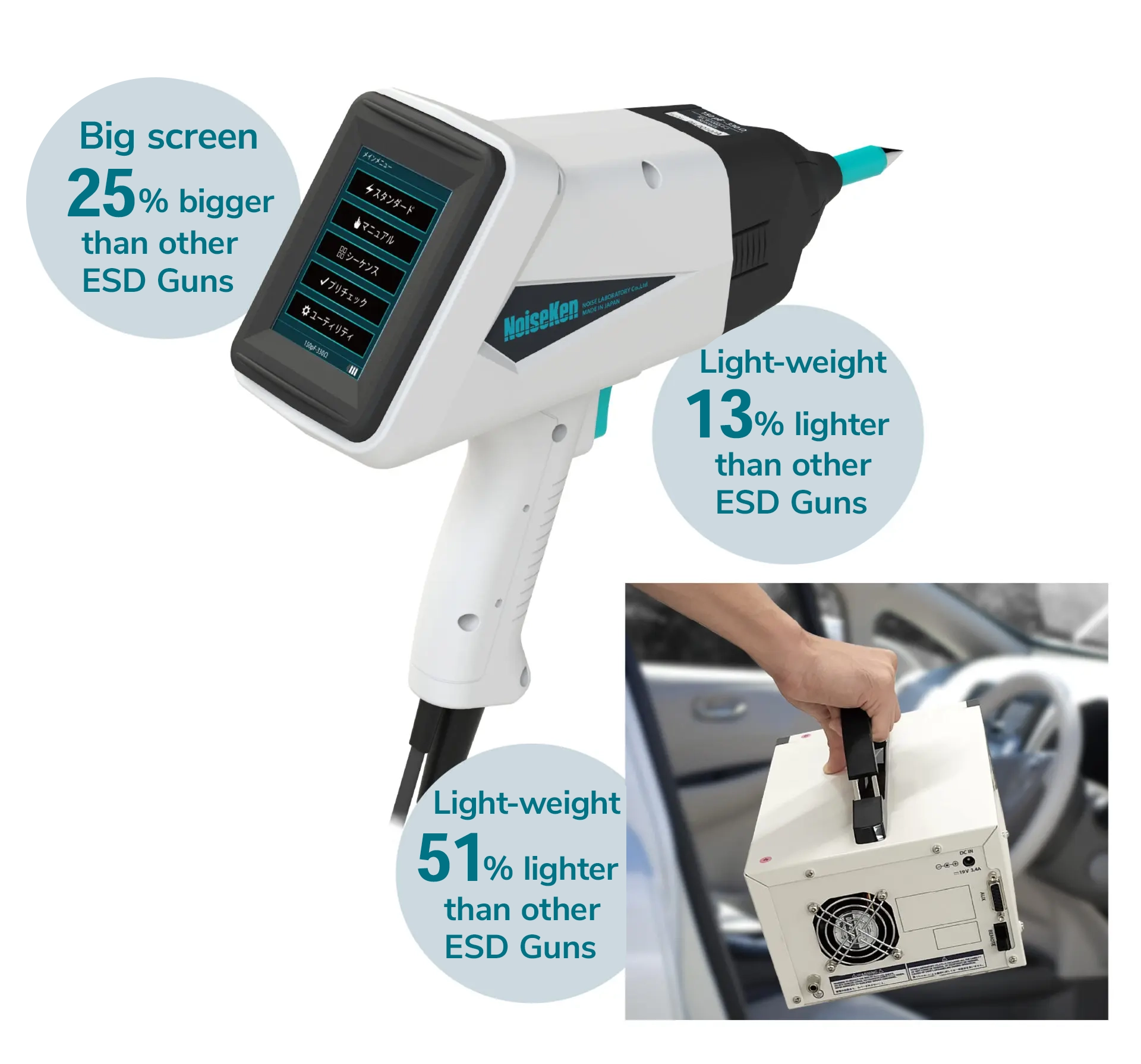

The discharge gun is equipped with a touch panel and is battery-powered for improved portability.
This is effective when testing mobility devices, large medical devices, office equipment, etc.
　
Easy setting of test conditions

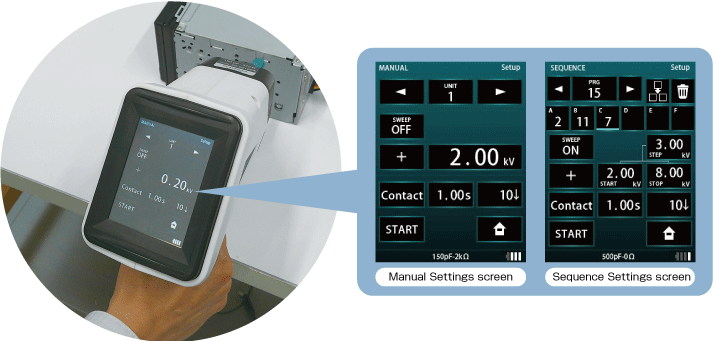

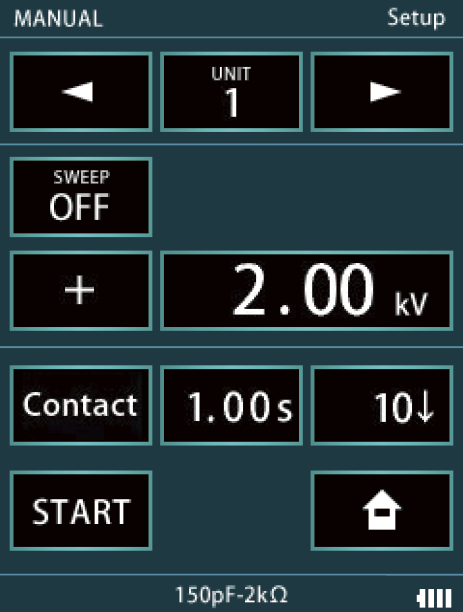

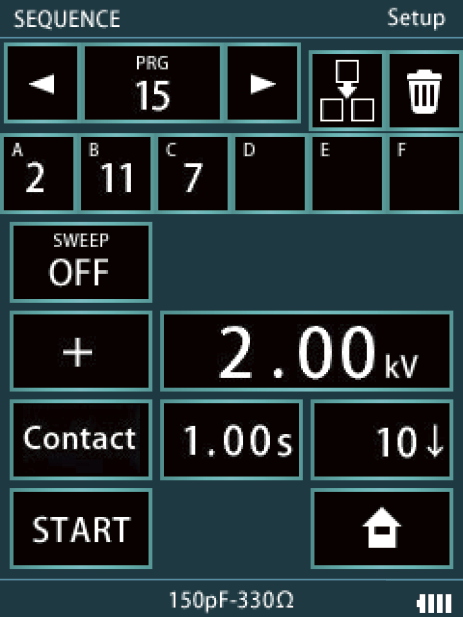

Easy setting of test conditions using the touch panel on the discharge gun.
read more

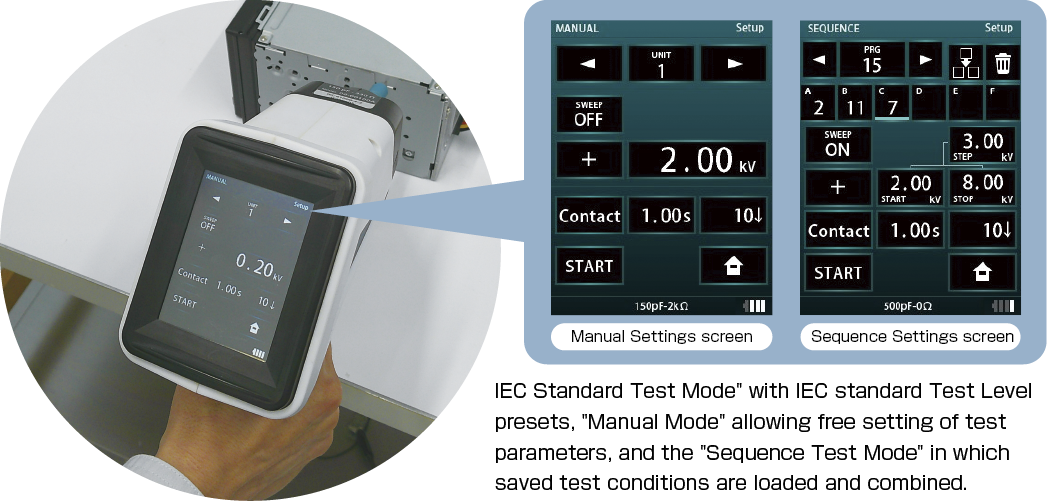

Easy setting of test conditions using the touch panel on the discharge gun.
User-friendly intuitive design with English/Japanese multilanguage support.
More reliable testing

Three pre-check functions to ensure more reliable testing: "High voltage power supply output check," "Insulation failure check," and "Discharge relay operation check.
read more

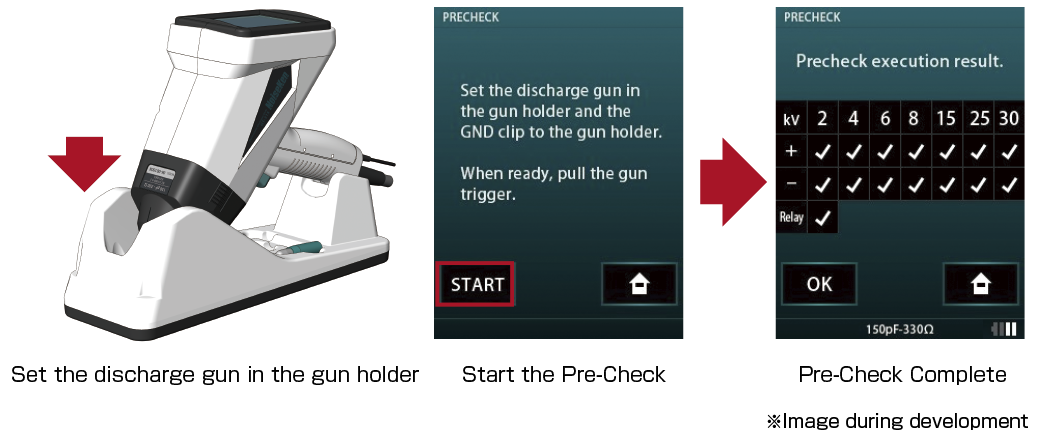

Three pre-check functions to ensure more reliable testing: “High voltage power supply output check,” “Insulation failure check,” and “Discharge relay operation check.
” Three pre-check functions allow early detection of abnormalities in the testing equipment.
Does not require a dedicated measuring device, anyone can easily operate this function.

back to list

Specifications

Parameter	Features / Specifications
Output voltage	0.2kV～30.0kV
Polarity	Positive / negative
Repetition cycle	0.05s ～ 600s
Discharge number of times	1 - 60,000 times, continuous
Discharge mode	Contact discharge / Air discharge
Test mode	IEC standard test mode Manual test mode Sequence test mode
Trigger mode	Gun trigger / External trigger
Discharge detection	present
Pre-check function	present
CR-cup check	IEC & ISO detection
Operation panel	Color LCD touch panel (resistive film type)
Language	English / Japanese
External Control	Optical connector connection for PC communication
Power Supply	AC100V ～ 240V / battery
Dimensions	Power Supply Unit: (W)180×(H)124×(D)292mm Gun: (W)90×(H)236.2×(D)285.4mm * protrusions excluded
Weight	Power Supply Unit: 3kg (excluding AC adapter) Gun: 1.2kg (cables included/connector excluded)
Gun Holder	Included in the package
