Automotive Transient Surge Simulator(ISS/JSS)   DC Cut Module MODEL : SG-7044
Optional equipment for the SG-7040A Series to carry out supply interruption test with <1μs rise/fall time requirement.

Features
- Disconnects DC supply circuits
- Open and Sink Modes

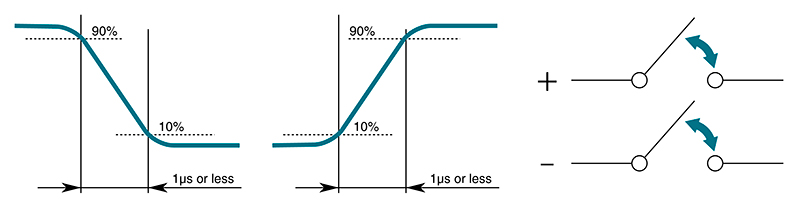

- Rise and fall time < 1μs
- Caontrollable from SG-7040A
- Sink currents up to -30 V
- DC 50 A
Specifications
Parameter Specification Output voltage 0 〜 DC 60 V Steady-state current Max. 50 A Short mode Open / Short (Current intake) Cut off mode Only + / Only - / Both polarities Cut time Open : Input terminal or trigger switch Short : Set at short duration or set at 2 - 9999μs Rise / Fall time ≦ 1μs (10 % - 90 % short mode output open at DC 12V) Dimensions / Weight (W)430 x (D)400 x (H)200 mm / approx. 10 kg ■Accessories
Item Q'ty Coaxial cable (BNC-BNC / 2 m) 1 pc. Output cable (1m) 1 pc. Crimping terminal (M4) 4 pcs. Crimping terminal (M8) 4 pcs. Fuse (2 A) 2 pcs. AC cable 1 pc. Instruction manuals 1 volume Accessories bag 1 pc. Contact
