Electrostatic Discharge Simulator (ESS series) ESD Voltage Meter MODEL : 18-00086B

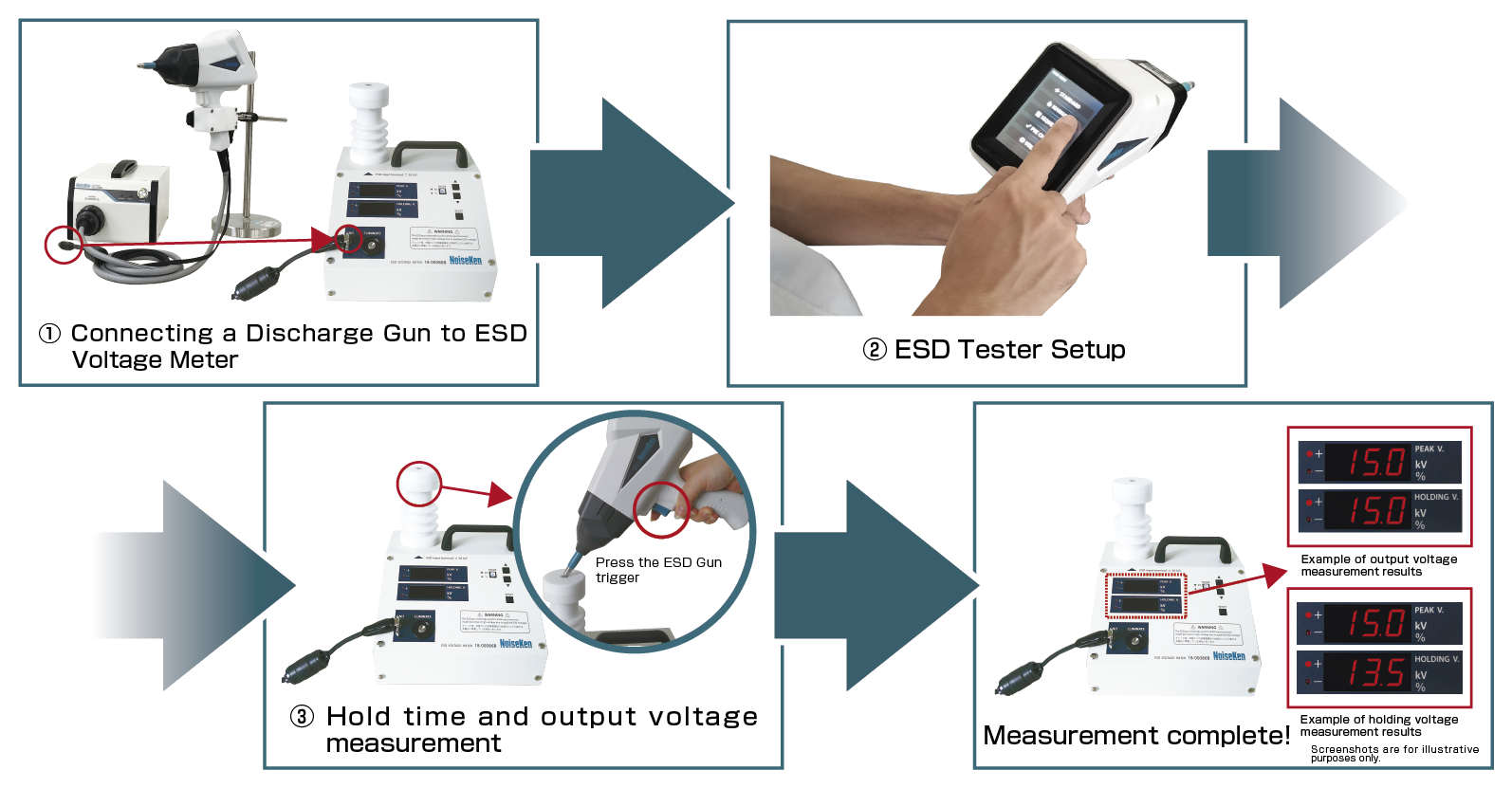

For measuring the hold time and output voltage of electrostatic testers
Features
Easy measurement of tester specifications for the Air Discharge testing !
Hold time measurement function
IEC 61000-4-2 standard specifies the voltage “Hold Time” as a tester specification related to the Air discharge testing. The Hold Time is defined as “the time interval during which the output voltage decreases by 10% or less due to leakage before the discharge” and is required to be “at least 5 seconds”. By using this product, the voltage “hold time” can be easily measured. Also, the output voltage specified in the IEC 61000-4-2 Standard can be easily measured without using a high-voltage probe or voltmeter.
Contact
Repair, Inspection and Calibration
Customer Service CenterNew Purchase Consultation, Materials Request
Product Inquiry Form
Electrostatic Discharge Simulator (ESS series) Options
-
ESS-PS1/GT-31S storage case MODEL: CASE-ESSPS1
This case can store the ESS-PS1 static tester and the GT-31S discharge gun.
Can also store the GT-31S accessory set (GT-ISOSET-A) for performing testing complying with ISO Standard. -
Discharge gun stand MODEL: 03-00127A
A stand to fix the discharge gun for testing.
Also used during the pre-check (pre-start inspection).
03-00127A is included in the main unit ESS-PS1 package. -
Infrared Remote Controller MODEL : 13-00004A
“Infra-red Remote Controller” standard attached to realize the setting remotely from the generator
-
USB Optical Module Kit MODEL : 07-00022A
Optical conversion adaptor Used for remote control with PC. 5 m of optical fiber cable with USB interface attached.
● Compatible model : ESS-S3011A -
AUX Connector Junction BoxMODEL : 05-00052A
Enable to connect warning lamp, automated ESD
eliminator and external trigger simultaneously
● Compatible model : ESS-S3011A -
Warning Lamp MODEL : 11-00014B
Warning light used for alerting and calling for attention
during the test.
● Compatible model : ESS-S3011A
* The connection is done with DSUB connector. -
Gun Holder MODEL : 03-00075A
Holder for discharge gun during the test.
Also, can be the pre-checking fixture in combination between ESS-S3011A and GT-30R series.
● Compatible discharge gun : GT-30R series
-
Storage case for GT-31S MODEL: 09-00011A
Case for storing the GT-31S discharge gun.
Can also store the GT-31S accessory set (GT-ISOSET-A) for performing testing complying with ISO Standard.
-
Magnetic field loop adaptor for GT-31S MODEL: 03-00137A
A magnetic field loop adaptor, in accordance with U.S. Ford standard, used in combination with an electrostatic tester and a discharge gun. -
Impulsive Magnetic Field Adaptor for GT-31S MODEL: 03-00136A
Adaptor for simulating magnetic field induction, an inductive mode of noise, and is used in combination with an electrostatic tester and a discharge gun. -
Impulsive Electric Field Adaptor for GT-31S MODEL: 03-00135A
Adaptor for simulating electrostatic induction, an inductive mode of noise, and is used in combination with an ESD Simulator and a discharge gun. -
Discharge module (CR for GT-31S)
Conventional discharge guns had a CR unit and a discharge cup attached, but in the GT-31S discharge gun, the CR unit and the discharge cup are integrated in 1 piece as a discharge module.
By replacing the discharge module, testing to IEC 61000-4-2 and ISO 10605 standards is possible. -
Flexible Tip Attachment For GT
This product is a bendable and flexible attachment for discharge tips.
It enables the application of electrostatic discharge to deep and hard-to-reach locations during static electricity testing.
*Not regulated by IEC standard
*This product is a custom specification product. Please contact us for details. -
Electrostatic Discharge Fixture
This product is a Fixture for creating and discharging minimum gaps in the contact discharge of an electrostatic test.
The Fixture consists of a metal parallel board, an insulation plate, a destination discharge tip° (2 pcs.), a discharge tip pedestal (2 pcs.), a metal parallel board connecting rod, and an EUT connecting rod.
The adjustment of the clearance of 7mm between the two conical discharge tips can be adjusted by the user using screws. -
CR Unit (Dummy)
This product is a dummy type unit, which does not have a capacitor or resistor inside the CR unit used for the discharge gun GT-30R series.
Only the first peak without the second peak in the electrostatic test is output.
It use to identify and evaluate malfunction countermeasures during static electricity tests.
● Compatible models: GT-30R series -
CR Units Storage Case
A case that can store eight standard size CR units and four 500 pF CR units used in the discharge gun GT-3OR series.
● Target model: GT-30R series -
Options for ISO 10605 Standard compliant test
ISO 10605 standard compliant discharge gun package available
By adding the optional discharge cup and CR units, it performs tests that comply with the ISO 10605 standard.
Since it is easily replaced the discharge cups and CR units, various CR constants can be tested with a single discharge gun. -
Extension cable for GT-30R MODEL : 05-00047B
Extension cable in connection between ESD simulator main unit and its discharge gun. The length is 3 m
* not compliant with the IEC standard
● Compatible discharge gun :GT-30R series -
Magnetic Field AdaptorMODEL : 03-00070A
Magnetic field adaptor for Ford standard.
Connected to GT-30R series discharge gun, it generates transient magnetic fields.
(Not standardized in the IEC Standard)
●Available discharge gun : GT-30R series -
Impulsive Electric Field Adaptor MODEL : 03-00068A
Adaptor for simulating static induction as one of noise inductive mode with attachment to the discharge gun (Not standardized in the IEC Standard)
● Compatible discharge gun :GT-30R series -
Impulsive Magnetic Field Adaptor MODEL : 03-00069A
Adaptor for simulating electromagnetic induction as one of noise inductive mode with attachment to the discharge gun
(Not standardized in the IEC Standard)
● Compatible discharge gun : GT-30R series -
Fast Rise Time AdaptorMODEL : 03-00073A
Realize a faster rise time of the discharge current than IEC 61000-4-2 standard value (0.6 ～ 1.0 ns) around 0.2 x 0.3 ns with attachment to the discharge gun.
(Not standardized in the IEC Standard)
● Compatible discharge gun : GT-30R series -
Discharge Tip (Small Diameter)
Custom-designed discharge tips are avairable.Please contact us for details.
* Products not subject to IEC standards -
Discharge TipsMODELS : 12-00007A / 8A / 9A
Gun discharge tips
The all 3 tips are standard equipped with GT-30R series.
● Compatible discharge gun : GT-30R series -
Micro-gap Discharge Tip MODEL : 12-00010A
Enabling a more stringent evaluation for the real world ESD immunity
Connected to the NoiseKen ESD gun, this tip allows for a waveform with higher peak amplitude and a faster rise time. It is a common view that ESD immunity testing is the most challenging and passing the standard test does not always assure real world immunity. This tip is helpful for more extensive testing against non-standardized field events -
Specialized Case for Discharge Gun MODEL : 09-00006A
Specialized Case for storing and carrying the discharge gun, CR units and the other related fixtures.
● Compatible discharge gun : GT-30R series -
Gun HeadMODEL : 03-00071A / 03-00072A
Gun head to be changed according to Standard compliant test. 2 kinds for the test with 330 Ω (03-00071A) and 2 kΩ (03-00072) are available.
● Compatible discharge gun : GT-30R series -
CR Units
CR units for GT-30R series ESD Guns
● Compatible discharge gun : GT-30R series
* Please contact us if you require a CR constant other than listed on this page.
* The unit size depends on the capacitor constant.
-
Discharge resistance cable (3m) MODEL: 05-00183A
Discharge resistor cable connecting between the vertical coupling plane and the ground plane.
Length: 3m * Includes 2 x 470kΩ.
* IEC 61000-4-2 Ed.2/Ed.3, ISO 10605 Ed.2/Ed.3 compliant -
Discharge resistance cable (1.5m) MODEL: 05-00182A
Discharge resistor cable connecting between the horizontal coupling plane and the ground plane.
Length: 1.5m * Includes 2pcs of 470kΩ resistors.
* IEC 61000-4-2 Ed.2/Ed.3, ISO 10605 Ed.2/Ed.3 compliant -
Stand conversion adapter MODEL: 03-00131A
Adapter for mounting the discharge gun GT-31S on a free arm probe stand. -
Probe stand for GT Guns MODEL: 03-00130A
Used to fix a discharge gun during ESD testing. The articulated type allows the discharge gun to be oriented and fixed in any desired direction.
*Not standardized in the Standard
Probe stand exclusively for use with the GT-31S discharge gun. -
Horizontal Coupling Plane (HCP) MODEL : 03-00020A
Metal plane to be placed onto the table in case of the testing to table top devices.
W1600 x D800 x t1.5mm x 1 pc. (Made of aluminum) -
Test Table MODEL : 03-00039A
Wooden table to be used for the test to devices under test (DUT).
W1600 x H800 x D800 mm -
Ground Reference Plane (GRP) MODEL : 03-00007A
Ground plane to be placed just under the wooden table.
W1800 x D1000 x t1.5 mm x 3 pcs. in 1 set (Made of aluminum) -
Insulating support MODEL : 03-00024A
When doing the electrostatic discharge test to fl oorstanding
equipment, to be used for fl oating the equipment
10cm higher than the ground reference plane.
Size : W 1200 x D 1200 x H 100 mm
Material : Wooden
Withstanding load : 500 kg -
Cubic Insulating Block100 MODEL : 03-00029A
Used for floating EUT 10cm upper than the ground plane in case of testing to floor-standing EUT
Size : W100 x D100 x H100 mm
Material : Wood
Withstanding load: 500 kg -
Noise Canceller Transformers NCT series
These series have excellent attenuation characteristics for impulse noises.
Used for line input insulation during impulse noise testing. -
Automated ESD Eliminator MODEL : 01-00013B
Enable to eliminate electric charge which has been charged to EUT automatically with connection to ESS-S3011A. (Not standardized in the IEC Standard)
● Compatible model : ESS-S3011A -
Free Arm Gun Stand MODEL : 03-00022B
Enables to move discharge gun vertically and horizontally to arbitrary desirable discharging point.
(Not standardized in the IEC/ISO Standard)
● Compatible discharge gun : GT-30R series
* Conversion adaptor model 03-00074A is necessary in addition for the attachment to GT-30R series -
Probe Stand MODEL：03-00108A
A probe stand used to fix the discharge gun for ESD Simulator. (Not standardized in the IEC Standard) Because of the articulated type, the discharge gun fixes in any direction. -
Insulating sheet MODEL : 03-00004A
Dimensions : (W) 1450 x (D)650 x (t) 0.5 mm -
Floor-standing vertical coupling plane MODEL：03-00034A
Dimensions : (W) 540 x (H)1540 x (D) 500mm -
Vertical coupling plane MODEL : 03-00005A
Dimensions : (W) 500 x (H)500 x (t) 1.5 mm -
Discharge resistance cable MODEL : 05-00054B
Cable to be used for eliminating the ESD on DUT and connect between HCP and GRP
470 kΩ x 2 pcs./1 set. -
Insulating Support MODEL : 03-00066A
Sheet to be laid out in between DUT and GRP for the test to automotive electronics devices.
W1450 x D650 x t2 mm
Material: PVC (vinyl chloride) transparent -
Insulating Block MODEL : 03-00054A
Blocks to float (isolate) wirings of DUT from GRP.
W300 x D300 x H50 mm, 5 pcs. in 1 set -
Aluminum Plate for Test MODEL : 03-00053A
Plate to be laid out under tires for the vehicle test
W500 x D500 x t1.5 mm -
Ground Cable (for ISO Standard) MODEL : 05-00104A
Cable to be used for grounding connection required in ISO 10605 (2001). L2000 x W50 mm
* Not required in ISO 10605 Ed.2 (2008) -
Coupling Plane for ISO 10605 Annex F MODEL : 03-00065A
Coupling plane used for the optional test in ISO 10605 Ed.2 (2008). It consists of a coupling plane (made of copper) and an insulation block.
* Ground reference plane is not included. -
Conductive Mat (for ISO Standard) MODEL : 03-00055A
Mat to be laid out in between DUT and GRP for the ESD susceptibility test in the packaging and handling.
Surface resistance 107 x 109 Ω
W1000 x D500 x t2 mm -
Conversion Adaptor for Free Arm Gun Stand MODEL : 03-00074A
Adaptor for connecting between Free Arm Gun Stand 03-00022B and discharge gun GT-30R series.
● Compatible discharge gun : GT-30R series -
ESD Elimination Brush MODEL : 05-00125A
Brush to eliminate the electrification on EUT / DUT before starting the test. -
Test environment (Floor-standing type) ESS-801GL
ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc. -
Test environment (Table-top type) ESS-801
ESD test environment in conformance with EN/IEC61000-4-2 Standard.
Two types for EUT are available, table-top type and floor-standing type so that the environments can support the tests along EUT figures. Since the table is made of wood, influence to the test result should be small (quantitable test result can be expected since the discharge can be realized in state high frequency electromagnetic field is less lost) and the high reproducibility can be expected and realized. Also, can be versatilely utilized for another tests like impulse noise immunity test, etc.
-
Discharge gun mount MODEL: 03-00128A
Jig for fixing the discharge gun during waveform verification using a Faraday cage and ESD current target mounting board (03-00052B/03-00118A).
Compatible guns: GT-31S, GT-30R(A), TC-815R, TC-815S -
GND cable positioner MODEL: 03-00129A
A stand for pulling the ground cable of a discharge gun when observing the ESD discharge current waveform.
(H)700mm -
ESD current target mounting plate MODEL: 03-00118A
A board and dedicated ground plane for mounting current target in a discharge current waveform measurement environment. -
Faraday cage MODEL: FC-300
Faraday cage for checking current waveforms as defined in the IEC 61000-4-2 / ISO 10605 standards. Easy to move with the attached casters. -
Current Target Mounting Board MODEL : 03-00052B
The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard
Dimensions : 1.2 m x 1.2 m -
Current Target Mounting Board MODEL : 03-00027A
The board to fix the load resistor (MODEL NO. 06-00094A ESD current target) for simple measuring the discharge current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard. (not conforming to the standard)
Dimensions : 0.6 m x 0.6 m -
ESD Current Target MODEL : 06-00094A
Load resistor to measure, verify and calibrate ESD current waveform defined in IEC61000-4-2 Standard and ISO 10605 Ed.2 Standard -
Faraday cage MODEL : FC-200
Faraday cage which is defined in IIEC61000-4-2 Standard and ISO 10605 Ed.2 Standard to verify the discharge current waveform. Easy to move with casters equipped to the bottom. -
Attenuator MODEL : 00-00022A
Attenuator to protect measurement equipment for ESD current waveform.
Attenuation ratio 20 dB -
Coaxial Cable MODEL : 02-00157A
High frequency responsible cable to connect ESD target and oscilloscope
BNC-SMA connector (02-00133A) is also available as an option -
ESD Current Target Calibration Set MODEL : 06-00068A
Set to calibrate the ESD target (06-00094A) in conformance with IEC61000-4-2 Ed.2.0 (2008). -
Discharge Gun Mount MODEL : 03-00061B
Fixture to load and fix the discharge gun to the Faraday cage (FC-200) or current target mounting board (03-00052B) -
GND Cable Positioner MODEL : 03-00060A
Stand to pull and fix the ground cable of discharge gun 0.5 m backwards at the middle of the cable when calibrating the ESD current.
Catalogs and Technical Materials
Related Products
-
This is an Electrostatic Discharge Gun for performing electrostatic discharge immunity tests that comply with AEC-Q200 standard.
-
Cost-oriented Basic model
Cost-oriented basic model ESD Simulator equipped with the light weight discharge gun.
The output voltage can be selected up to max. 30 kV and compliant to both EN / IEC 61000-4-2 Standard and ISO 10605 Standard. -
Free you from the hassle of testing by the pre-check function and the weight reduction of the discharge gun
EMC test equipment to evaluate the resistibility of electronic equipment when energy charged on a human body or object is discharged to the electronic equipment.
This can be available for evaluating malfunctions or functions declines of electronic equipment against the ESD. Programmable simulator to ease some complicated tests. The output voltage is up to 30kV allowing to perform testing compliant to IEC61000-4-2 & ISO 10605 Standards. -
Make your electrostatic testing easier!
This tester simulates the electrostatic discharge phenomenon from a charged human body and evaluates the resistance of electronic devices to electrostatic discharge.
Electrostatic discharge occurs when a charged human body approaches an operation panel, button switches, or housing of electronic devices. It generates a high-voltage, highfrequency noise which can cause malfunctions in the electronic devices.
Electrostatic testing reproducing noise caused by electrostatic discharge is one of the essential immunity tests to prevent troubles caused by noise in the market.
News
Contact
Repair, Inspection and Calibration
Customer Service CenterNew Purchase Consultation, Materials Request
Product Inquiry Form
