IEEE C37.90.1-2012 Compliant Damped-Oscillatory Wave Simulator

Damped Oscillatory Wave Simulator (SWCS) IEEE C37.90.1-2012 Compliant Damped-Oscillatory Wave Simulator

This simulator generates high-frequency noise with a fast repetition rate that occurs when switches and other switching devices are turned ON/OFF, simulating the noise to evaluate the immunity of electronic and electrical equipment.
It can perform tests compliant with IEC 61000-4-18 (2006), the power standard B-402 (2007), and the IEEE C37.90-2012 standard.

IEEE C37.90.1-2012 Compliant Damped-Oscillatory Wave Simulator product image

EMC Testing

Features

- Tests compliant with IEC 61000-4-18 (2006) are possible.
- Tests compliant with the B-402 (2007) power standard can be performed.
- Tests compliant with the IEEE C37.90-2012 standard can be performed.
- It outputs a maximum voltage of 3kV, enabling ample testing.
- The touch panel provides a highly visible settings screen.
- Common mode/normal mode switching and phase switching can be performed inside the tester.
- By using a coupling balun, normal mode testing compliant with the IEEE C37.90-2012 standard can also be performed.
- It incorporates a power line CDN (AC240V/DC125V 20A).
* This product is a custom-made item. Please contact us for details.

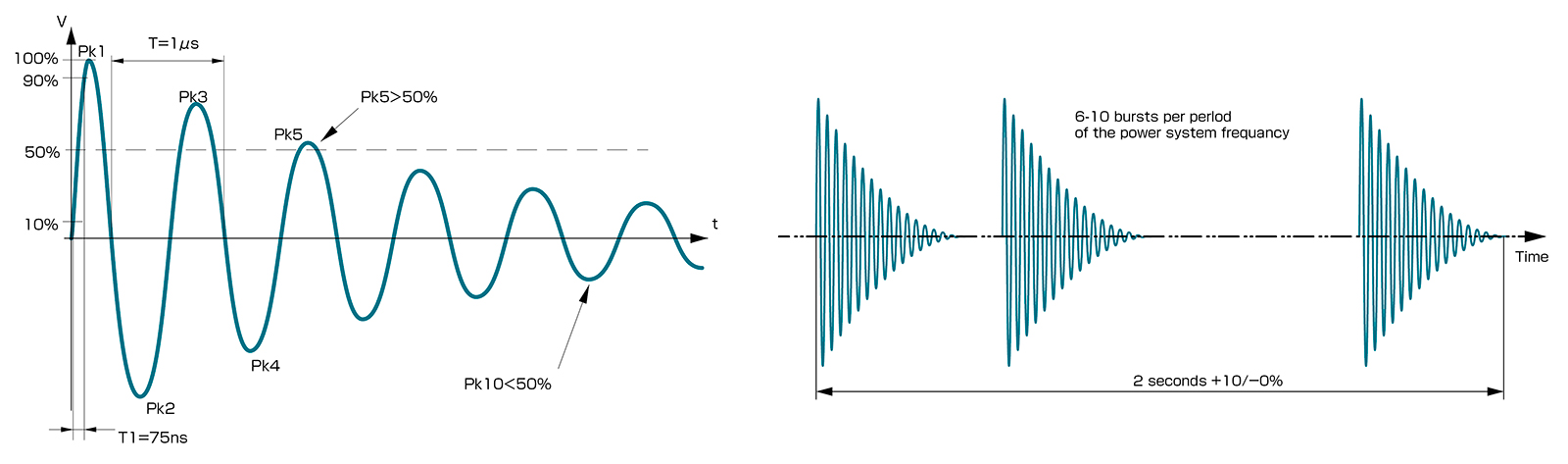

■Output Waveform

Specifications

■Specifications (Main Unit)

Parameter	Spesification
Output Waveform	Slow Damped Oscillatory Wave Floating Output
Output Voltage	250V ～ 3000V +0 %／－10%　1 V step
short-circuit current	1.25A ～ 15A ±20%
Oscillation frequency	1MHz±10%
Repetition frequency	400/480Hz ±1% 400Hz = 8 cycles / 1 cycle of commercial frequency 50Hz (asynchronous) 480Hz = 9.6 cycles / 1 cycle of commercial frequency 50Hz (asynchronous) 400Hz = 6.7 cycles / 1 cycle of commercial frequency 60Hz (asynchronous) 480Hz = 8 cycles / 1 cycle of commercial frequency 60Hz (asynchronous)
Voltage Waveform Decay Rate	The fifth peak exceeds 50% of the first peak, while the tenth peak is less than 50% of the first peak (reaching 50% of the peak value between the 3.5th and 5.5th cycles).
Rise Time	75 ns ±20% (between 10% and 90%)
Output impedance	200Ω±20%
Output Polarity	Positive polarity, or negative polarity
Imprint time	1s to 999s +10% / -0% (1-second steps) and continuous
Coupling Capacitor	0.5μF±20%
CDN Power Supply Capacity	Single-phase/Three-phase AC 240 V/20 A or DC 125 V/20 A
Imprint Phase	Normal Mode: L1/L2/L3/N phase-to-phase Common Mode: L1/L2/L3/N phase-to-PE, L1, L2, L3 phase simultaneous application-to-PE, L1, L2, L3, N phase simultaneous application-to-PE
Decoupling coil	Below 1.5 mH
Dimensions / Weight	(W)430 mm × (H)515 mm × (D)500 mm (excluding protrusions)　Approx. 53 kg
