Features

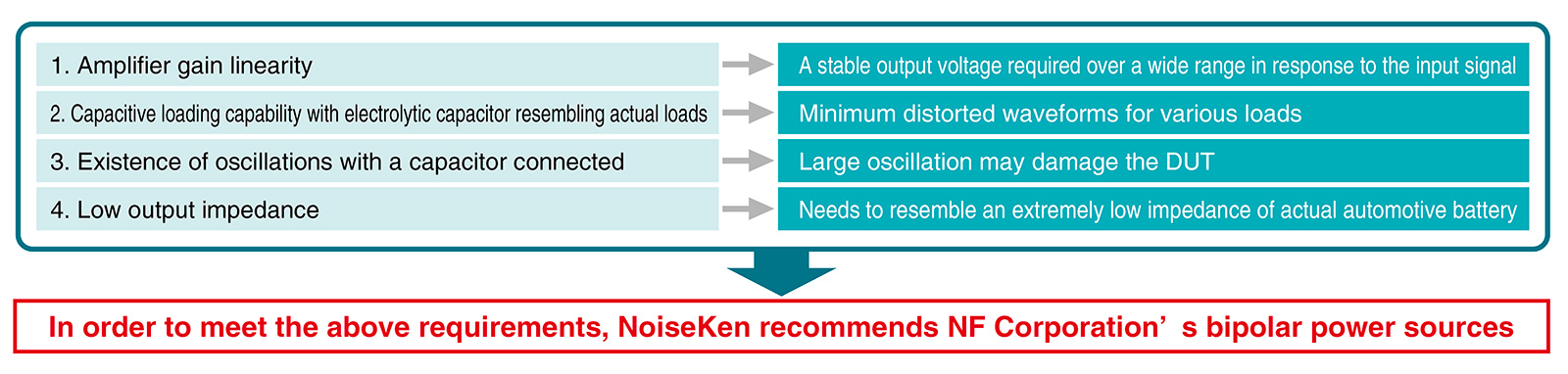

• Points to be considered for bipolar power source for automotive test applications







  ■AS-161 Series line-up


  Model	Output voltage	Output Current		Frequency Characteristics
  		peak current	DC
  As-161-30 / 60	-15 V 〜 +60 V	±30 A	15 A	DC 〜 150 kHz
  As-161-60 / 60		±60 A	30 A
  As-161-120 / 60		±120 A	60 A	DC 〜 100 kHz
  As-161-60 / 30	-10 V 〜 +30 V	±60 A	30 A	DC 〜 150 kHz
  As-161-120 / 30		±120 A	60 A
  As-161-240 /30		±240 A	120 A	DC 〜 100 kHz

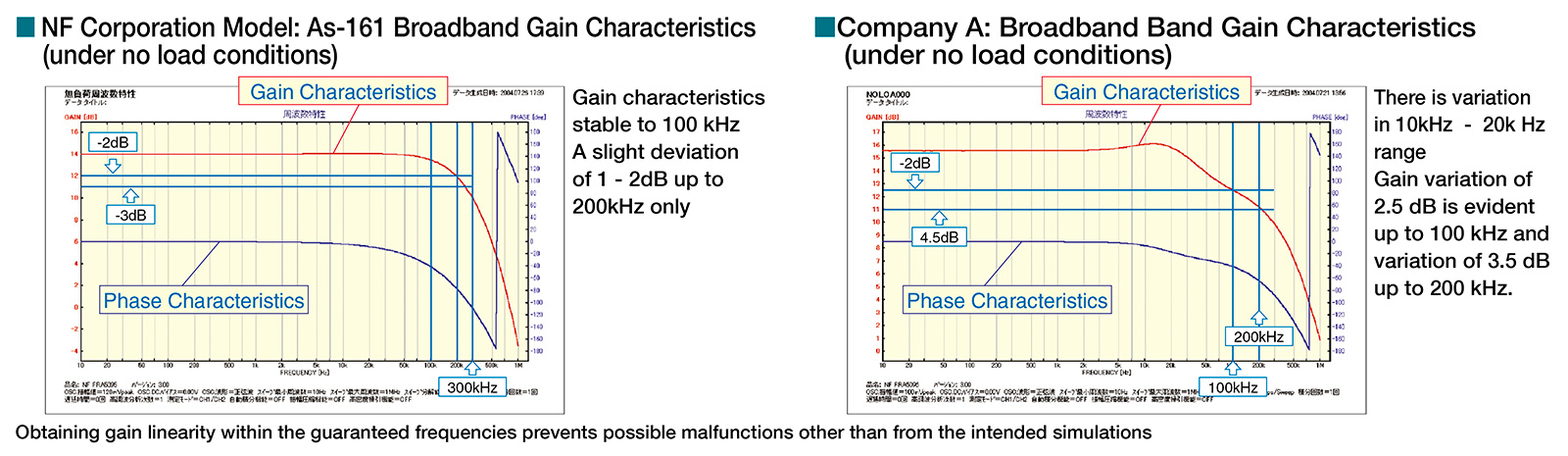

  ■Competitive Comparison 1: Broadband Gain Characteristics

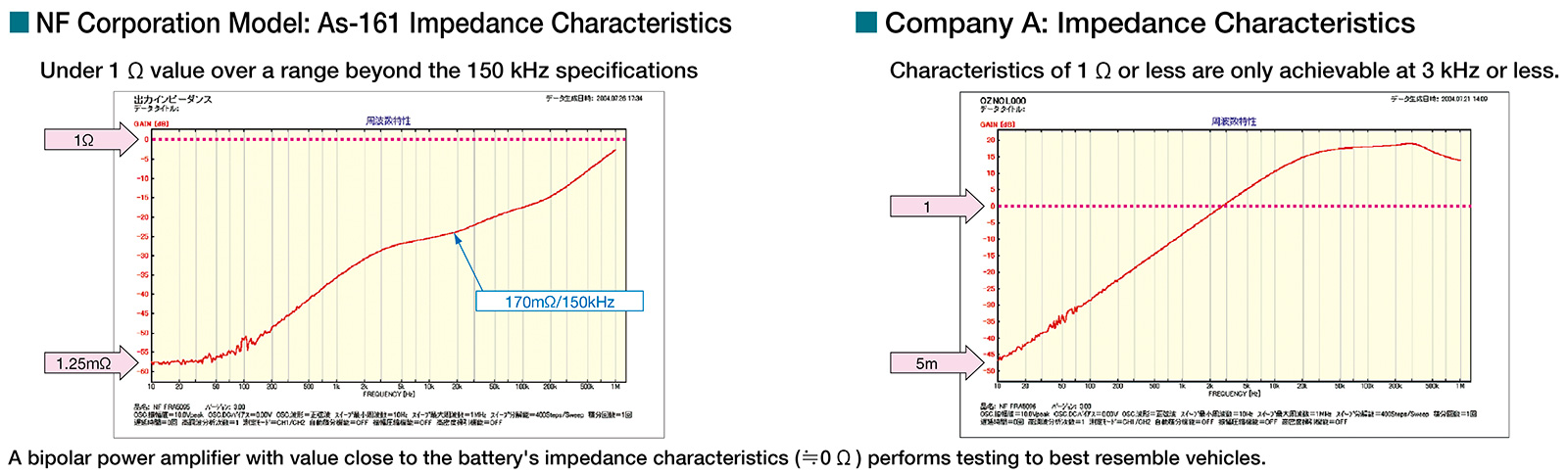

  ■Competitive Comparison 2: Impedance Characteristics
