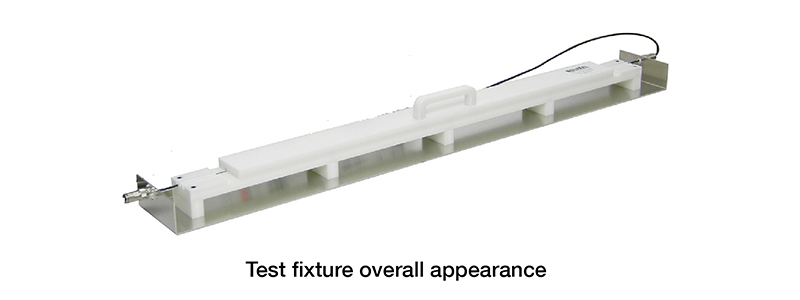

Automotive Transient Surge Simulator(ISS/JSS) Test Fixture for FORD standard RI130/RI150 15-N1583
Harness injection fixture to perform RI130 / RI150 test required in FORD Standard EMC-CS-2009
(Allows to perform RI130 test in combination with ISS-T1321).
Features

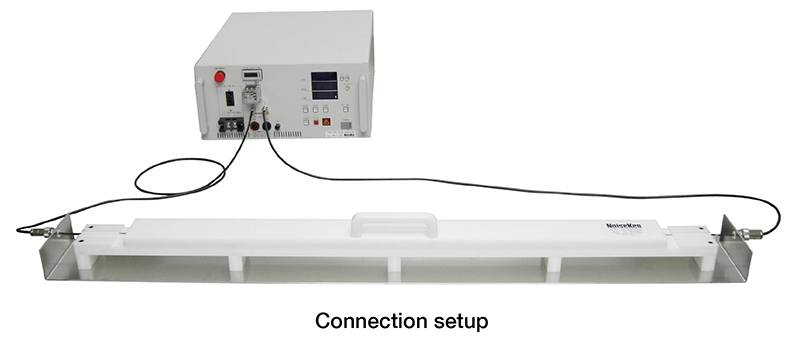

connection setup
read more
connection setup

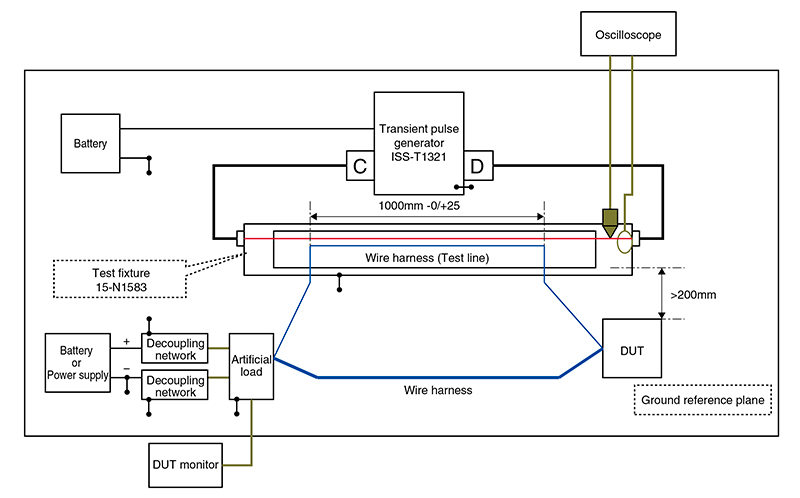

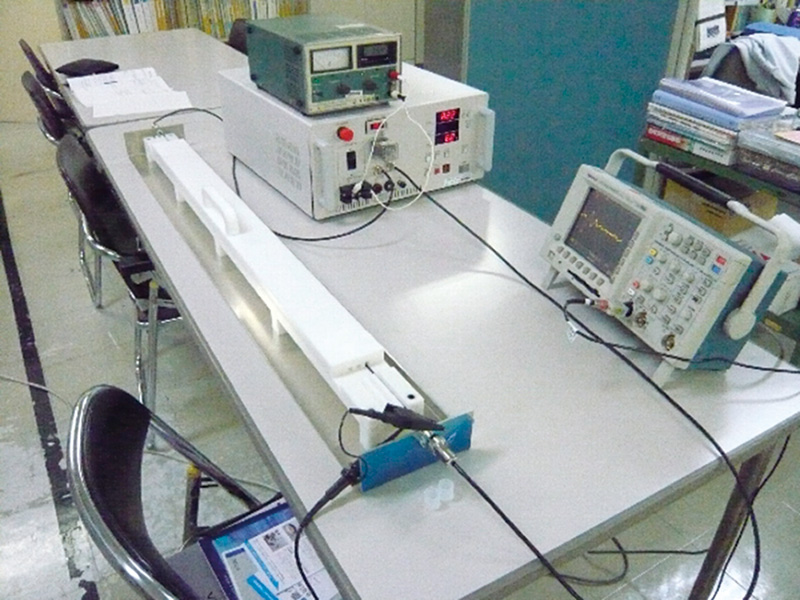

【Test setup】RI130
read more
【Test setup】RI130
*Please refer to the relevant Standard for more details.

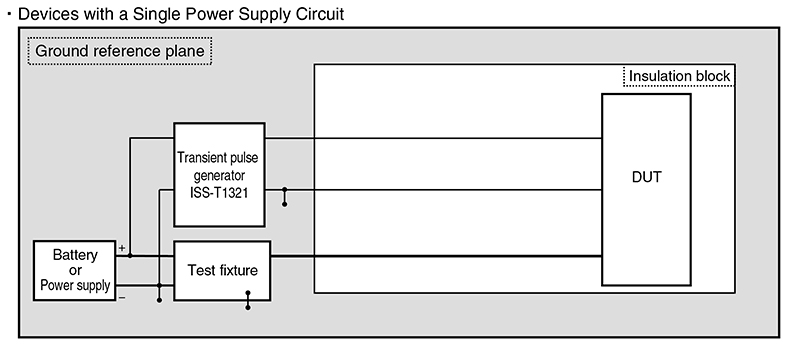

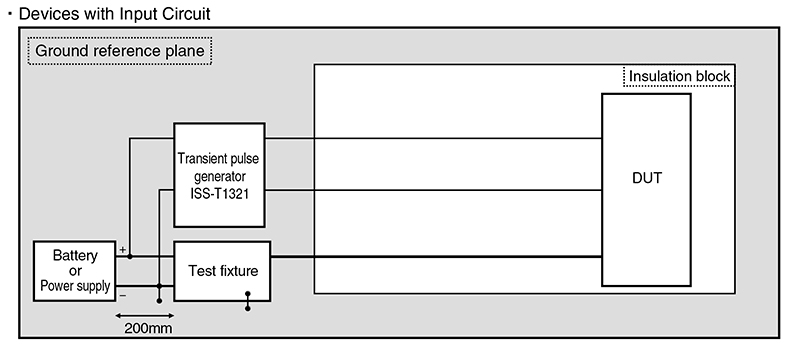

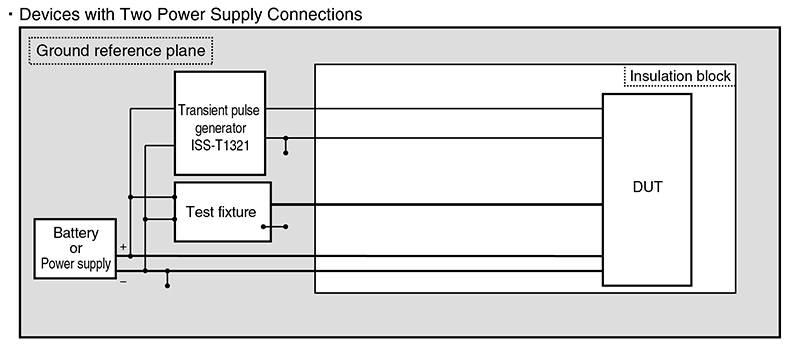

【Test setup】CI220
read more
【Test setup】CI220
*Please Standard for more details.
ポップアップタイトル
closeSpecifications
■Basic specifications
| Connector | N Type (Female contact) |
| Source wire | AWG 14 copper wire (with cover) |
| Dimensions | (W)1306 x (H)72 x (D)152 mm (protrusions excluded) |
| Weight | Approx. 7.5 kg |
| Equipped cable | Connection cable to ISS-T1321 x 2 pcs. |
