Automotive Transient Surge Simulator(ISS/JSS)   FORD Standard CI250 Transformer Unit 06-N1588
Ground offset transformer for conducting the CI250 test specified in the FORD standard "EMC-CS-2009".

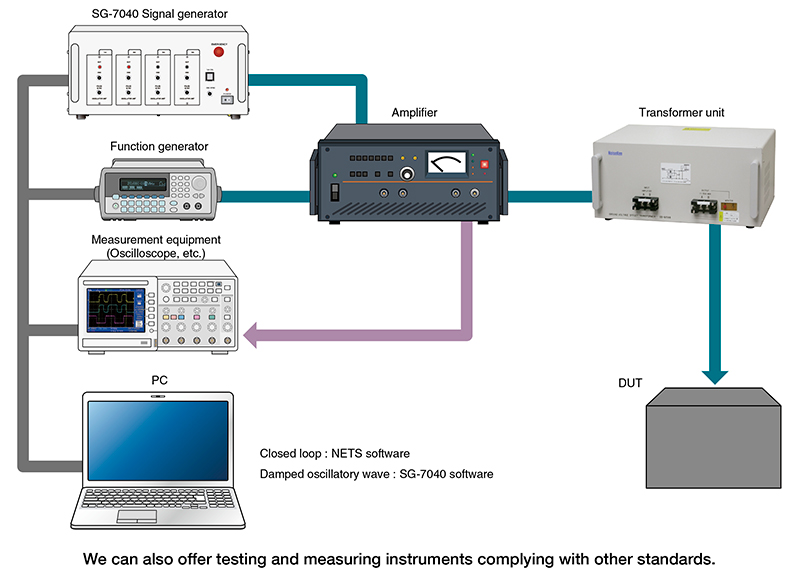

The test is performed in combination with the DC voltage fluctuation test system (SG-7040A System).
Features
Specifications
■Basic specification
Frequency Characteristics 30 Hz 〜 250 kHz Input Signal 200 W max Output Current DC 50 A max Coupling Ratio 4 : 1 (Input : Output) Dimensions Approx. (W)430 x (D)322 x (H)200 mm (protrusion excluded) Contact
