Product body (Discontinued) Lightning Surge Simulator LSS-6330 series
This simulator for evaluation of the resistance of electronic devices simulates "high-energy in-duced lightning noise" induced in distribution lines and communication lines due to the ground potential fluctuations caused by lightning strikes.
Features
Features
read more- Compliant to IEC 61000-4-5 Ed.3, IEC61000-4-12 Ed.3 (RINGWAVE 100kHz) and ANSI IEEE62-45 (2002)*
- Equipped with pre-check function for a simple pre-start inspection of the simulator (not calibration)
- Equipped with output waveform monitor terminal: waveform applied to EUT during testing can be observed on oscilloscope.
- Equipped with 2 test modes. Standard Test mode with IEC 61000-4-5 standard preset test conditions and Manual Test mode allowing arbitrary test conditions setting for easy settings ac-cording to the application.
- Optional PC remote control software is available for supporting lengthy lightning surge testing.
- Employs MPU control that simplifies continuous testing: surge output, waveform switching, po-larity switching, etc. can be performed automatically.
＊For Ring Wave coupling, simultaneous application is possible only for the Basic test type with PE as surge COM.

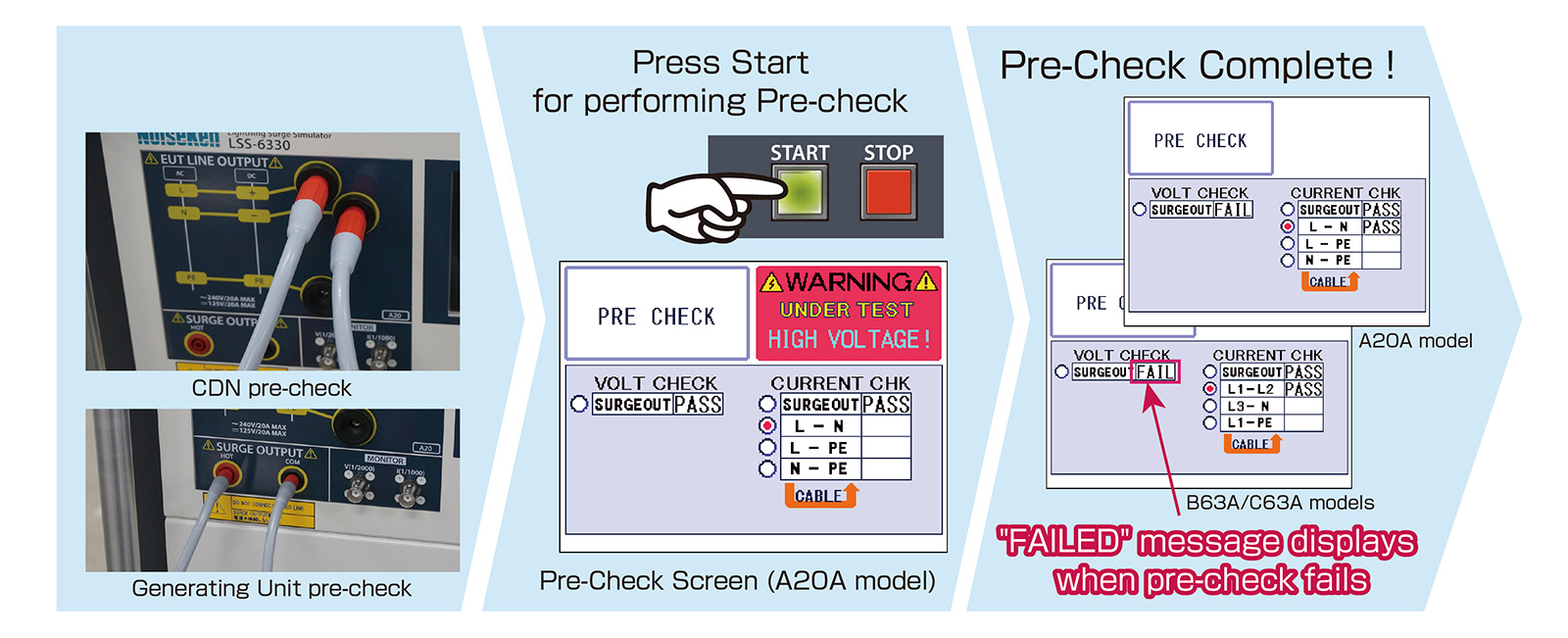

Simple pre-start inspection with the equipped pre-check function
read moreBefore, pre-start inspection required using two high-voltage probes and an oscilloscope capable of differential measurement for the output waveform verification.
Before, pre-start inspection required using two high-voltage probes and an oscilloscope capable of differential measurement for the output waveform verification. Now, with the LSS-6330 you can pre-check the presence of output simply by connecting a dedicated cable to the main body of the simulator.
( Check available at SURGE OUTPUT / EUT LINE OUTPUT )Intuitive connection panel
read moreApplied phase displayed on the front panel
Applied phase displayed on the front panel

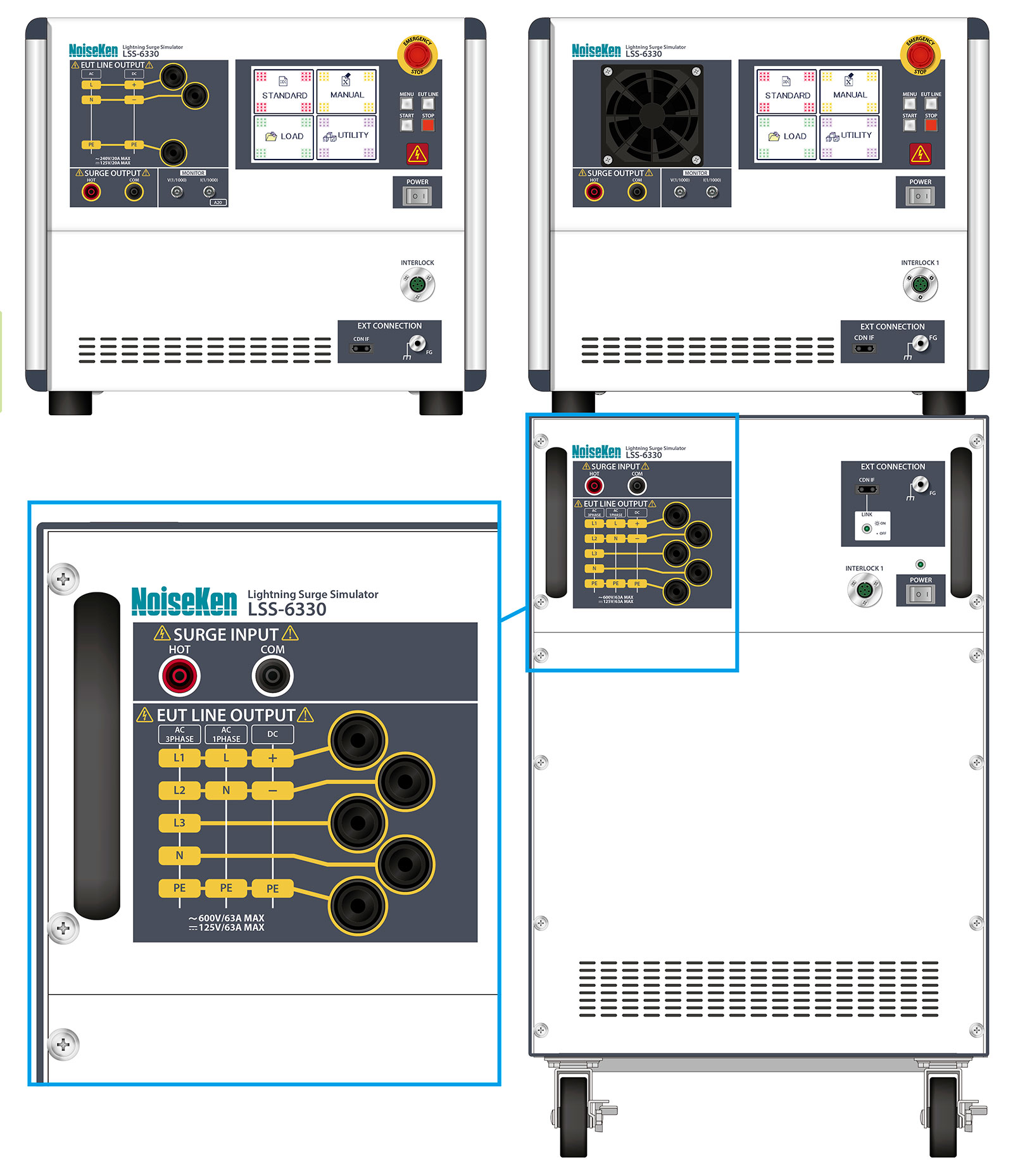

Equipped with an intuitive connection front panel helping prevent misconnection of power cables during the test.

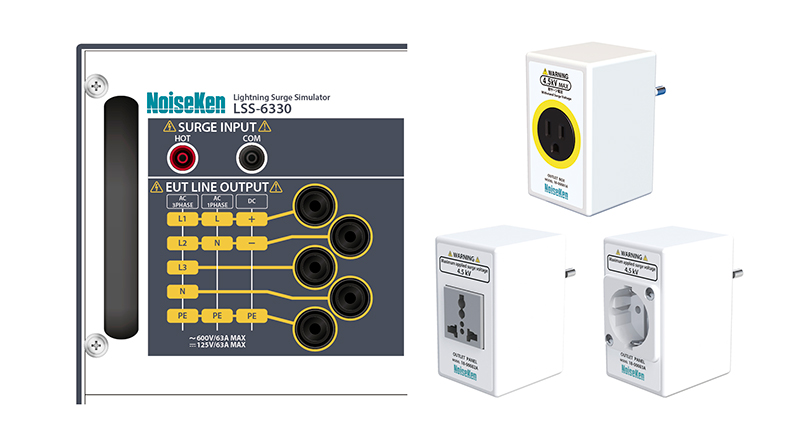

Optional Outlet boxes are also available for easier connection.Emergency stop button and interlock terminal ensuring safety

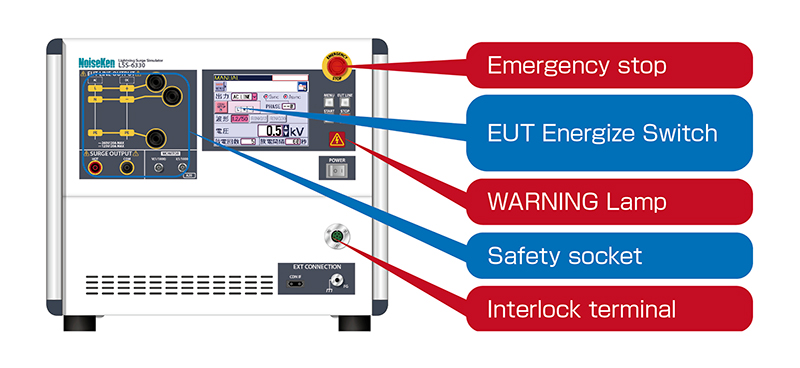

read moreEquipped with operation safety functions in both hardware and software.
Equipped with operation safety functions in both hardware and software. Safety connection sockets as well as emergency stop switch and interlock terminal secure high operation safety regarding EUT connection. Using optional “safety fence” and “EUT protection box” allows ensuring further safety.

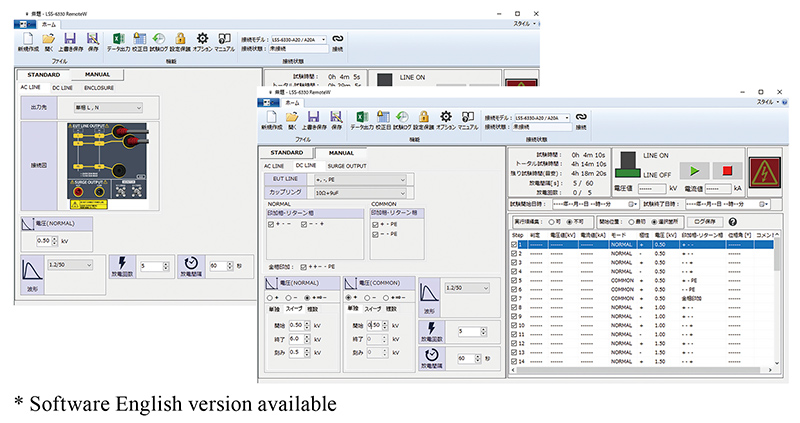

PC Software available (option) For Remote Test Control (14-00053B)
read moreAllows setting test conditions, saving test results and test history, exporting test reports, etc.
Allows setting test conditions, saving test results and test history, exporting test reports, etc.

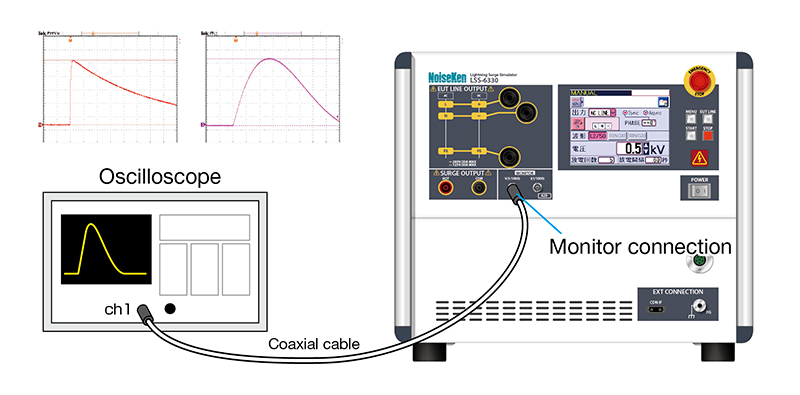

Waveform verification through "output waveform monitor terminal”
read moreIn response to multiple requests from our customers, we equipped the monitor terminal allowing to verify the injected waveform on an oscilloscope.
In response to multiple requests from our customers, we equipped the monitor terminal allowing to verify the injected waveform on an oscilloscope. Even without the oscilloscope, the test panel displays applied voltage and current parameters.
Front panel
read more

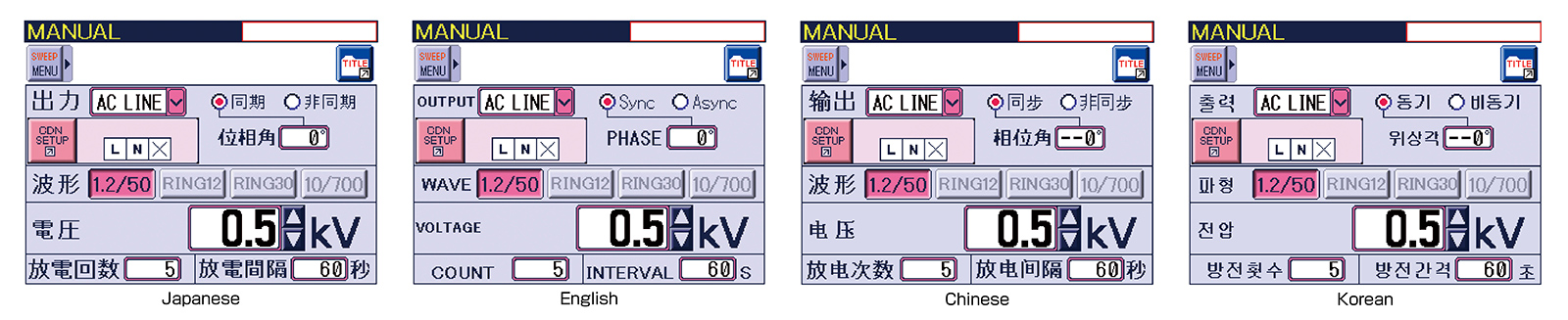

Multilingual localization
read moreMultilingual touch panel display supports easy and sure test setting.
Multilingual touch panel display supports easy and sure test setting. English, Chinese, Korean and Japanese languages available.
ポップアップタイトル
closeSpecifications
| Model | Specifications |
|---|---|
| LSS-6330-A20A | left picture: single phase 20A type |
| LSS-6330-B63A LSS-6330-C63A | right picture: three phases 63A type （up: surge generating unit, below: CDN） * C63 does not include the Ring Wave |
■ Surge generator unit LSS-6330-A20A / B63A / C63A common
| Parameter | Specifications | Notes | |
|---|---|---|---|
| Surge Waveform | 1.2/50μs-8/20μs combination 10/700μs-5/320μs combination RING WAVE | ※RING WAVE only for A20A and B63A | |
| 1.2/50μs-8/20μs combination | Open voltage | 0.5kV 〜 6.7kV ±10% | Coupling circuit：18μF Cable length：One side 0.5m |
| Front time | 1.2μs±30％ | ||
| Time to half-value | 50μs±20％ | ||
| Short-circuited current | 250A 〜 3350A ±10％ | ||
| Front time | 8μs ±20％ | ||
| Time to half-value | 20μs ±20％ | ||
| 10/700 μs-5/320μs combination | Open voltage | 0.5kV 〜 6.7kV ±10% | Cable length：One side 0.5m |
| Front time | 10μs ±30％ | ||
| Time to half-value | 700μs ±20％ | ||
| Short-circuited current | 12.5A 〜 167.5A ±10％ | ||
| Front time | 5μs ±20％ | ||
| Time to half-value | 320μs ±20％ | ||
| RING WAVE ※for A20A and B63A only | Open voltage | 0.25kV 〜 6.6kV ±10% | Cable length：One side 0.5m |
| Front time | 0.5μs ±30％ | ||
| Frequency | 100kHz ±10% | ||
| Waveform envelop | Pk2 = 40% ＜ Pk1 < 110% Pk3 = 40% ＜ Pk2 < 80% Pk4 = 40% ＜ Pk3 < 80% | ||
| Short-circuited current | 8.3 〜 220A ±10%（30Ω） 20.8 〜 550A ±10%（12Ω） | ||
| Front time | 0.2 〜 1μs | ||
| Polarity | +/- | ||
| Output impedance | 2Ω ±10% | 1.2/50μs waveform | |
| 40Ω ±10% | 10/700μs waveform | ||
| 12Ω ±20%、30Ω ±20% | RING （selectable) | ||
| Surge generation circuit | Floating | ||
| Minimum charging time | 0.0kV 〜 4.0kV：5 sec 4.1kV 〜 6.7kV：10 sec | 1.2/50μs waveform | |
| 0.0kV 〜 4.0kV：10 sec 4.1kV 〜 6.7kV：15 sec | 10/700μs waveform | ||
| 0.0kV 〜 4.0kV：1 sec 4.1kV 〜 6.6kV：3 sec | RING WAVE | ||
| Communication fuction | RS-232C compliant Optical connector | Optional | |
| External CDN control | ※only for B63A and C63A | ||
| Emergency stop | Push-lock button switch（Test STOP, High voltage OFF, EUT Line switch SHUT OFF) | ||
| Interlock function | External connection status detection | ||
| Emergency lamp | Red LED blinking after start the tests | ||
| Emergency lamp connector | Equiped with emergency lamp connector. Emergency lamp turns on after the test start. | ||
| EUT Fail | ３ports | ||
| Voltage monitor | BNC output、2000V/V ±10％ Accuracy：±10％ vs. actual output | Waveform not guaranteed | |
| Current monitor | BNC output、1000A/V ±10％ Accuracy：±10％ vs. actual output | Waveform not guaranteed | |
| Phase angle control | 0°〜360°±10° | EUT power AC90V Min. 50Hz/60Hz ±10％ | |
| Trigger input | asychronous , synchronized to AC line 0°~360° / 1° step, external input | ||
| Power supply | AC100V 〜 AC240V ±10％ 50Hz / 60Hz ±10％ | ||
| Operational environment | Temperature：15 〜 35℃ Humidity：25 〜 75％RH | ||
| Dimensions | LSS-6330-A20A：(W)430 x (H)349 x (D)530 mm LSS-6330-B63A / LSS-6330-C63A surge generating unit：(W)430 x (H)349 x (D)530 mm | protrusions excluded | |
| Weight | LSS-6330-A20A：approx 50kgs LSS-6330-B63A surge generating unit：approx 40kgs LSS-6330-C63A surge generating unit：approx 35kgs | ||
■ CDN Output Unit LSS-6330-A20A
| Parameter | Specifications | Notes | |
|---|---|---|---|
| Surge Waveform | 1.2/50μs-8/20μs combination,RING WAVE | ||
| 1.2/50μs-8/20μs combination | Open voltage | 0.5kV 〜 6.7kV ±10% | Coupling circuit：18μF Cable length：One side 0.5m Line input side open |
| Front time | 1.2μs ±30％ | ||
| Time to half-value | 50μs ±20％ | ||
| Short-circuited current | 250A 〜 3350A ±10％ | ||
| Front time | 8μs ±20％ | ||
| Time to half-value | 20μs ±20％ | ||
| Open voltage | 0.5kV 〜 6.7kV ±10% | Coupling circuit：10Ω+9μF Cable length：One side 0.5m Line input side open | |
| Front time | 1.2μs ±30％ | ||
| Time to half-value | 50μs +10μs /-25μs | ||
| Short-circuited current | 41.7A 〜 558A ±10％ | ||
| Front time | 2.5μs ±30％ | ||
| Time to half-value | 25μs ±30％ | ||
| RING WAVE | Open voltage | 0.25kV 〜 6.6kV ±10% | Coupling circuit：4.5μF Cable length：One side 0.5m Line input side open |
| Front time | 0.5μs ±30％ | ||
| Frequency | 100kHz ±10% | ||
| Waveform envelop | Pk2 = 40% ＜ Pk1 < 110% Pk3 = 40% ＜ Pk2 < 80% Pk4 = 40% ＜ Pk3 < 80% | ||
| Short-circuited current | 20.8 〜 550A±10% | ||
| Front time | 0.2 〜 1μs | ||
| Power Capacity for EUT line | AC240V/20A MAX 50/60Hz、DC125V/20A MAX | ||
| Decoupling coil | 1.5mH | ||
| Voltage dip | Less than 10% of the rated voltage when the rated current is energized | at the AC CDN unit output terminal | |
| Residual voltage | Less than 15% of the max injected voltage or less than double of the power line rated voltage (peak value) | ||
■ CDN Output Unit LSS-6330-B63A / LSS-6330-C63A
| Parameter | Specifications | Notes | |
|---|---|---|---|
| Surge Waveform | 1.2/50μs-8/20μs combination,RING WAVE | ※RING WAVE only for B63A | |
| 1.2/50μs-8/20μs combination | Open voltage | 0.5kV 〜 6.7kV ±10% | Coupling circuit：18μF Cable length：One side 0.5m Line input side open |
| Front time | 1.2μs ±30％ | ||
| Time to half-value | 50μs ±20％ | ||
| Short-circuited current | 250A 〜 3350A ±10％ | ||
| Front time | 8μs ±20％ | ||
| Time to half-value | 20μs ±20％ | ||
| Open voltage | 0.5kV 〜 6.7kV ±10% | Coupling circuit：10Ω+9μF Cable length：One side 0.5m Line input side open | |
| Front time | 1.2μs ±30％ | ||
| Time to half-value | 50μs +10μs /-25μs | ||
| Short-circuited current | 41.7A 〜 558A ±10％ | ||
| Front time | 2.5μs ±30％ | ||
| Time to half-value | 25μs ±30％ | ||
| RING WAVE | Open voltage | 0.25kV 〜 6.6kV ±10% | Coupling circuit：4.5μF Cable length：One side 0.5m Line input side open |
| Front time | 0.5μs ±30％ | ||
| Frequency | 100kHz ±10% | ||
| Waveform envelop | Pk2 = 40% ＜ Pk1 < 110% Pk3 = 40% ＜ Pk2 < 80% Pk4 = 40% ＜ Pk3 < 80% | ||
| Short-circuited current | 20.8 〜 550A±10%(12Ω) | ||
| Front time | 0.2 〜 1μs | ||
| Power Capacity for EUT line | AC600V/63A MAX 50/60Hz、DC125V/63A MAX | ||
| Decoupling coil | 1.5mH | ||
| Voltage dip | Less than 10% of the rated voltage when the rated current is energized | at the AC CDN unit output terminal | |
| Residual voltage | Less than 15% of the max injected voltage or less than double of the power line rated voltage (peak value) | ||
| Phase angle control | 0°〜360°±10°EUT power supply AC90V min. 50Hz / 60Hz ± 10% | ||
| Power supply | AC100V 〜 AC240V ±10％ 50Hz / 60Hz ±10％ | ||
| Operational environment | Temperature：15 〜 35℃ Humidity：25 〜 75％RH | ||
| Dimensions | (W)430 x (H)695 x (D)686 mm / approx 135kgs | protrusions excluded | |
■ Included Accessories（LSS-6330-A20A）
| Item | Quantity | Notes |
|---|---|---|
| AC cable | 1 | |
| Line output cable | 3 | 1.5m, Plug - M6 |
| FG cable（05-00070A） | 1 | 2m, M6 - M6 |
| Coaxial cable for monitoring（02-00128A） | 1 | 1m, BNC - BNC |
| Interlock connector | 1 | |
| Precheck cable for Surge output terminal | 1 | 1m, plug - plug |
| Precheck cable for Line output terminal | 1 | 1m, plug - plug |
| Line input cable | 1set | 1red, 1black, 1green/yellow |
| Surge output cable | 2 | 1.5m, Plug - Alligator clip |
| Instruction manual | 1 | |
| Accessory bag | 1 |
■ Included Accessories（LSS-6330-B63A / LSS-6330-C63A）
| Item | Quantity | Notes |
|---|---|---|
| AC cable | 2 | |
| Line output cable | 5 | 1.5m, Plug - M6 |
| Surge input cable | 1 | connector cover red & black |
| FG cable（05-00070A） | 2 | 2m, M6 - M6 |
| Coaxial cable for monitoring（02-00128A） | 1 | 1m, BNC - BNC |
| Interlock connector | 1 | |
| Precheck cable for surge output terminal | 1 | 1m, plug - plug |
| Precheck cable for line output terminal | 1 | 1m, plug - plug |
| Interlock cable | 1 | |
| FG connection short bar | 1 | |
| Optical cable | 1 | |
| Line input cable | 1set | 3red, 1black, 1green/yellow |
| Surge output cable | 2 | 1.5m, Plug - Alligator clip |
| Instruction manual | 1 | |
| Accessories bag | 1 |
