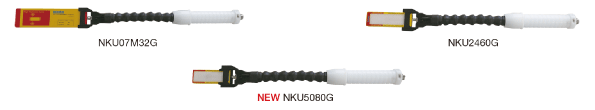

RF Products Broadband Sleeve Antenna MODEL : NKU07M32G/NKU2460G/NKU5080G
Broadband sleeve antenna has been developed for efficient immunity testing against hand-held transmitters and cellular phones. In the conventional strong electromagnetic field immunity test in the near field, it was necessary to replace the antenna according to each frequency, which required a lot of labor and time. These Broadband sleeve antennas is a single antenna solution eliminating the need for antenna changes and dramatically reducing the test time. Furthermore, these antennas with their smallsize and lightweight properties and a flexible handle are suitable for testing in narrow spaces.
Features
Features
read more- Compliant with ISO 11452-9（2021） and ISO 11451-3（2024).
- Tests can also be conducted for the 6GHz band (5.925GHz to 7.125GHz) expanded by Wi-Fi 6E and 7.
- A wide frequency range eliminating the need for antenna changes.
- With a power handling capacity of 20W (10W for NKU2460G/NKU5080G), it is capable of testing strong electromagnetic fields.
- High efficiency due to a low VSWR and high gain.
- Suitable for broadband digital modulation thanks to a good VSWR flatness.
- Small, light-weight and flat antennas easy to use in narrow spaces.
- The flexible antenna handle makes it easy to handle and maneuver during testing.
- Since there is little variation in the near-field distribution for each frequency, it is possible to radiate an electromagnetic field to the EUT without changing the position of the antenna.

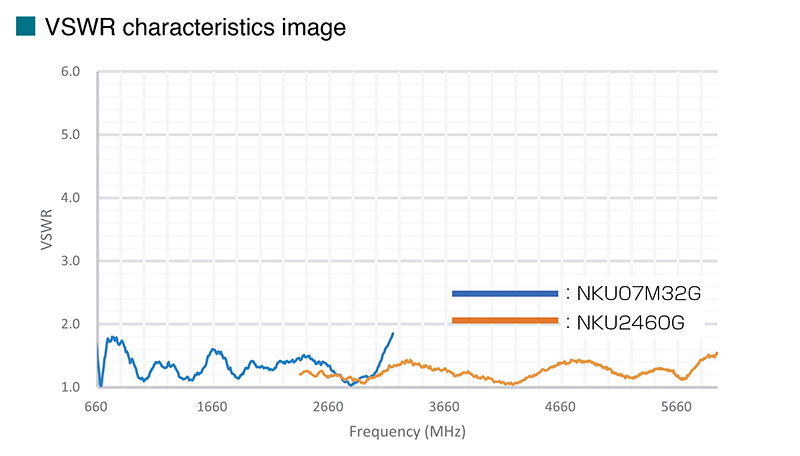

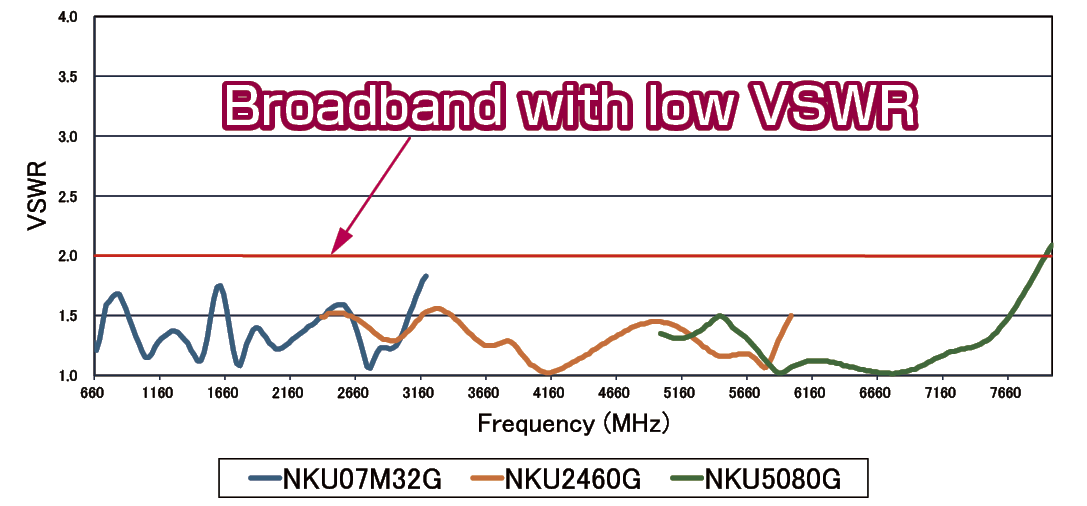

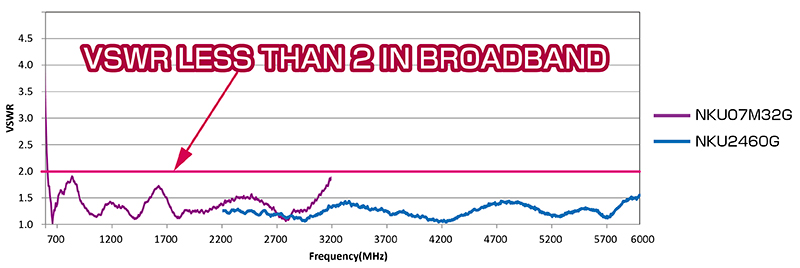

VSWR
read more

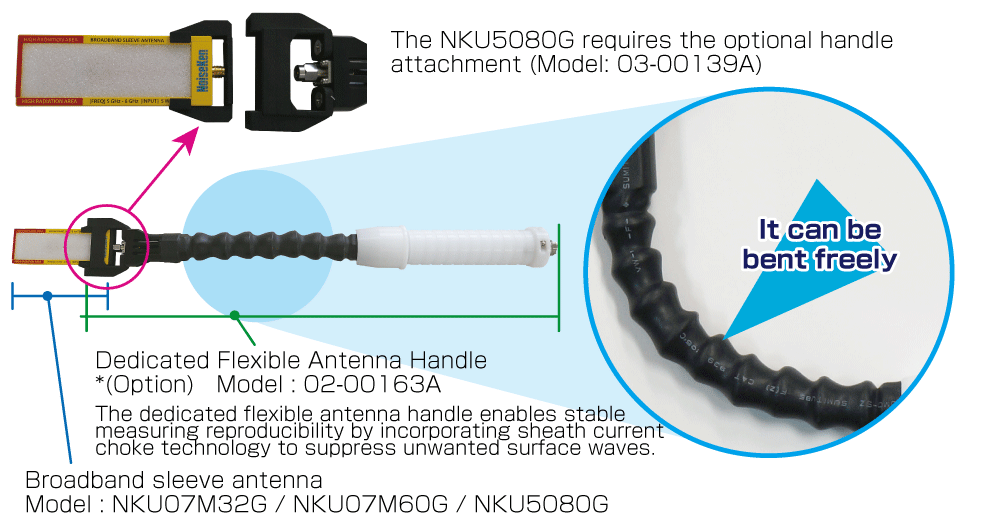

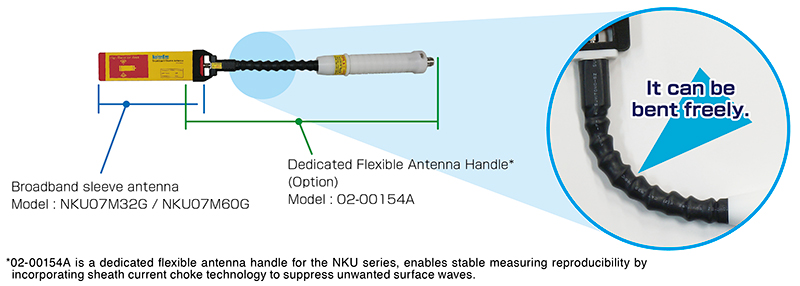

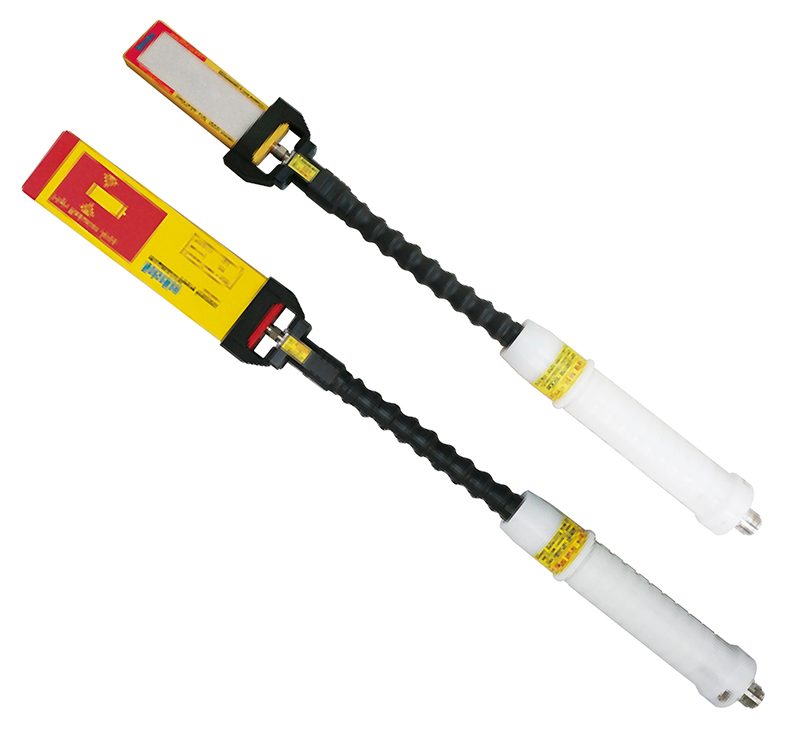

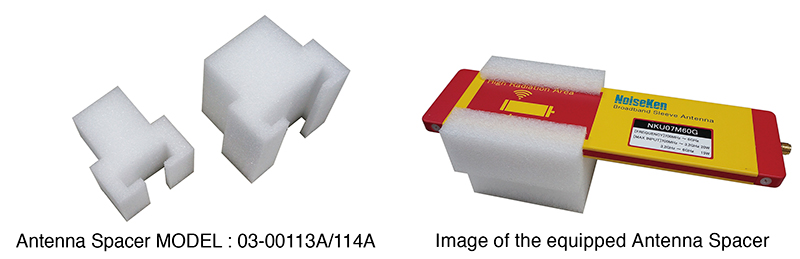

Antenna and Dedicated Flexible Antenna Handle
read more

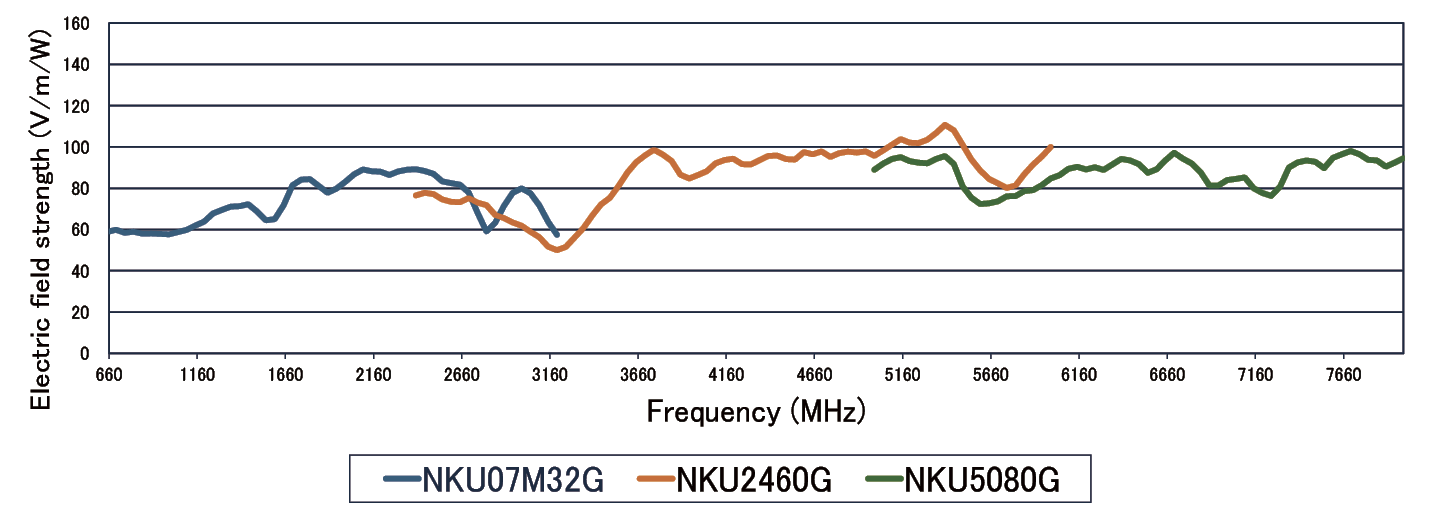

Near field distribution characteristics
read more

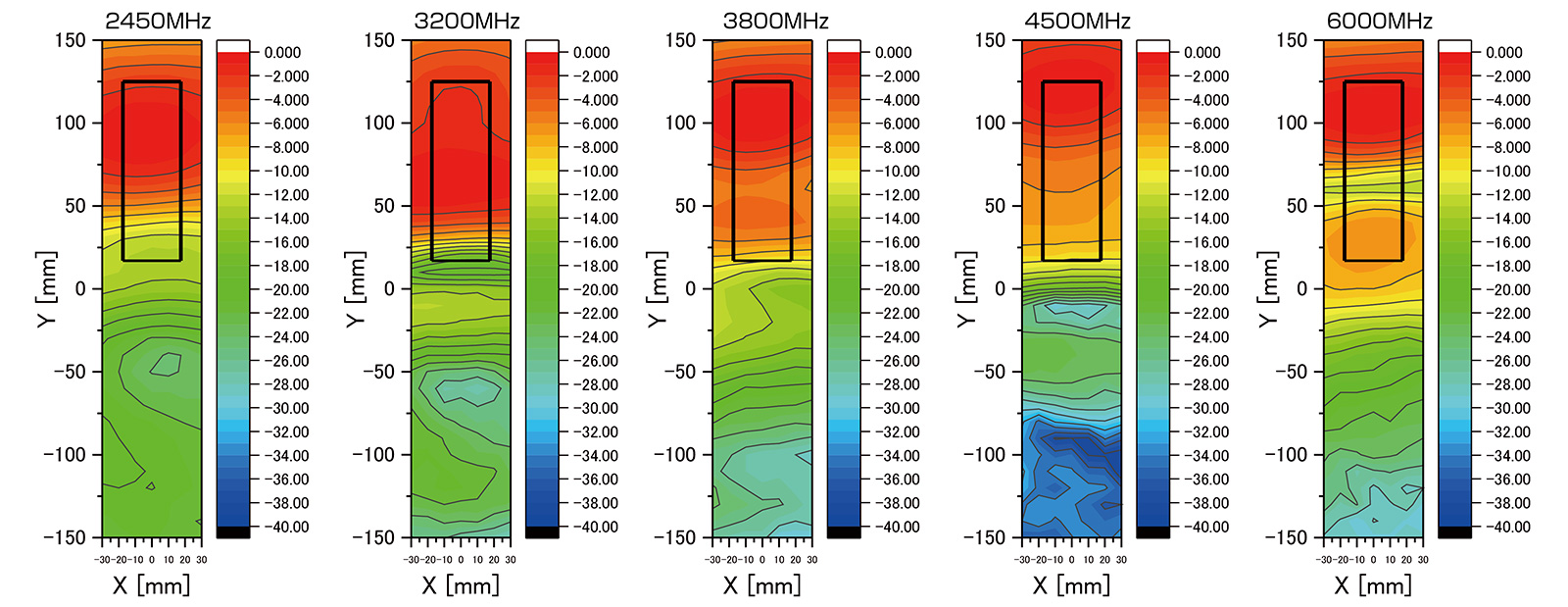

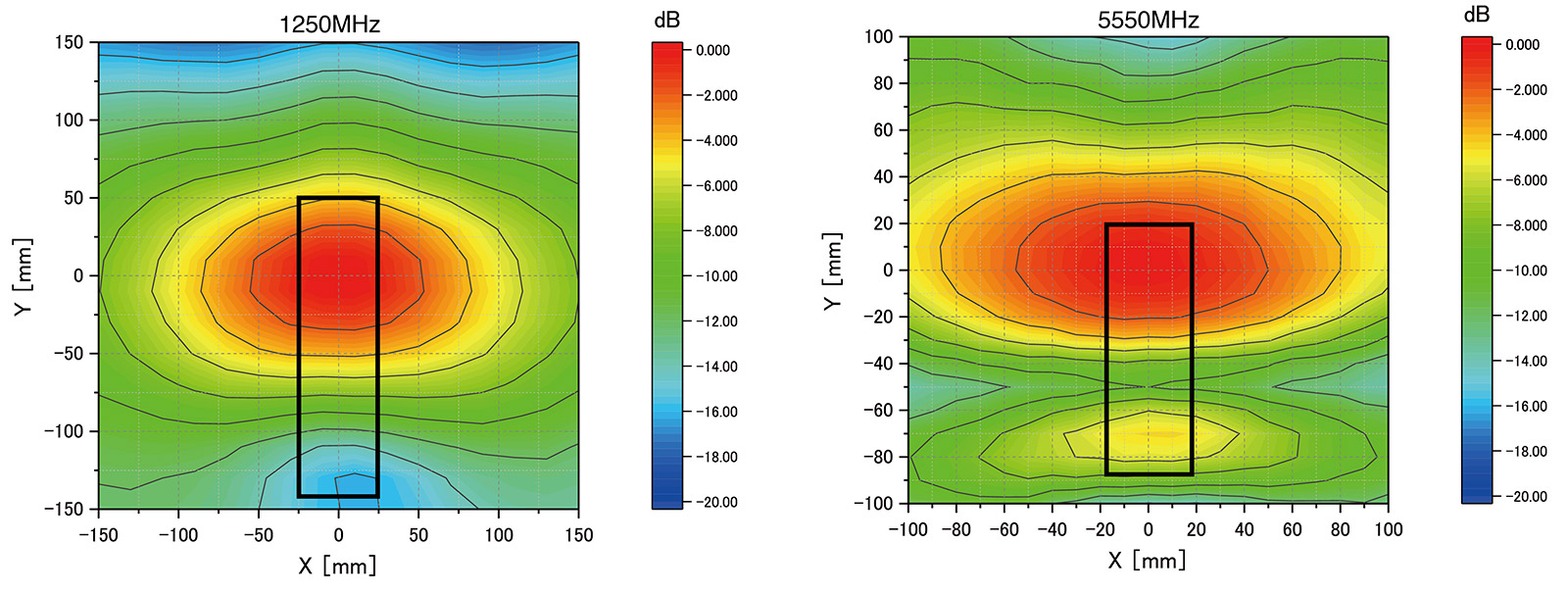

■Near field distribution characteristics (NKU07M32G)
■Near field distribution characteristics (NKU2460G)

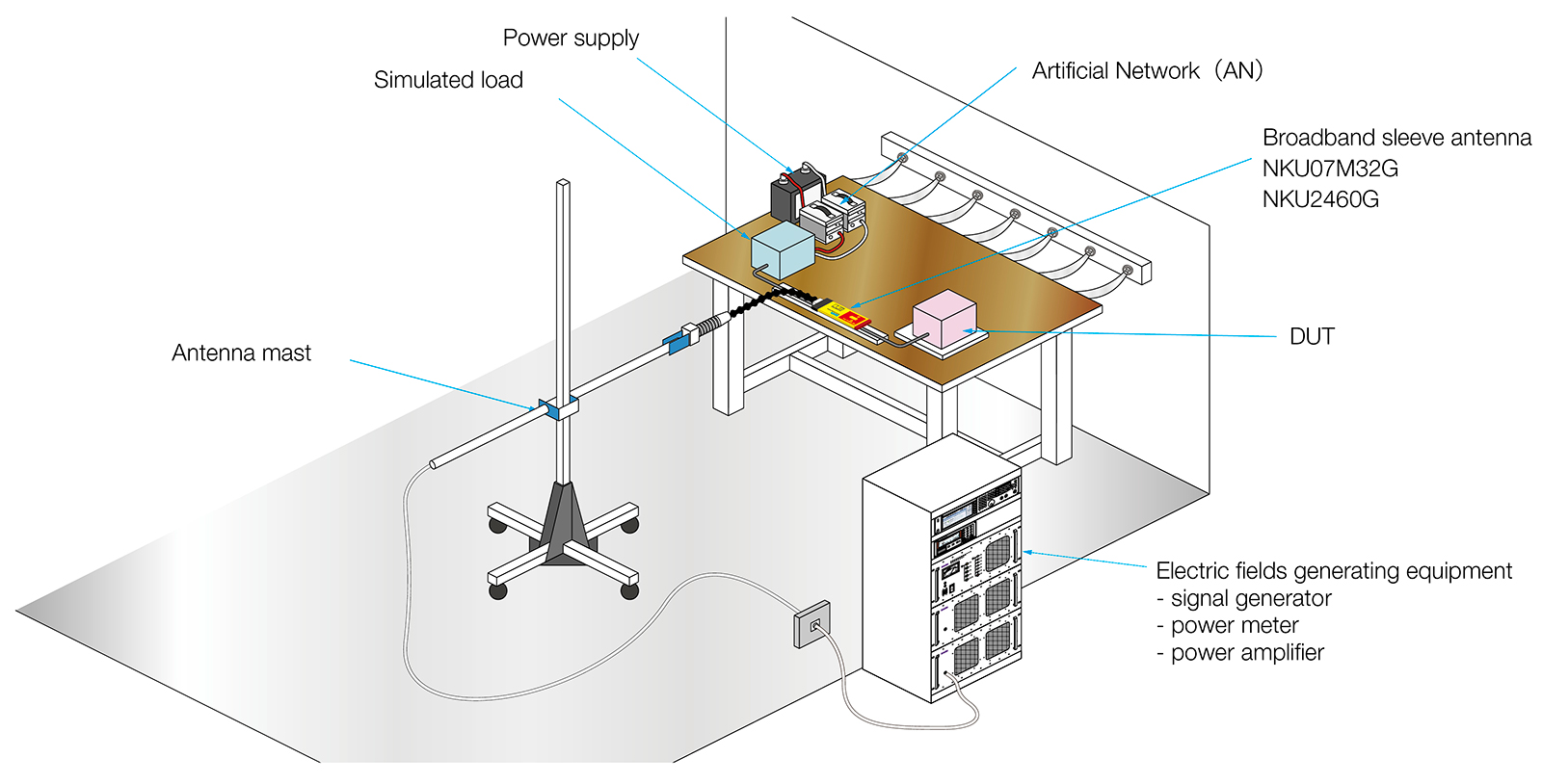

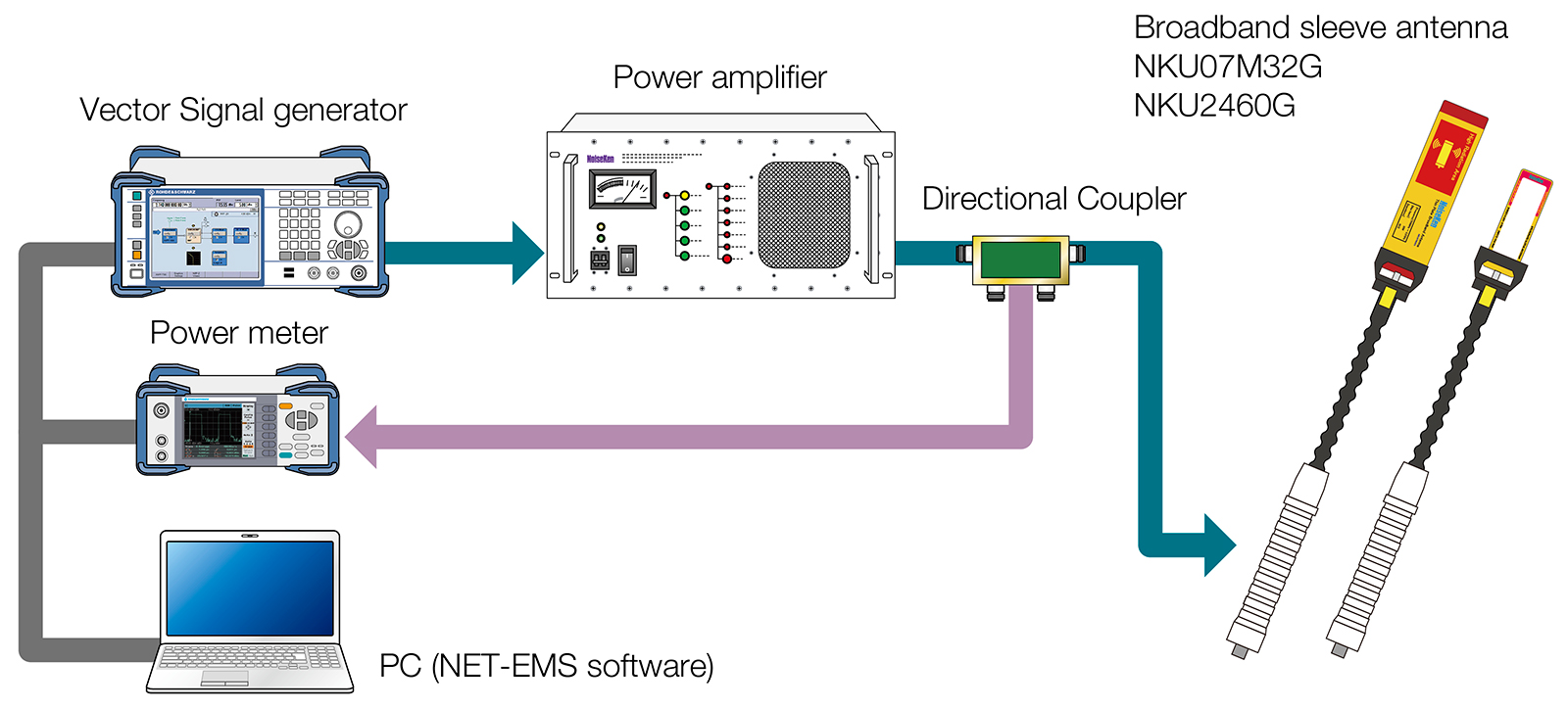

System configuration example
read more
Testing Image
read more

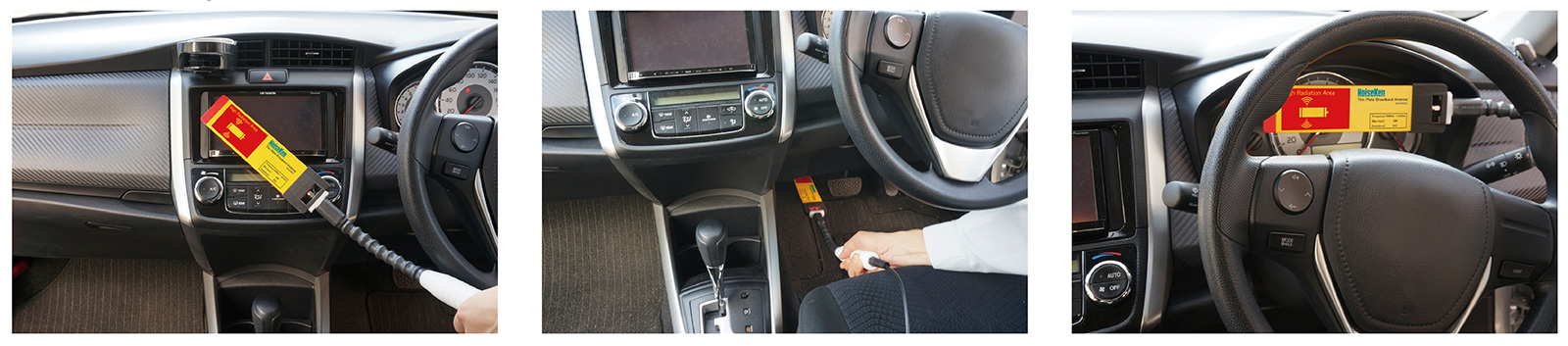

■In-vehicle testing
■Testing for automotive electronics
Calibration services available
read more
Calibration services are available for VSWR, electric field distribution and proximity gain characteristics of the Broadband Sleeve Antenna
(NKU07M32G, NKU2460G,NKU5080G). In ISO 11452-9 standard the calibration of electric field is not specified, and testing level is set
in accordance with input power to the transmitting antenna. The calibration allows to confirm proper functions of the transmitting antenna,
which is necessary to ensure the quality of the testing. In addition, the electric field distribution and proximity gain characteristics allow to

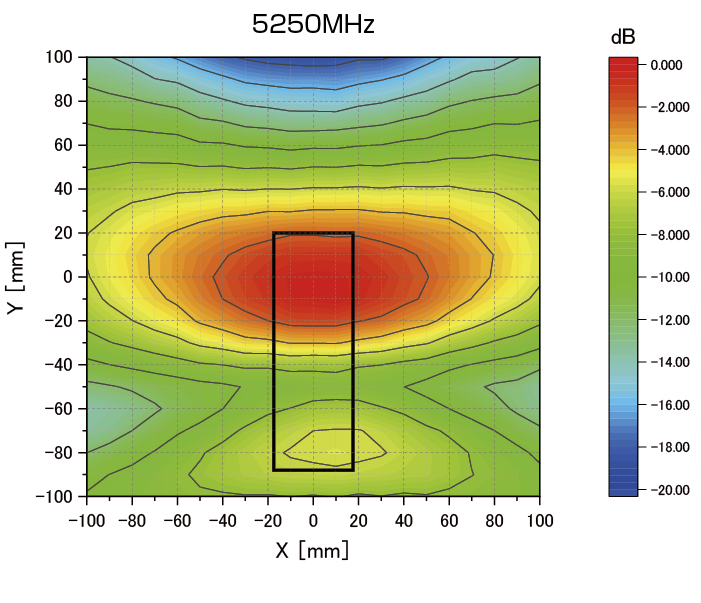

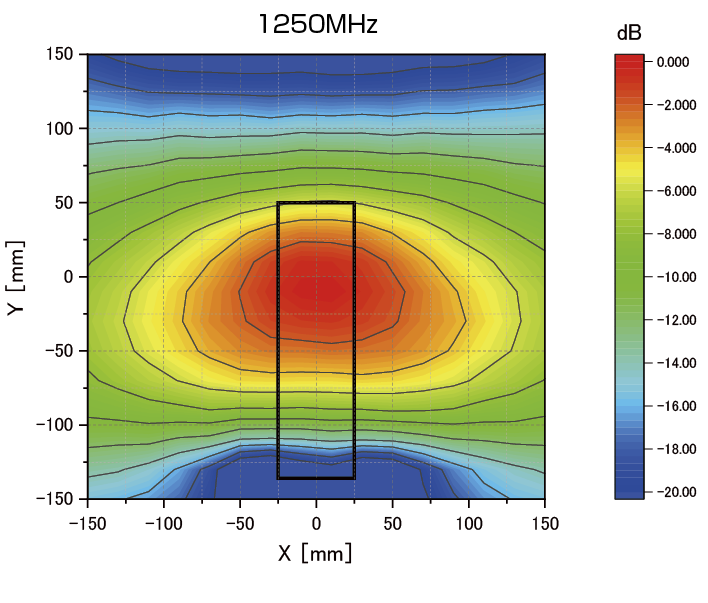

confirm the position and strength of strong radiation from the Antenna.■ Image of Electric Field Distribution Characteristics

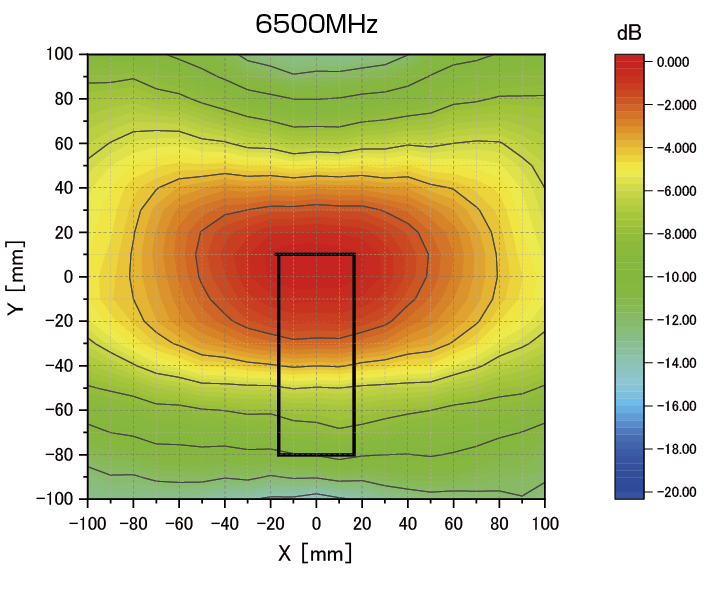

【Distribution map conditions】

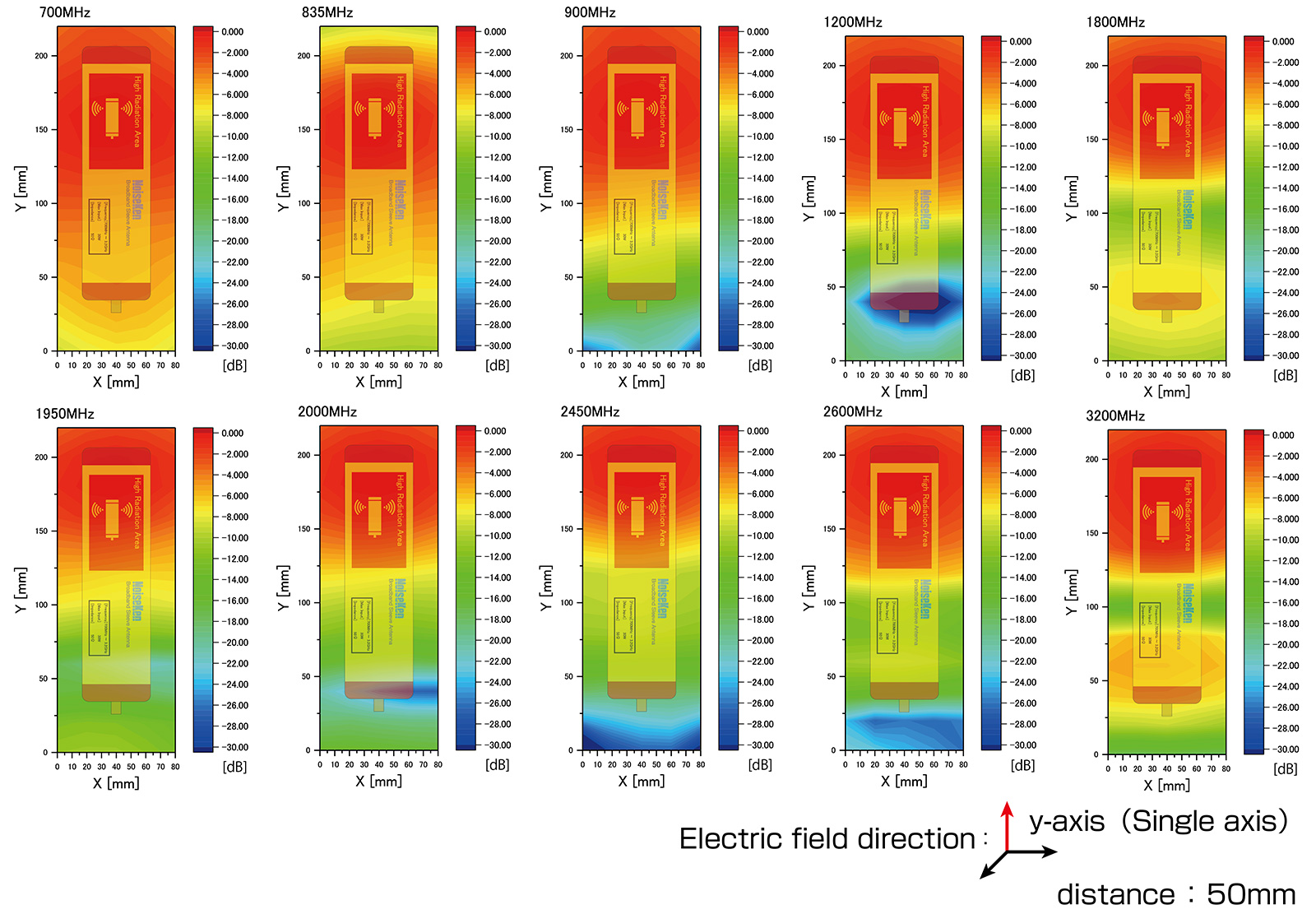

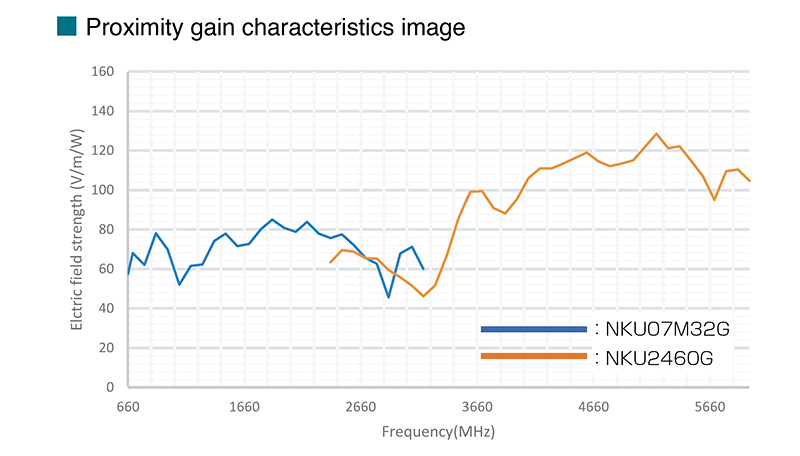

● 1-axis electric field ● Measurement distance: 50 mm from the antenna ● Contour line interval : 2dB / Line■ Image of Electric Field Strength Characteristics
【Conditions for Acquiring Electric Field Strength】
● 1-axis electric field ● Measurement distance: 50 mm from the antenna
● Measurement position coordinates (X : Y): NKU07M32G (0 : 10), NKU2460G (0 : 0),NKU5080G (0 : 0) ● Antenna input: 1W
ポップアップタイトル
closeSpecifications
| Parameter | NKU07M32G specifications | NKU2460G specifications | NKU5080G specifications |
|---|---|---|---|
| Frequency range | (660) 700 MHz 〜 3.2 GHz | 2.4 GHz 〜 6 GHz | 5 GHz 〜 8 GHz |
| VSWR | ≦ 2 | ～ 7.5GHz：≦ 2.0 7.5GHz ～：≦ 2.5 | |
| Maximum power input | 20 W (continuous) | 10 W (continuous) | |
| Input impedance | 50 Ω | ||
| Connector | SMA (J) *antenna part only | ||
| Dimensions | W50mm x D8mm x H186 mm (protrusions excluded) | W35mm x D10mm x H108 mm (protrusions excluded) | W33mm x D90mm x H9.5 mm (protrusions excluded) |
| Weight | 73.5g | 20 g | 14g |
Contact
Repair, Inspection and Calibration
Customer Service CenterNew Purchase Consultation, Materials Request
Product Inquiry Form

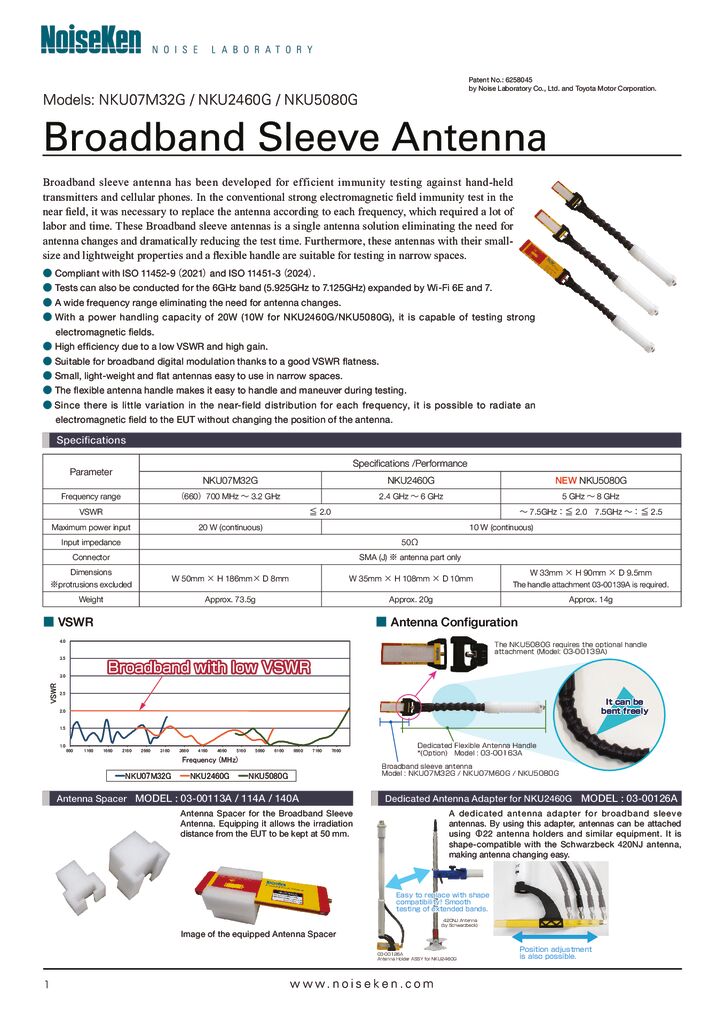

Catalogs and Technical Materials
Related Products
-
EMC Testing in the 5G/IoT Era!
The TEM horn antenna is an antenna for conducting a close proximity radiation immunity evaluation test (near electromagnetic field immunity test) of electromagnetic waves radiated from various wireless transmitters such as mobile phones and Wi-Fi equipment.
In the future, the close proximity radiation immunity evaluation test using the TEM horn antenna is expected to expand to various product standards such as medical equipment (IEC 60601-1-2) and multimedia equipment (CISPR 35).
NoiseKen's TEM horn antenna has a wide band, low VSWR, and wide electric field uniformity, offering an ideal solution for an efficient close proximity radiation immunity test.
*This product is based on research results of the National Institute of Information and Communications Technology (NICT), Japan and joint-research with Noise Laboratory Co., Ltd. -

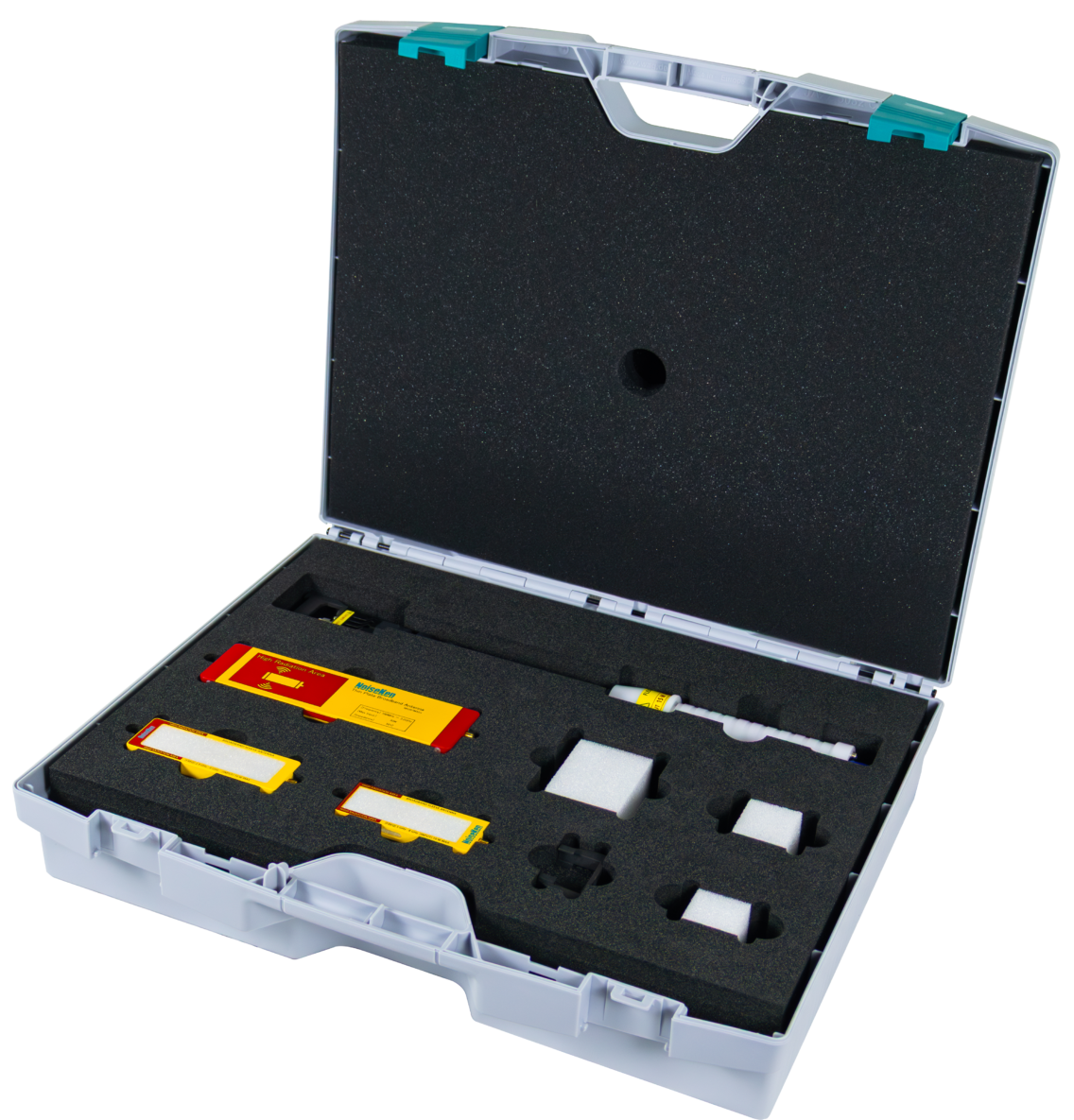

This is a storage case designed specifically for broadband sleeve antennas.
*This is an example of storage. Only the case itself is included; other items shown are not included.
