Emission Measurement Equipment (EPS) Spatial Magnetic Field Visualization System (low frequency magnetic field) EPS-02EMFv2 / EPS-02Hv2

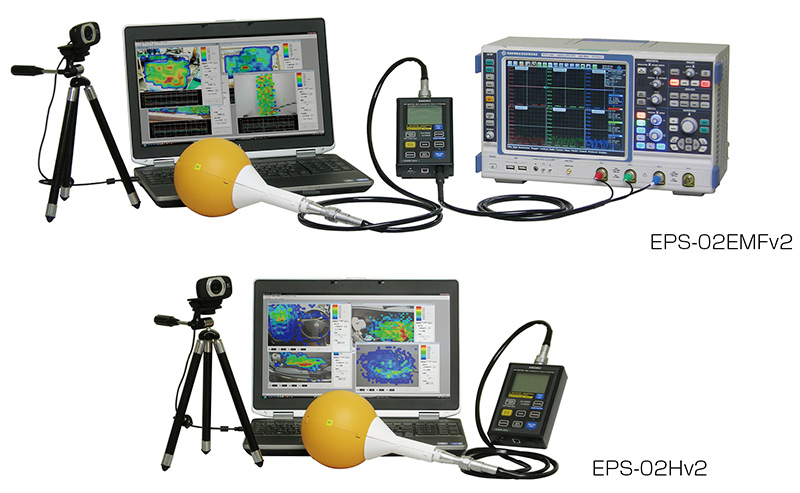

EPS-02EMFv2 can save the frequency data of the measured magnetic field, so you can easily identify the countermeasure points.
EPS-02Hv2 can directly read and visualize the data from the magnetic field sensor measurement part. It is very compact and easy to carry, and is convenient for on-site measurement.
Features
- The direction of the magnetic field can be determined by acquiring data on the X, Y, Z axes and the combined effective values of the three axes.
- Measurements required by ICNIRP 2010, IEC 62233 and JIS TS C 0044 can be performed.
Specifications
■Specifications
Model EPS-02EMFv2 EPS-02Hv2 Frequency Range 10Hz〜400kHz 10Hz〜400kHz、 10Hz〜2kHz、 2kHz〜400kHz Frequency selection available not available Measurement mode magnetic field Magnetic field (magnetic flux density) / exposure level Measurement unit dBμV、dBm T、G、A/m、％ Measured axis X、Y、Z X、Y、Z、combined effective values Data recording method Single／Free Run／Max Hold／Peak Hold※ Peak Hold Auxiliary functions Save / load / export / comment input Compatible OS Microsoft® Windows® 10 / 11（English or Japanese ver.） *Max Peak Data: Displays the trace data with the largest peak value from the trace data measured at each measurement point.
■System
Model EPS-02EMFv2 EPS-02Hv2 System configuration Magnetic field measuring instrument (FT3470-91/92: manufactured by Hioki Electric Co., Ltd.), oscilloscope

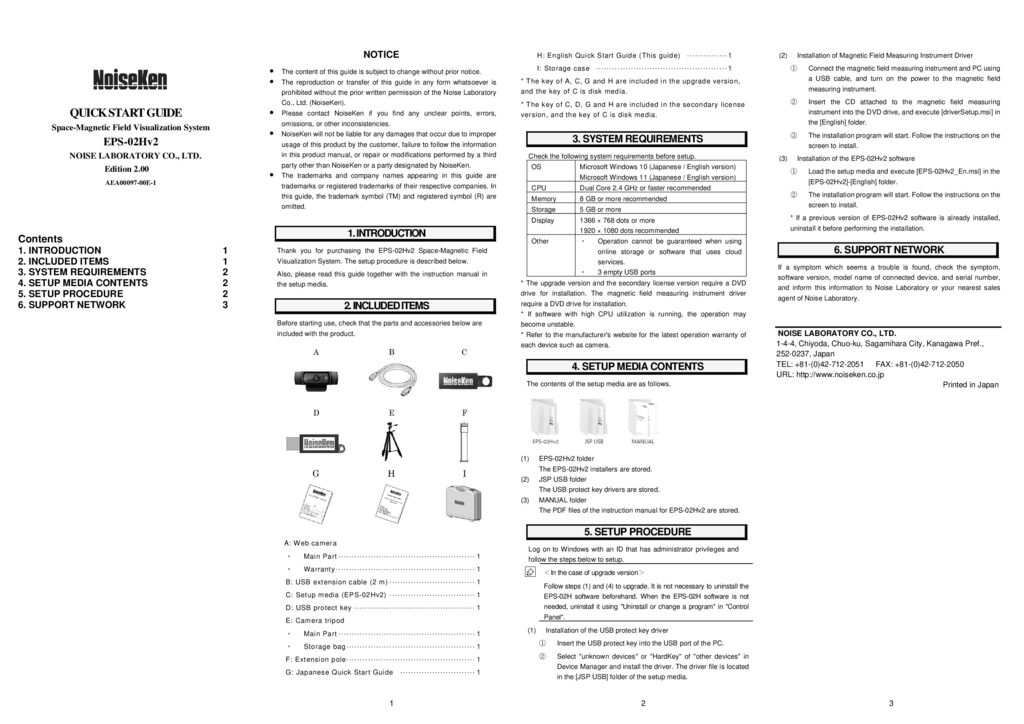

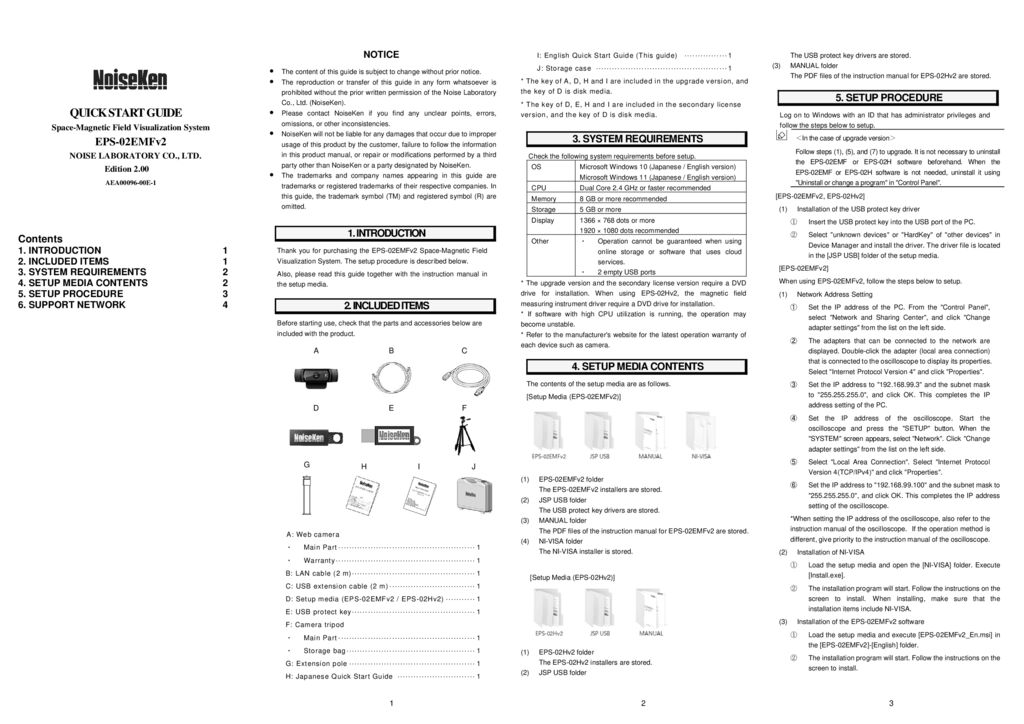

(RTO2004-NSL or RTO6: manufactured by Rohde & Schwarz Japan Ltd.), control PC, probe extension cable 5m (dedicated cable)Magnetic field measuring instrument (FT3470-91/92): manufactured by Hioki Electric Co., Ltd.), control PC, 5m probe extension cable (dedicated cable) * FT3470-91 / 92 and RTO2004-NSL are specifically adjusted for this system, and their specifications differ from that of general products. Accessories Web camera, camera tripod, USB extension cable for camera (2m), extension pole, LAN cable (2m) *EPS-02EMFv2, setup media (software)* EPS-02EMFv2 includes EPS-02Hv2, USB protection key and the quick start guide * Please contact us for the recommended PC system requirements.
Contact
Repair, Inspection and Calibration
Customer Service CenterNew Purchase Consultation, Materials Request
Product Inquiry Form
Related Products
-
RSA306B can be used as standard for EPS-02EV3. -
Three-Dimensional Indication (Time, Frequency, Amplitude) Simplifies EMC/EMI Debugging
EPS is a EMC/EMI debugging tool enabling designers to rapidly perform pre-measurement, failure point identification, and improvement efficiency confirmation in EMC/EMI countermeasure process of product design.
How does it work? The software detects locations of probes by color discrimination through camera’s image sensors*, real time analysis measured signal frequency, shows a heat map by overlapping electromagnetic field strength and real images of measured objects.
*location detection method based on Patent Application 2007-223275 by National University Corporation Kanazawa University and Patent 5205547 by Noise Laboratory Co,. Ltd.
