Fast Transient Burst Simulator(FNS) Noise Injection Probe MODEL: 01-00034A

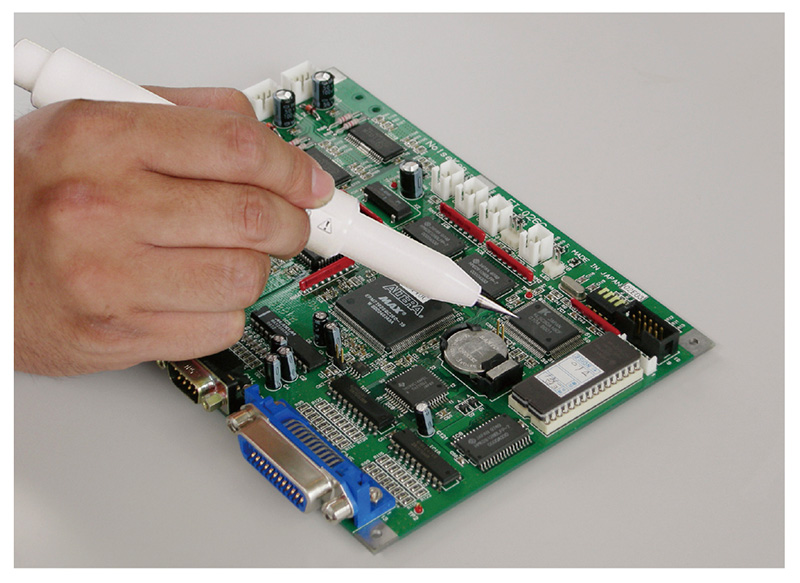

○Direct noise injection on a LSI pin makes the board level noise tolerance testing possible.
○Maximum injection voltage up to 500 V.

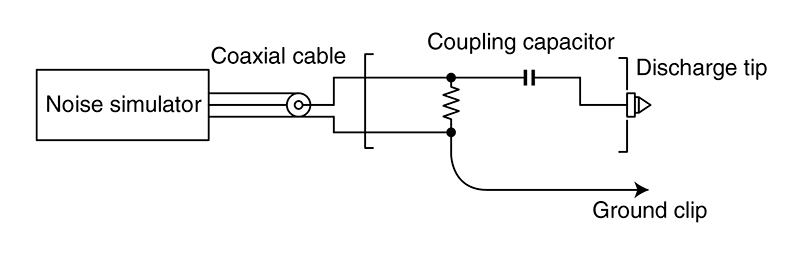

○Optional coupling capacitor available (Option)

Noise Injection Probe MODEL: 01-00034A product image

EMC Testing

Features

[Options]

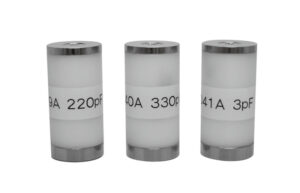

Coupling capacitors：
06-00039A : 220 pF
06-00040A : 330 pF
06-00041A : 3 pF
06-00042A : 500 pF

Noise Injection Probe MODEL: 01-00034A

Contact

Fast Transient Burst Simulator(FNS) Options

Main Unit Options

Coupling unit (DC600V / 200A for high power capacity)

This tester can be combined with the Fast transient / burst simulator to do the noise coupling test on 3 wires (+ /-/ PE) up to DC600V / 200A.
In combination with FNS-AX4, it is possible to test by switching the discharged phase or setting the sweep discharged phase.
It is possible to evaluate the burst noise immunity when charging EV / PHV vehicles, which is required with ECE R10-05 / 05. (Supports CHAdeMO)

※When using this coupling unit, it needs to modify the tester. For details, please contact us.

Applicable product: FNS-AX4 series
Coupling Fixture for High Frequency Surge Test

Coupling fixture provided to inject noise to harness in combination with Fast Transient Burst simulator.
The varieties of coupling capacity are lined up. Please contact us for details.
Warning Lamp MODEL : 11-00008B

Alarm lamp for FNS-AX4 series. Alarm lamp illuminated when high voltage is generated at the time of test.
Optical USB module MODEL : 07-00022A

Conversion adapter to interface with PC for the remote control of FNS
USB to optical interface. Fiber cable 5m included.
High power Coupling Decoupling Network

High power Coupling Decoupling Network (CDN) can be provided for customers’ requirements.
Please consult with us for details.
Coupling Adaptor MODEL:15-00007A (CA-806)

15-00007A (CA-806) makes testing for noise tolerance possible by just clamping interconnection cable of electrical equipment in combination with FNS series.
Tri-color pilot light MODEL:11-00015A

The light is for FNS-AX4 series. Three colors indicate corresponding simulator's test status change.
Coupling Adaptor MODEL:CA-805B

CA-805B makes testing for noise tolerance possible by just clamping interconnection cable of electrical equipment in combination with FNS series.
Coupling Clamp MODEL:15-00018A

Coupling clamp for capacitive coupling test on interconnection lines complying to IEC61000-4-4 Ed.3. In addition, calibration fixture for coupling clamp is available.
Coupling Clamp MODEL:15-00012A

Coupling clamp for capacitive coupling test on interconnection lines complying to IEC61000-4-4 Ed.3. In addition, calibration fixture for coupling clamp is available.
Radiation Probes MODELS:01-00006A/7A/8A/9A/10A/31A/50A

Probes for irradiation of noise at wiring on PCB of electronic equipment. Weak noise tolerance points can be detected using the probe.
EMS Probes Kit MODEL : H2-B

Probes kit to enable the noise injection onto PCB patterns, flat cables, etc. The probes can be selected to use for either electric fields or magnetic fields in order to irradiate in the near field.
SG terminal connection plate

A metal plate that connects the tester body SG and the ground plane.
Since it doesn't need to screw it to the ground plane, it is easy to move the tester.
Normal mode coupling balun MODEL:15-00013A

The product allows injection of test voltage on EUT with Normal mode.
5 kV Max.
OUTLET BOX (terminal block type)

OUTLET BOX converts LINE output socket.
OUTLET BOX MODEL:18-00081A/82A/83A

OUTLET BOX converts LINE output socket.
