This unit can be combined with the main Impulse Noise tester to perform noise superposition tests on the EUT (Equipment Under Test) line up to DC 65 V / 20 A.
The superposition mode for line-to-line testing (Normal Mode) and line-to-ground testing (Common Mode) can be easily switched by simply swapping connectors.
(Coupling Capacitors: 0.2μF/ 470pF)

It is a probe for injecting noise directly to any place by combining with impulse noise tester and damped vibration wave tester.
You can test the high frequency surge resistance (burst waveform) and high frequency surge resistance (impulse waveform) of in-vehicle electronic parts.
Used in combination with a coil for decoupling.

This cable is used for direct noise injection in combination with an Impulse Noise Simulator.
* It cannot be used for applying current to places where current flows, such as power lines.

INS-S series RemoteW（Model：14-00069A）is a dedicated software for remote control of INS-S420 or INS-S420 & IJ-AT450.
Using this software, you can set the application mode as well as test parameters such as pulse output voltage, pulse width, phase angle and repetition period. Test conditions can be controlled in sequences, which contributes to reducing the test time and man-hours.

Voltage divider enabling low voltage test by dividing and outputting high voltage pulses at a ratio of 4:1.

Connection adapter used for remotely controlling the simulator from a PC.Equipped with USB-Optical conversion fiber cables 5m x 4 (ch)

The connection cable between noise impulse simulator and noise canceller transformer on primary winding.
Please inquiry us for details.

The connection cable between noise impulse simulator and noise canceller transformer on primary winding.
Please inquiry us for details.

Connection adapter used for remotely controlling the simulator from a PC.
Equipped with USB-Optical conversion fiber optic cable (5m)

Automatic CDN for Impulse Noise Simulator (Model:IJ-AT450) is a superposition unit allowing testing to 3-phase AC lines and high-voltage DC lines by combining with the Impulse Noise Simulator. By performing remote control from Windows PC using dedicated software, the tester can automatically perform the test such as setting of voltages and applied phase, as well as sequence control.

Unit allowing noise injection to power supply lines of EUT up to AC480V / 100A 3-phase 5 lines (L1, L2, L3, N, PE) in combination with main units of INS series. In case of the combination with INS-4020 / 4040 / S220, test synchronized with EUT lines can be conducted.

Unit allowing noise injection to power supply lines of EUT up to 3-phase 5 lines (L1, L2, L3, N, PE) in combination with main units of INS series. Setting for Normal mode and Common mode is simple and easy with change of the connectors configurations.
In case of the combination with INS-4020 / 4040 / S220, test synchronized with EUT lines can be conducted.

Outlet panel for converting the line output connector IJ-AT450.

Outlet panel to be available for different types of connectors in line output of INS-S220 / S420.

A unit for directly applying the pulse output of the Impulse Noise Simulator without passing through the simulator's internal CDN. A coupling capacitor same with the CDN is built-in.

A breaker box allowing to cut off the line between the Simulator and the power supply side by using it in combination with the INS-S220/S420/IJ-4050/AT450.* Connection requires processing of the connection cable. Contact us for more details.

Allows noise application combined with an Impulse Noise Simulator by simply inserting a cable of an electronic device. Calibration fixture (15-00015A) for this clamp is also available.

Allows noise application combined with an Impulse Noise Simulator by simply inserting a cable of an electronic device.

These probes, in combination with Impulse Noise Simulator allows to emit electromagnetic field radiation noise
to the wiring of PCB inside electronic equipment, and is used to search for areas vulnerable to radiation noise.

A probe for injecting noise directly into the pattern and parts of the printed circuit board.
*Input pulse repetition period: 10 ms or more

Probes for noise injection onto PCB patterns and flat cables using the Impulse Noise Simulator.
By choosing different probes, it is possible to separate the electric field/magnetic field and perform near field irradiation.
* Max. pulse voltage: 1kV, max. pulse width: 50ns, fastest repetition period: 10 ms)

Used for floating EUT 10cm above the ground plane in case of testing to floor-standing EUTs.

Size : (W)1200 x (D)1200 x (H)100mm
Material : Wooden
Withstanding loads : 500kg

Used for floating EUT 10cm above the ground plane in case of testing to floor-standing EUTs.

Size : (W)100 x (D)100 x (H)100mm
Material : Wood
Withstanding load: 500kg

Model TF-6633P is three-phase isolation transformer rated AC 600 V / 63 A and dielectric strength of 4 kV. For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

Model TF-6503P is three-phase isolation transformer rated AC 600 V / 50 A and dielectric strength of 4 kV. For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

Model TF-2302P is a single-phase isolation transformer rated AC240V/30A with dielectric strength of 4kV.
For safety reasons, an isolation transformer is indispensable for AC powered testing for equipment.

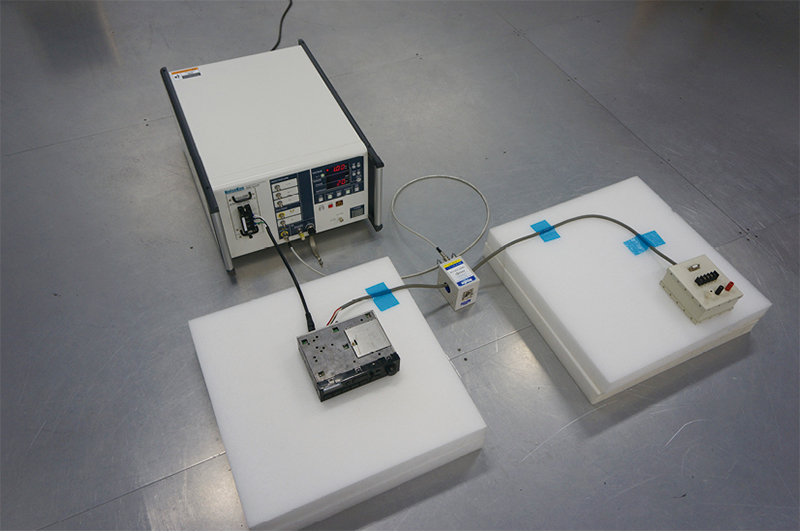

Blocks to float (isolate) wirings of EUT fromGRP.
(W)300 x (D)300 x (H)50mm, 5 pcs. in 1 set

Material: Polyethylene foam

These series have excellent attenuation characteristics for impulse noises.
Used for line input insulation during impulse noise testing.

Braided wire cable to connect between SG terminal of the main unit and the ground reference plane.

Length : 0.1m

Metal plate connecting simulator's SG and ground plane.
Screw attaching to the Ground Plane is not required
contributing to simulator's mobility.
*for INS-S220/S420

Attenuator for measuring high voltage pulse.

Attenuator for protecting measuring instruments.
It is recommend to use this attenuator when using the waveform checking attenuator (00-00017A) to protect measuring instrument.

Attenuating rate 20dB, N type connector
INS-S220/S420 → coaxial cable → 00-00017A → 0000011A → coaxial cable → oscilloscope
